Description
The LM6132BIN/NOPB is a dual low power Operational Amplifier with rail-to-rail input and output. It provides new levels of speed vs. power performance in applications where low voltage supplies or power limitations previously made compromise necessary. With only 360µA/amplifier supply current, the 10MHz gain-bandwidth of this device supports new portable applications where higher power devices unacceptably drain battery life. It can be driven by voltages that exceed both power supply rails, thus eliminating concerns over exceeding the common-mode voltage range. The rail-to-rail output swing capability provides the maximum possible dynamic range at the output. This is particularly important when operating on low supply voltages. It can also drive large capacitive loads without oscillating. Operating on supplies from 2.7V to over 24V, it is excellent for a very wide range of applications, from battery operated systems with large bandwidth requirements to high speed instrumentation.
- -0.25 to 5.25V Rail-to-rail input CMVR
- 0.01 to 4.99V Rail-to-rail output swing
- 360µA/amplifier Low supply current
- 100dB CMRR
- 100dB with RL=10k Gain
- 82dB PSRR
- Green product and no Sb/Br
Portable Devices, Sensing & Instrumentation, Wireless
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LM6132BIN/NOPB |
| Quantity | Each |

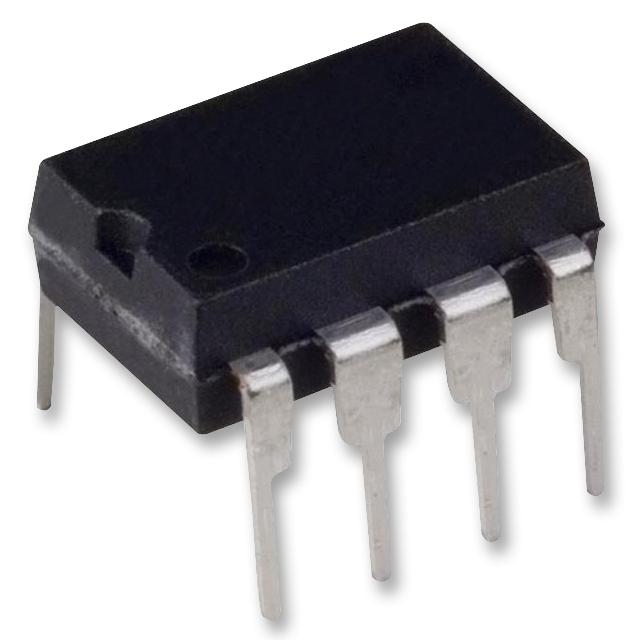

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
