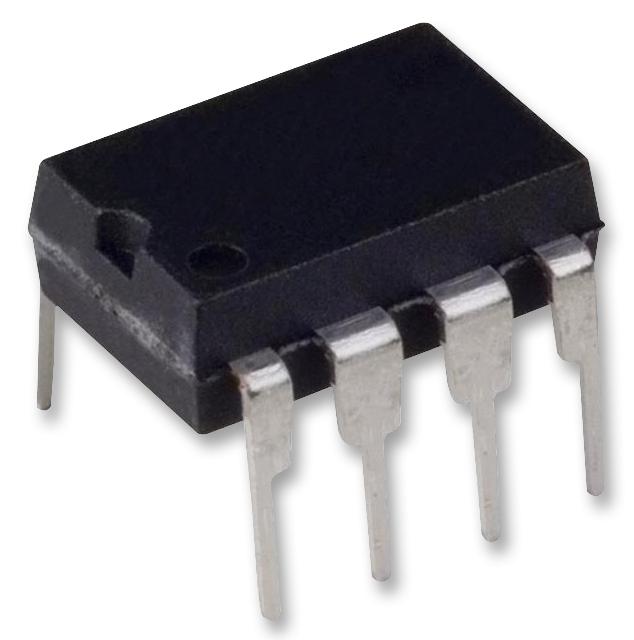

Texas Instruments LM2903P Analogue Comparator General Purpose 2 Comparators 300 ns 2V to 36V DIP 8 Pins

The LM2903P is a Dual Differential Comparator designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 to 36V and VCC is at least 1.5V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

• Low supply-current drain independent of supply voltage - 0.4mA per comparator
• Common-mode input voltage range includes ground
• ±36V Differential input voltage range equal to maximum-rated supply voltage
• Low output saturation voltage
• Output compatible with TTL, MOS and CMOS

Applications

Automation & Process Control, Sensing & Instrumentation, Computers & Computer Peripherals, Motor Drive & Control, Consumer Electronics

Other details

Brand	TEXAS INSTRUMENTS
Part Number	LM2903P
Quantity	Each
