| ₹ 201.22 includes GST and import duties. | |
| B2B customers can avail ₹ 30.69 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview
TSZ151IYLT is a single operational amplifier featuring very low offset voltages with virtually zero-drift versus temperature changes. The TSZ151 offers rail-to-rail input and output, an excellent speed/power consumption ratio, and 1.6MHz gain bandwidth product, while consuming just 210µA at 5V. This device also features an ultra-low input bias current. These features make the TSZ151 ideal for high-accuracy sensor interfaces. Applications include high accuracy signal conditioning, automotive current measurement and sensors signal conditioning.
- Higher accuracy without calibration, accuracy is virtually unaffected by temperature change
- Rail-to-rail input and output, low supply voltage range from 1.8 to 5.5V
- Input offset voltage is 1µV typical at (T = 25°C)
- Input bias current is 50pA typical at (T = 25°C)
- Input offset current is 100pA typical at (T = 25°C)
- Gain bandwidth product is 1.6MHz typical at (CL = 100pF)
- Input voltage noise density is 27nV/?Hz typical at (f = 1KHz)
- Supply current (by operational amplifier) is 210µA typical at (T = 25°C)
- Open loop gain is 135dB typical at (VCC-+200mV ? VOUT ? VCC+-200mV, RL = 10Kohm, T = 25°C)

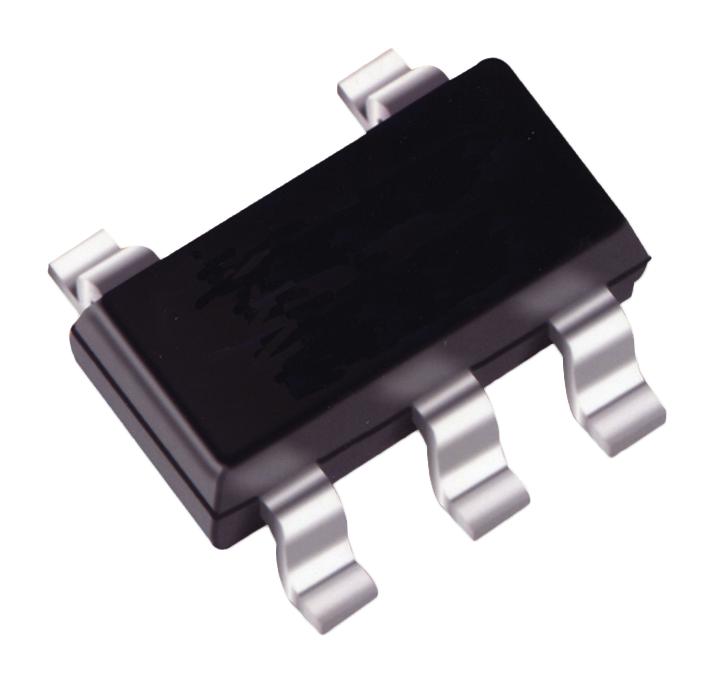

- Operating free-air temperature range from -40 to 125°C, SOT23-5 package
Product details
Other details
| Brand | STMICROELECTRONICS |
| Part Number | TSZ151IYLT |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 197.2 |
| 3-5 | ₹ 195.18 |
| 5-10 | ₹ 191.16 |
| 10+ | ₹ 187.13 |
Bulk discount will be automatically applied during checkout based on quantity.
