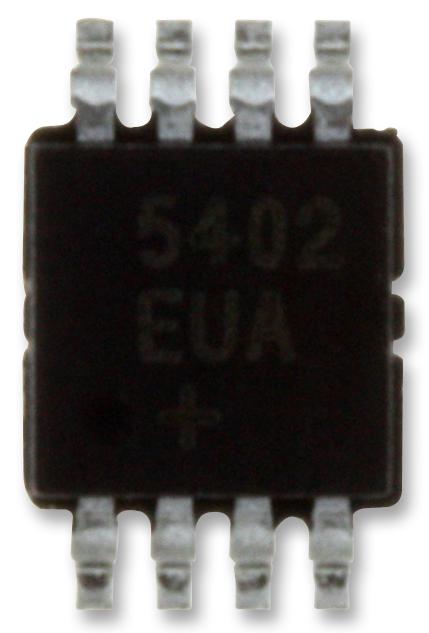

ANALOG DEVICES MAX976EUA+ Analogue Comparator, Rail to Rail, High Speed, 2 Channels, 20 ns, 2.7V to 5.5V, µMAX, 8 Pins

The MAX976EUA+ is a single supply, high speed, low power dual comparator in 8 pin µMAX package. This comparator is optimized for +3V/+5V single supply applications, it achieve a 20ns propagation delay while consuming only 225µA supply current per comparator. Device inputs have a common mode voltage range that extends 200mV below ground and outputs are capable of rail to rail operation without external pull-up circuitry, making device ideal for interface with CMOS/TTL logic. All inputs and outputs can tolerate a continuous short circuit fault condition to either rail. The comparator's internal hysteresis ensures clean output switching even with slow moving input signals.

• Supply voltage range is 2.7V to 5.5V
• Operating temperature range from -40°C to 85°C
• Shutdown supply current is 1nA
• Rail to rail outputs (push/pull output structure)
• Ground sensing inputs
• Common mode rejection ratio is 95dB
• Output rise/fall time is 1.6ns
• Power-up delay is 3µs

Applications

Signal Processing, Industrial, Portable Devices, Communications & Networking
