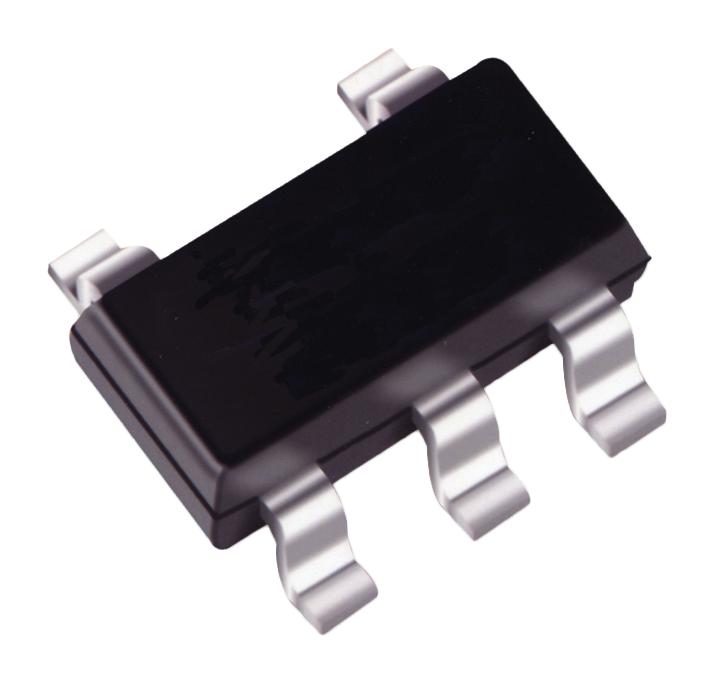

ANALOG DEVICES MAX4104EUK+T Operational Amplifier, Ultra High Speed, 1 Channels, 625 MHz, 400 V/µs, ± 3.5V to ± 5.5V, SOT-23

MAX4104 is a 625MHz, low-noise, low-distortion op-amp. It features ultra-high speed, low noise, and low distortion. The unity-gain-stable MAX4104 requires only 20mA of supply current while delivering 625MHz bandwidth and 400V/µs slew rate. Low voltage noise density of 2.1nV/?Hz and -88dBc spurious-free dynamic range make this device ideal for low-noise/low-distortion video and telecommunications applications. Application includes video ADC Preamp, pulse/RF telecom applications, video buffers and cable drivers, ultrasound, active filters, ADC input buffers.

• Operating supply voltage range from ±3.5V to ±5.5V (VCC = +5V, VEE = -5V, VCM = 0)
• 1mV typical input offset voltage (VOUT = 0, VCC = +5V)
• 2.5µV/°C input offset-voltage drift typ (VCC = +5V, VEE = -5V,TA = +25°C)
• 1.5Mohm common-mode input resistance typ (VCC = +5V, VEE = -5V, TA = +25°C)
• Input common-mode voltage range from -2.8V to +4.1V (VCC = +5V, VEE = -5V, TA = +25°C)
• 85dB positive power-supply rejection ratio (VCC = 3.5V to 5.5V, TA = +25°C)
• 20mA typical quiescent supply current (VOUT = 0, VCC = 3.5V to 5.5V, TA = +25°C)
• 65dB open-loop gain (-2.8V ? VOUT ? 2.8V, RL = 100 ohm)
• Output current drive is ±70mA (RL = 30 ohm, VCC = 3.5V to 5.5V, TA = +25°C)
• 5 pin SOT23 package, operating temperature range from -40°C to +85°C

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
