Description
Product Overview
LTC®2055 are low power, low noise, dual, zero-drift operational amplifier. For space limited applications, the LTC2055 is also available in dual fine pitch leadless package (DFN). Typical applications include thermocouple amplifiers, electronic scales, medical instrumentation, strain gauge amplifiers, high resolution data acquisition, DC accurate RC active filters, low side current sense and battery-powered systems.
- Supply operation: 2.7V to ±5.5V
- Supply current: 155?A (max per amplifier) at -40°C to 85°C
- Gain-bandwidth product: 500KHz typ at TA = 25°C
- Slew rate: 0.5V/?s typ at TA = 25°C
- ±3µV max input offset voltage , ±0.05?V/°C max input offset voltage drift at -40°C to 85°C
- ±1pA max input offset current and ±2pA max input bias current at TA = 25°
- 130dB typ CMRR at TA = 25°
- 130dB typ PSRR at TA = 25°

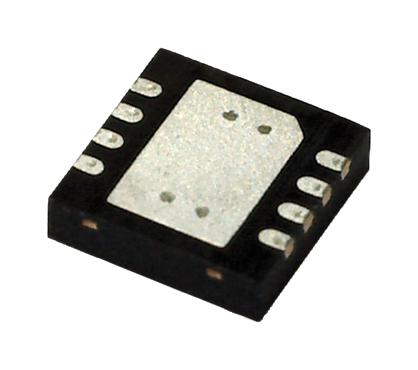

- 8 lead DFN package
- Operating temperature range from -40 to 85°C
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | LTC2055HVIDD#PBF |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1205.52 |
| 3-5 | ₹ 1193.22 |
| 5-10 | ₹ 1168.61 |
| 10+ | ₹ 1144.01 |
Bulk discount will be automatically applied during checkout based on quantity.
