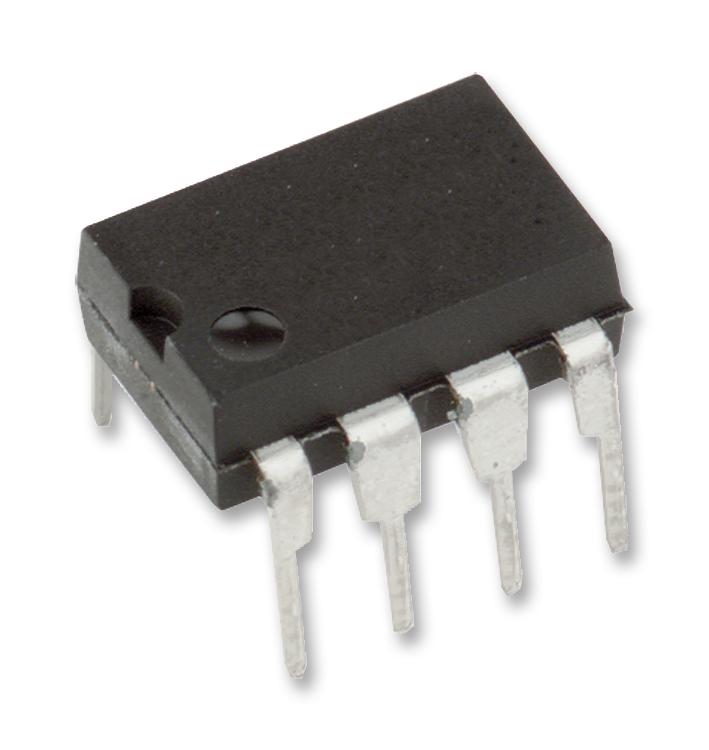

ANALOG DEVICES LTC1152CN8#PBF Operational Amplifier, Single, 1 Channels, 700 kHz, 0.5 V/µs, 2.7V to 14V, DIP, 8 Pins

LTC®1152 is a high-performance, low-power zero-drift op amp featuring an input stage that has common modes to both power supply rails and an output stage that provides rail-to-rail swing, even into heavy loads. The wide input common-mode range is achieved with a high-frequency on-board charge pump. This technique eliminates the crossover distortion and limited CMRR imposed by competing technologies. The LTC1152 is a C-Load of amp, enabling it to drive any capacitive load. It also includes a shutdown feature that drops supply current to 1µA and puts the output stage in a high impedance state. Typical applications are rail-to-rail amplifiers and buffers, high resolution data acquisition systems, supply current sensing in either rail, low supply voltage transducer amplifiers, high accuracy instrumentation, single negative supply operation.

• Input common-mode range includes both rails
• Output swings rail to rail, output will drive 1Kohm load
• No external components required, output configurable to drive any capacitive load
• Input offset voltage is ±10µV maximum (TA = 25°C, VS = 5V)
• Average input offset drift is ±100nV/°C maximum (TA = 25°C, VS = ±5V)
• Input bias current is ±100pA maximum (TA = 25°C, VS = 5V)
• Common mode rejection ratio is 130dB typ (TA = 25°C, VS = 5V, VCM = 0V to 5V)
• Slew rate is 0.5V/µs typical (RL = 10k, CL = 50pF, VS = ±2.5V)
• Gain bandwidth product is 0.7MHz (RL = 10k, CL = 50pF, VS = ±2.5V)
• 8-lead PDIP package, operating temperature range from 0°C to 70°C
