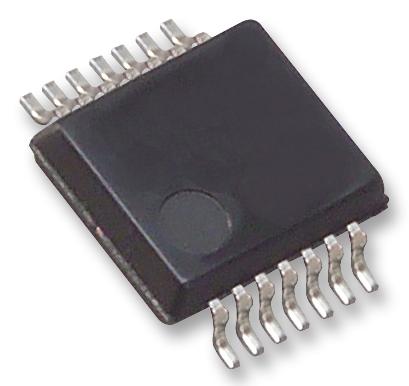

ANALOG DEVICES LT6204IS#PBF Operational Amplifier, 4 Channels, 100 MHz, 25 V/µs, 2.5V to 12.6V, SOIC, 14 Pins

LT6204 is a quad, low noise, rail-to-rail input and output unity gain stable op amp. Harmonic distortion is less than �80dBc at 1MHz making this amplifier suitable in low power data acquisition systems. This device can be used as plug-in replacements for many op amps to improve input/output range and noise performance. Typical applications are n low power signal processing, active filters, rail-to-rail buffer amplifiers, driving A/D converters, DSL receivers, battery powered/battery backed equipment.

• Input noise voltage density is 1.9nV/?Hz at f = 100kHz, TA = 25°C, VS = ±5V; VCM = VOUT = 0V
• Supply current per amp is 3mA at VS=5V, TA=25°C, VS=5V, 0V; VS=3V, 0V; VCM=VOUT=half supply
• Gain bandwidth is 100MHz at frequency = 1MHz, TA = 25°C, VS = ±5V; VCM = VOUT= 0V
• Input offset voltage is 0.5mV at VS = 5V, 0V, VCM = half supply, TA = 25°C
• Minimum supply voltage is 2.5V at TA = 25°C, VS =5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply
• Common mode rejection ratio is 100dB at VS = 5V, VCM = 1.5V to 3.5V, TA = 25°C
• Input common mode range includes both rails
• Input noise current density (unbalanced) is 1.1pA/?Hz at TA=25°C, VS =5V, 0V; VS=3V, 0V
• 14-lead plastic SO package
• �40°C to 85°C temperature rating

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
