Description
Product Overview
LT6020 is a low power, enhanced slew rate, precision operational amplifier. The proprietary circuit topology of this amplifier gives excellent slew rate at low quiescent power dissipation without compromising precision or settling time. In addition, unique input stage circuitry allows the input impedance to remain high during input voltage steps as large as 5V. The combination of precision specs along with fast settling makes this part ideal for MUX applications. It is widely used in application such as precision signal processing, 18-Bit DAC amplifier, multiplexed ADC applications, low power portable systems, low power wireless sensor networks etc.
- Slew rate is 5V/?s typ
- Supply current per amplifier is 90?A typ
- Input offset voltage is 20µV typ
- Offset voltage drift is ±0.3µV/°C typ
- High dynamic input impedance
- Fast recovery from shutdown
- Input bias current is ±0.1nA typ
- No output phase inversion, gain bandwidth product is 400KHz typ
- Operating temperature is -40°C to 85°C, supply voltage is 3V to 30V

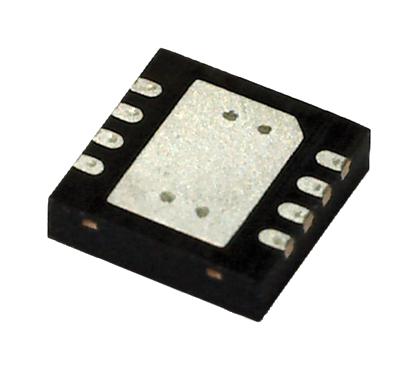

- Packaging style is 8-lead plastic DFN
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | LT6020IDD#PBF |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 879.99 |
| 3-5 | ₹ 871.01 |
| 5-10 | ₹ 853.05 |
| 10+ | ₹ 835.09 |
Bulk discount will be automatically applied during checkout based on quantity.
