| ₹ 891.52 includes GST and import duties. | |
| B2B customers can avail ₹ 135.96 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview
LT® 3469 is a transconductance (gm) amplifier that can drive outputs up to 33V from a 5V or 12V supply. An internal switching regulator generates a boosted supply voltage for the gm amplifier. Typical applications include piezo speakers, piezo microactuators and varactor bias.
- Piezo microactuator driver with boost regulator
- 10mV max input offset voltage and 100nA max input offset current (gm amplifier)
- 30V/mV typ gain at no load, VOUT = 2V to 33V, ±40mA typ max output current (gm amplifier)
- 100dB CMRR at VCM = 0V to 10V and 120dB PSRR at VIN = 2.5V to 16V (gm amplifier)
- Generates VCC Up to 35V (regulator)
- Wide operating supply range: 2.5V to 16V (regulator)
- High switching frequency: 1.3MHz (regulator)
- Internal schottky diode, tiny external components, current mode switcher with internal compensation

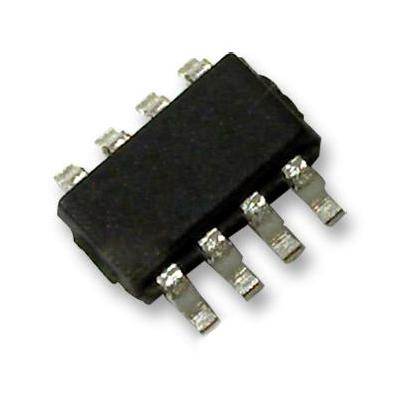

- 8 lead TSOT-23 package
- Operating temperature range from -40 to 85°C
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | LT3469ETS8#TRMPBF |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 873.69 |
| 3-5 | ₹ 864.77 |
| 5-10 | ₹ 846.94 |
| 10+ | ₹ 829.11 |
Bulk discount will be automatically applied during checkout based on quantity.
