ANALOG DEVICES LT1631CS#PBF Operational Amplifier, 4 Channels, 30 MHz, 10 V/µs, 2.7V to ± 15V, SOIC, 14 Pins

LT1631 is a quad channel, rail-to-rail input and output op-amp. This device has excellent DC precision over the full range of operation. Input offset voltage is typically less than 150µV and the minimum open-loop gain of one million into a 10k load virtually eliminates all gain error. To maximize common mode rejection, this device employ a patented trim technique for both input stages, one at the negative supply and the other at the positive supply, that gives a typical CMRR of 106dB over the full input range. This device can be used as plug-in replacements for many standard op-amp to improve input/output range and performance. It is widely used in application such as n active filters, rail-to-rail buffer amplifiers, driving A/D converters, low voltage signal processing, battery-powered systems etc.

• Gain-bandwidth product is 30MHz typical
• Slew rate is 10V/µs typical
• Low supply current per amplifier is 3.5mA typical
• Input offset voltage is 150µV typical, input offset current is 20nA typical
• Input bias current is 540nA typical
• Low input noise voltage is 6nV/?Hz typical
• Wide supply range is 2.7V to ±15V
• Short-circuit current is ±70mA typical
• Operating temperature is -40°C to 85°C

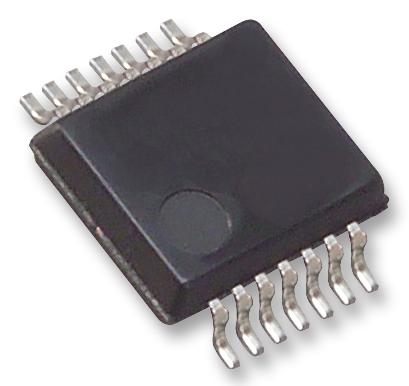

• Package style is 14-lead plastic SO

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
