ANALOG DEVICES LT1497CS#PBF Operational Amplifier, 2 Channels, 50 MHz, 900 V/µs, ± 2.5V to ± 15V, SOIC, 16 Pins

LT1497 is a dual current feedback amplifier. It features low power, high output drive, excellent video characteristics and outstanding distortion performance. From a low 7mA maximum supply current per amplifier, this device drives ±100mA with only 1.9V of headroom. Twisted pairs can be driven differentially with -70dBc distortion upto 1MHz for ±40mA peak signals. The device has thermal and current limit circuits that protect against fault conditions. It is used in applications such as twisted-pair drivers, video amplifiers, cable drivers, test equipment amplifiers, buffers.

• Input offset voltage is ±3mV typical at (TA = 25°C)
• Input offset voltage drift is 10µV/°C typical at (TA = 25°C)
• Input noise voltage density is 3nV/?Hz typical at (TA = 25°C)
• Input capacitance is 3pF typical, slew rate is 900V/µs typical at (VS = ±15V, TA = 25°C)
• Small-signal bandwidth is 50MHz typical at (VS = ±15V, RF = RG = 560 ohm, RL = 100 ohm)
• Settling time is 55ns typical at (VS = ±15V, 10V step, 0.1%, AV = -1)
• Supply current per amplifier is 6mA typical at (VS = ±2.5V to ±5V, TA = 25°C)
• Operating temperature is -40°C to 85°C

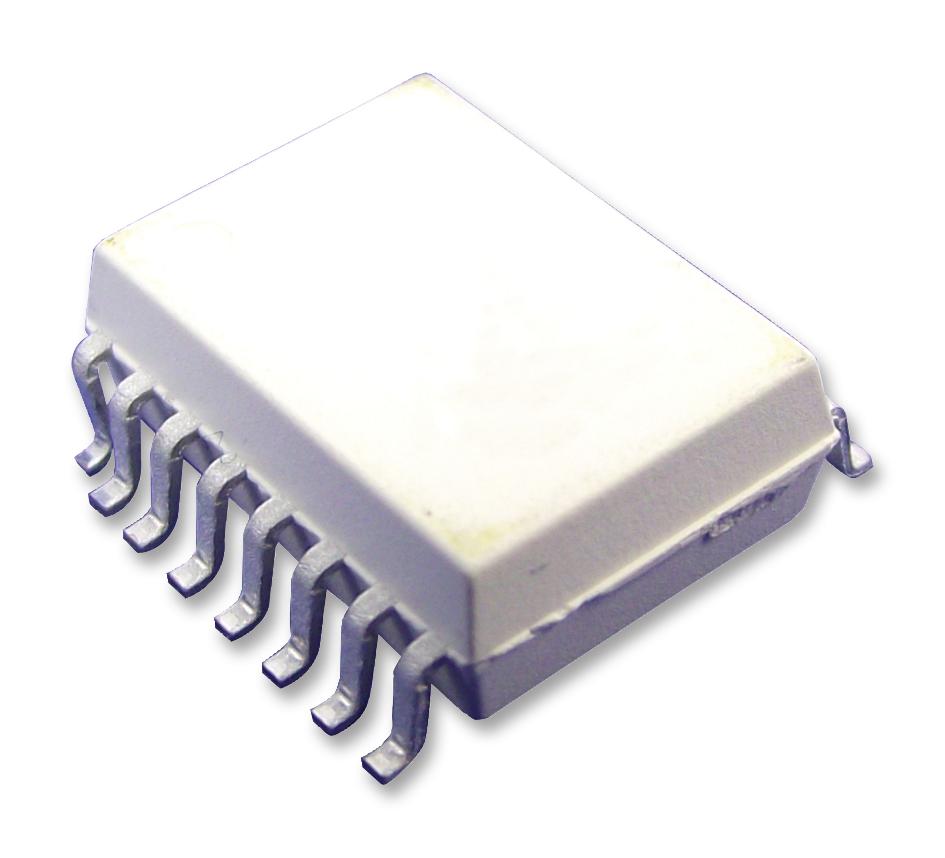

• Package style is 16-lead NSOIC

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
