ANALOG DEVICES LT1078ACN8#PBF Operational Amplifier, Dual, 2 Channels, 200 kHz, 0.1 V/µs, 2.3V to 12V, DIP, 8 Pins

LT1078ACN8#PBF is a micropower dual opamp. This device is optimized for single supply operation at 5V. Micropower performance of competing devices is achieved at the expense of seriously degrading precision, noise, speed, and output drive specifications. The design effort of the device was concentrated on reducing supply current without sacrificing other parameters. The offset voltage achieved is the lowest on any dual nonchopper stabilized op-amp micropower or otherwise. Offset current, voltage and current noise, slew rate, and gain bandwidth product are all two to ten times better than on previous micropower opamps. The 1/f corner of the voltage noise spectrum is at 0.7Hz, at least three times lower than on any monolithic opamp. It is used in applications such as battery or solar-powered systems, portable instrumentation, remote sensor amplifiers, satellite circuitry, micropower sample-and-hold, thermocouple amplifiers, and micropower filters.

• Input Offset Voltage is 30?V typical at (VS = 5V, 0V, VCM = 0.1V, VO = 1.4V, TA = 25°C)
• Input bias current is 6nA typical at (VS = 5V, 0V, VCM = 0.1V, VO = 1.4V, TA = 25°C)
• Input offset current is 0.05nA typical at (VS = 5V, 0V, VCM = 0.1V, VO = 1.4V, TA = 25°C)
• Input noise voltage is 0.6?VP-P typical at (0.1Hz to 10Hz, VS = 5V, 0V, VCM = 0.1V)
• Common mode rejection ratio is 110dB typical at (VCM = 0V to 3.5V, VS = 5V, 0V, VCM = 0.1V)
• Slew rate is 0.07V/?s typ at (AV = 1, VS = ±2.5V, VS = 5V, 0V, VCM = 0.1V, VO = 1.4V, TA = 25°C)
• Gain bandwidth product is 200KHz typ at ( fO ? 20KHz, VS = 5V, 0V, VCM = 0.1V, VO = 1.4V)
• Supply current per amplifier is 38?A typical at (VS = 5V, 0V, VCM = 0.1V, VO = 1.4V, TA = 25°C)
• Large-signal voltage gain is 1000V/mV typical at (VO = 0.03V to 4V, no load)

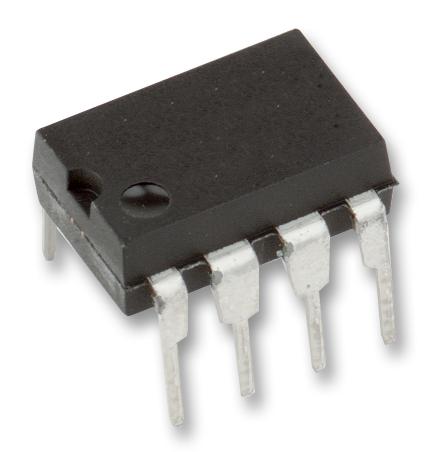

• Operating temperature range from 0°C to 70°C, 8-lead PDIP package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
