| ₹ 260.59 includes GST and import duties. | |
| B2B customers can avail ₹ 39.74 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview
ADCMP370AKSZ-REEL is a general-purpose comparator with input offset voltages of 9mV (maximum) and low power consumption, which makes it ideal for battery-powered, portable equipment. The inputs on the part and the output on the ADCMP370 can tolerate voltages up to 22V, making it suitable for use as voltage detectors in portable equipment. Typical applications are voltage detectors, battery management systems, analogue-to-digital converters, low voltage applications, battery-powered electronics, portable equipment.
- Operating voltage range is 2.25V to 5.5V
- Input bias current is 50nA maximum at (VIN = VCC /2, TA = -40°C to +85°C)
- Input offset current is 150nA maximum at (VIN = VCC /2, TA = -40°C to +85°C)
- Propagation delay is 5µs typical at (input overdrive = 10mV, TA = -40°C to +85°C)
- Rail-to-rail, common-mode input range
- Supply current is 4µA typical at TA = -40°C to +85°C
- Output rise time is 30ns typical at (COUT = 15pF, TA = -40°C to +85°C)
- Output fall time is 45ns typical at (COUT = 15pF, TA = -40°C to +85°C)

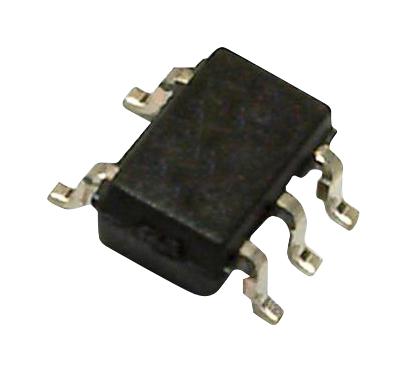

- 5-lead SC70 package
- Temperature range from -40°C to +85°C
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | ADCMP370AKSZ-REEL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 255.38 |
| 3-5 | ₹ 252.77 |
| 5-10 | ₹ 247.56 |
| 10+ | ₹ 242.35 |
Bulk discount will be automatically applied during checkout based on quantity.
