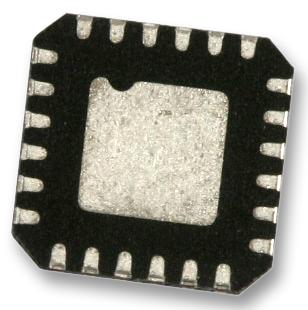

ANALOG DEVICES ADA4939-2YCPZ-R7 Operational Amplifier, 2 Channels, 1.4 GHz, 6.8 kV/µs, 3V to 5.25V, LFCSP-EP, 24 Pins

ADA4939-2YCPZ-R7 is an ultralow distortion, differential ADC driver. It is a low noise, ultralow distortion, high speed differential amplifier. It is an ideal choice for driving high performance ADCs with resolutions upto 16bits from DC to 100MHz. The output common-mode voltage is user adjustable by means of an internal common-mode feedback loop, allowing the device output to match the input of the ADC. The internal feedback loop also provides exceptional output balance as well as suppression of even-order harmonic distortion products. The low DC offset and excellent dynamic performance of the device makes it well suited for a wide variety of data acquisition and signal processing applications. It is used in applications such as ADC drivers, single-ended-to-differential converters, IF and baseband gain blocks, differential buffers, line drivers.

• Externally adjustable gain, stable for differential gains ?2
• Differential-to-differential or single-ended-to-differential operation
• Adjustable output common-mode voltage, single-supply operation range from 3.3V to 5V
• 1400MHz typ -3dB small signal bandwidth at (VOUT, dm = 0.1V p-p)
• Slew rate is 6800V/µs typical at (VOUT, dm = 2V p-p, 25% to 75%)
• Overdrive recovery time is <lt/>1ns typical at (VIN = 0V to 1.5V step, G = 3.16)
• Second harmonic distortion is -102dBc typ at (VOUT, dm = 2V p-p, 10MHz)
• Voltage noise (RTI) is 2.3nV/?Hz typical at (f = 100KHz)
• Input bias current is -10µA typical at (TA = 25°C, +VS = 5V)
• Operating temperature range from -40°C to +105°C, 24-lead LFCSP package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
