Description

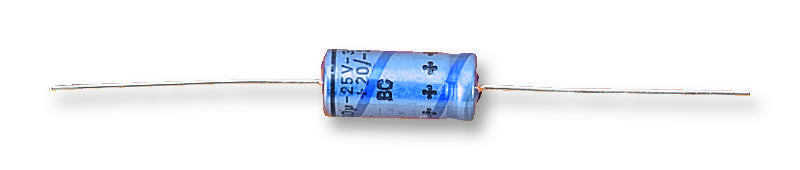

The Vishay 021 ASM series are axial leaded, miniature, standard aluminium electrolytic capacitors. The capacitance value ranges from 1�F to 15mF. These capacitors are used in smoothing, filtering, buffering circuits, power supply, audio-video and general purpose applications.
- �20% tolerance
- Working voltage range of 6.3V to 100V
- Operating temperature range -40�C to +85�C
- Endurance of 2500hours to 8000hours at 85�C based on case size
- Miniaturized, high CV product per unit volume
- Charge and discharge proof
- Cylindrical aluminium case, insulated with a blue sleeve
- Low mounting height boards, vibration and shock resistant
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Operating Temperature Min | -40�C |
| Capacitor Terminals | Axial Leaded |
| Operating Temperature Max | 85�C |
| Lifetime @ Temperature | 5000 hours @ 85�C |
| Voltage Rating | 25V |
| Product Range | 021 ASM Series |
| Diameter | 15mm |
| Automotive Qualification Standard | - |
| ESR | 0.132ohm |
| Capacitance | 2200�F |
| Lead Spacing | - |
| Capacitance Tolerance | � 20% |
| Packaging | Each |
| Height | 30mm |
Other details
| Brand | VISHAY |
| Part Number | MAL202116222E3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Packaging / Drawing / Footprint EN | |
| Product Change Notice EN | |
