Description

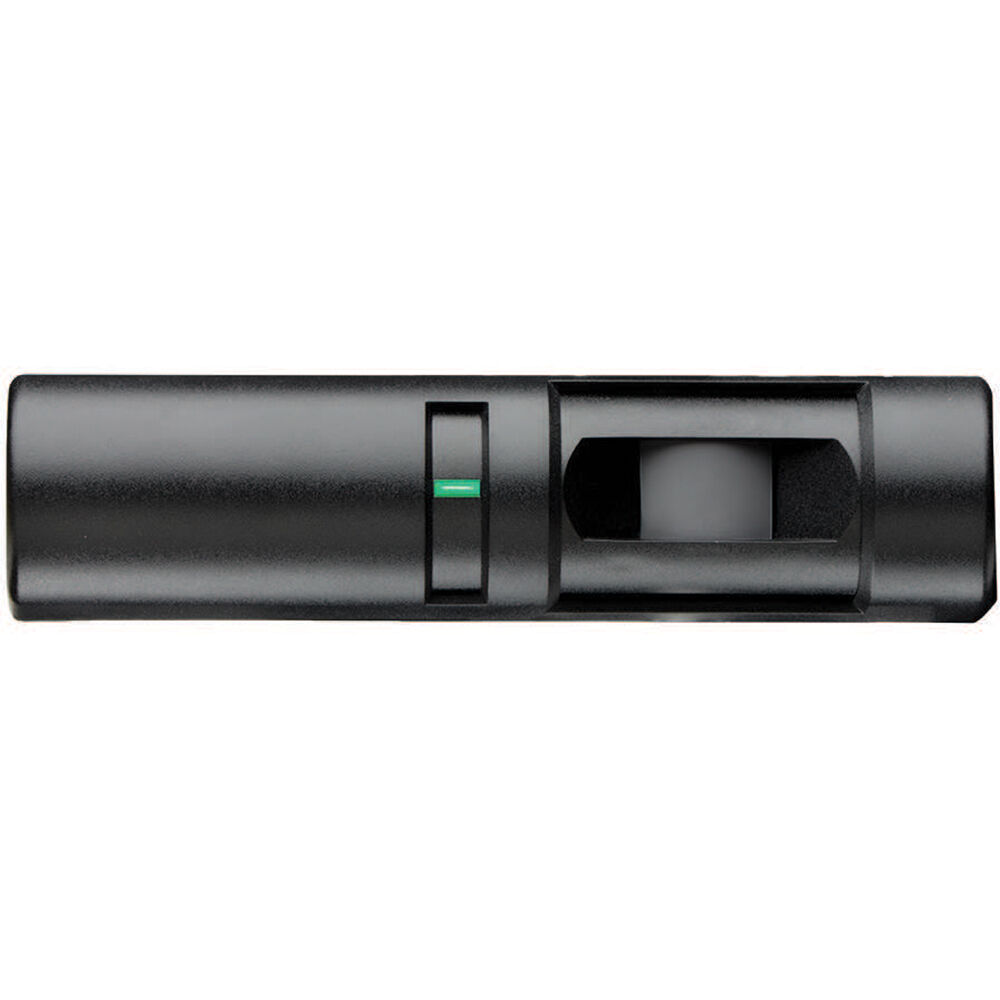

Bosch DS151I Overview
Implement request-to-exit functionality on a single or double door with the DS151i Request-to-Exit Detector (Black) from Bosch. This unit detects motion (PIR) across an 8 x 10' coverage area to signal an access control system or door control device to grant a request-to-exit command.
Additional Details
- Wraparound coverage pattern
- Internal vertical pointability
- Selectable relay trigger mode
- Selectable fail safe/fail secure modes
- Programmable fail-safe or fail-secure modes with power loss
- Programmable reset (accumulative) or non-reset (counting) mode
- Externally visible activation LED
UPC: 800549946476
Items Included
- Bosch DS151i Request-to-Exit Detector (Black)
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Bosch DS151I Specs
General
| Compatibility |
Various Access Control Systems, Door Control Devices
|
Inputs/Outputs
| Alarm I/O |
Alarm Output: Two Form C Relay Contacts
Relay Latch Time: Adjustable to 60 Seconds |
Power
| Power Source |
AC Input, DC Input
|
| DC Input Power |
12 to 24 VDC at 26 mA
|
| Voltage |
12, 24 VAC
|
Physical
| Mounting |
Multiple Wall, Ceiling
|
| Color |
Black
|
| Material of Construction |
High Impact ABS Plastic
|
| Certifications |
CE, RCM, RoHS, UL
|
| Operating Conditions |
-20 to 120?F / -28 to 48?C
|
| Dimensions |
6.3 x 1.5 x 1.5" / 15.9 x 3.8 x 3.8 cm
|
Packaging Info
| Package Weight |
0.245 lb
|
| Box Dimensions (LxWxH) |
6.65 x 2.75 x 1.75"
|
