Description
Afinia Vega Overview
Scan 3D objects while indoors or even outdoors with the Afinia EINSTAR VEGA Wireless All-in-One Handheld 3D Scanner. This standalone 3D scanner features a 2.4 GHz Octa-Core processor, 32GB of RAM, 32GB of eMMC storage, and a 512GB SSD. It also has a 6.4" 2K AMOLED display and a 48MP RGB texture camera. With VCSEL for long range scanning and MEMS for short range scanning, the VEGA can scan small, medium, and large objects with ease. With a lightweight, ergonomic design and one-click start, the VEGA makes it easy to start scanning.
Powerful Hardware
The VEGA is an all-in-one 3D scanner. It features a 2.4 GHz 8-Core processor, 32GB of RAM, 32GB of eMMC storage and a 512GB SSD, a 48MP RGB texture camera, and a 6.4" 2K AMOLED built-in display.
Two 3D Scanners in One
The VEGA features VCSEL for long range scanning and MEMS for short range scanning.
Wireless Solution
Wirelessly scan without having to connect to a PC. You can data share to the SHINING 3D Cloud. You can even wireless project to an external display as a second screen.
HD Mode
Designed for small to medium sized objects, HD Mode has a working distance of 100 to 300mm and a scanning speed of up to 15 fps.
Fast Mode
For medium to large sized objects, Fast Mode has a working distance of 350 to 1500mm and a scanning speed of up to 20 fps.

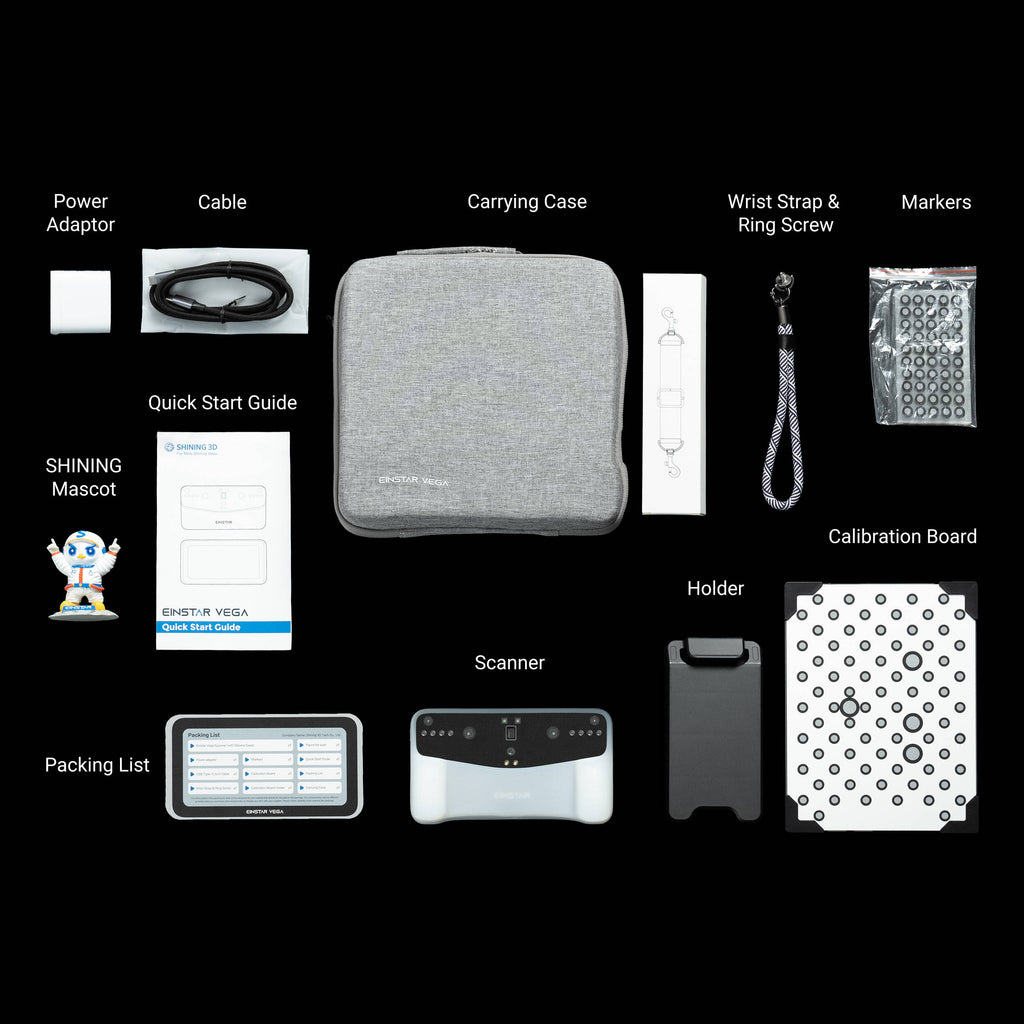

Items Included
- Afinia EINSTAR VEGA Wireless All-in-One Handheld 3D Scanner
- Carrying Case
- Calibration Board
- Holder
- Power Adapter
- Cable
- Wrist Strap and Ring Screw
- Markers
- SHINING Mascot
- Packing List
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Afinia Vega Specs
Key Specs
| Scan Speed |
15 Seconds (Single)
20 Seconds (Single) |
| Accuracy |
±300 mm (HD)
±1500 mm (Rapid) |
| Image Resolution |
48 MP
|
| File Formats |
ASC, OBJ, PLY, STL
|
General
| Scan Speed |
15 Seconds (Single)
20 Seconds (Single) |
| Accuracy |
±300 mm (HD)
±1500 mm (Rapid) |
| Point Distance |
1.97 to 118.1 mil / 0.05 to 3 mm (HD)
19.7 to 393.7 mil / 0.5 to 10 mm (Rapid) |
| Working Distance |
59.1" / 1500 mm
|
| Image Resolution |
48 MP
|
| File Formats |
ASC, OBJ, PLY, STL
|
Computing
| CPU |
8-Core:
|
| Installed RAM |
32 GB
|
| Total Installed Storage |
32 GB
|
| Solid State Storage |
eMMC
|
Inputs / Outputs
| Inputs/Outputs |
1x USB-C (Unspecified Interface)
|
| Wireless |
Wi-Fi 6 (802.11ax)
*Built-In |
| Media/Memory Card Slot |
No
|
Display
| Panel Type |
OLED
|
| Display Size |
6.4"
|
Battery
| Capacity |
5000 mAh
|
Physical
| Dimensions |
7.1 x 3.7 x 1" / 180 x 95 x 26.5 mm
|
| Weight |
1.2 lb / 535 g
|
Packaging Info
| Package Weight |
7.165 lb
|
| Box Dimensions (LxWxH) |
16.1 x 12.7 x 7"
|
