Description
Product Overview

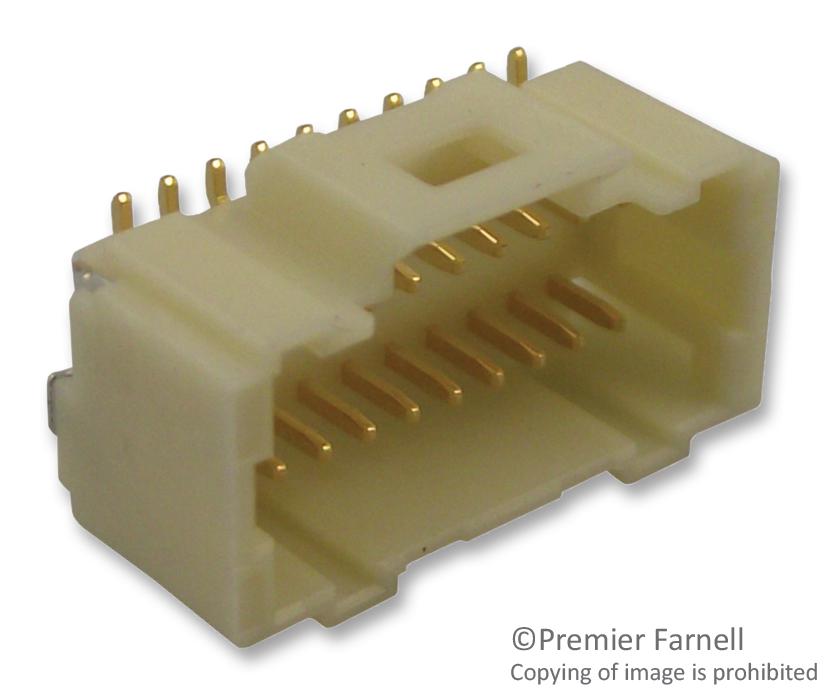

The 501190-4017 from Molex is a Pico-Clasp 1.00mm pitch, dual row, 40 circuits, vertical wire to board PCB header. It mates with 501189 Pico-Clasp wire-to-board female housing.
- Gold plated phosphor bronze contact
- Flammability rating is 94V-0
- Durability (mating cycles max) is 30
- Operating temperature range from -40°C to +105°C
- Surface mount termination
- Current rating is 1A
- Voltage rating is 50V
- Inner positive lock straight header
- UL E29179 recognized
Applications
Automotive, Consumer Electronics, Industrial, Medical
Product details
Other details
| Brand | MOLEX |
| Part Number | 501190-4017 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
