- High Speed USB 2.0 Host Interface
- Data Transfer Rates of up to 480 Mbps
- Compact, Portable Form Factor
- Windows, Linux & Mac Compatible

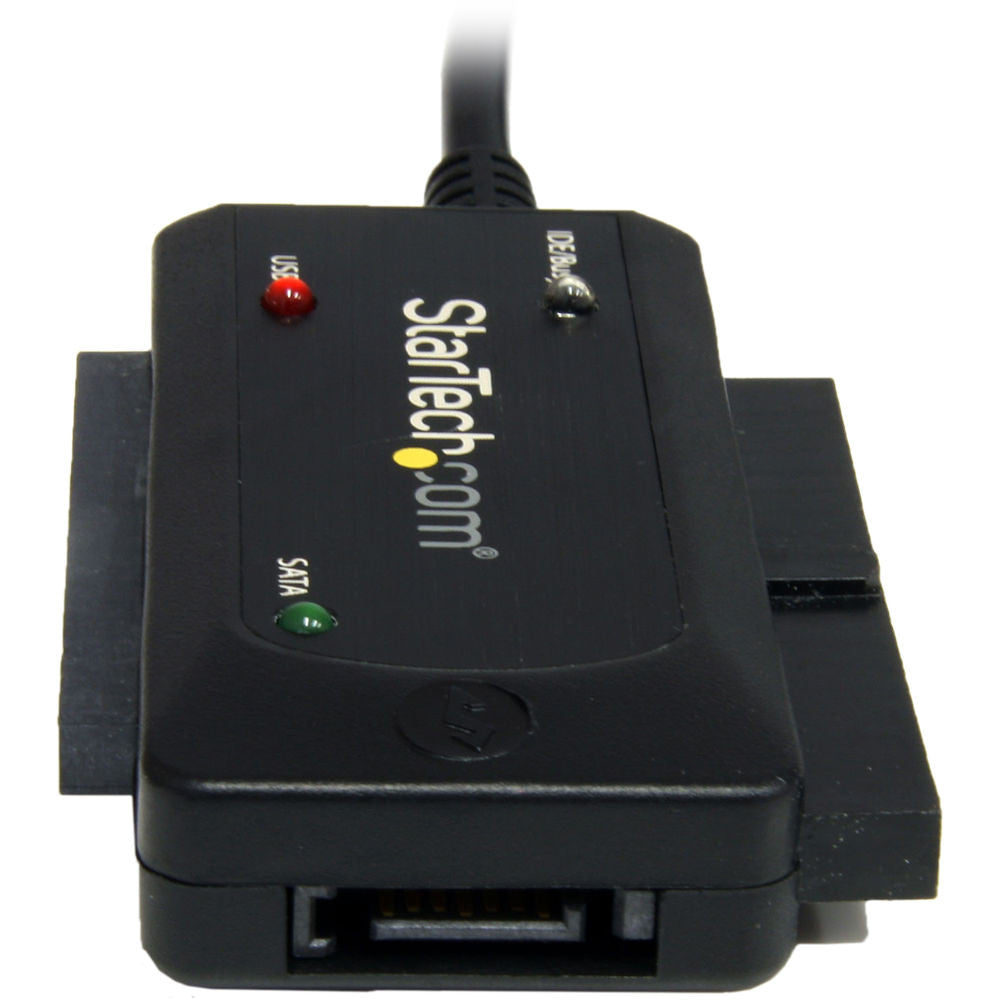

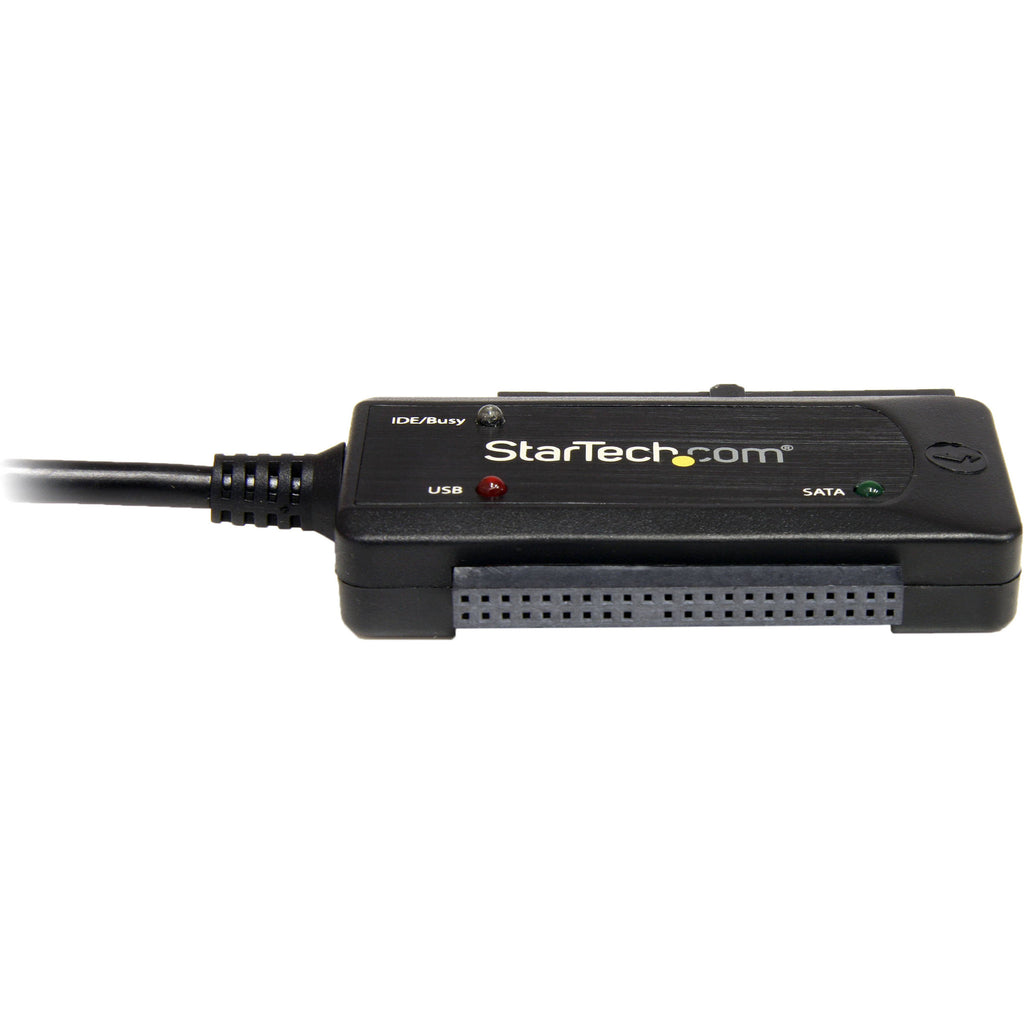

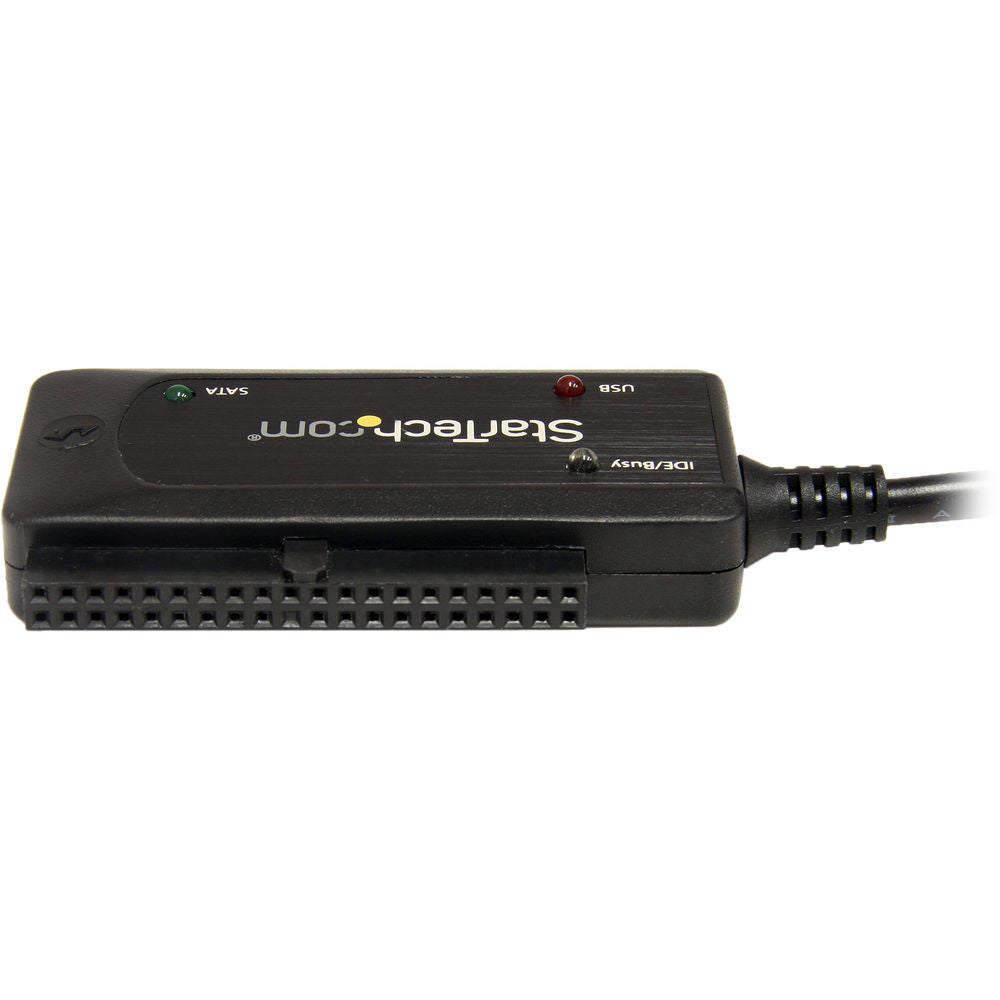

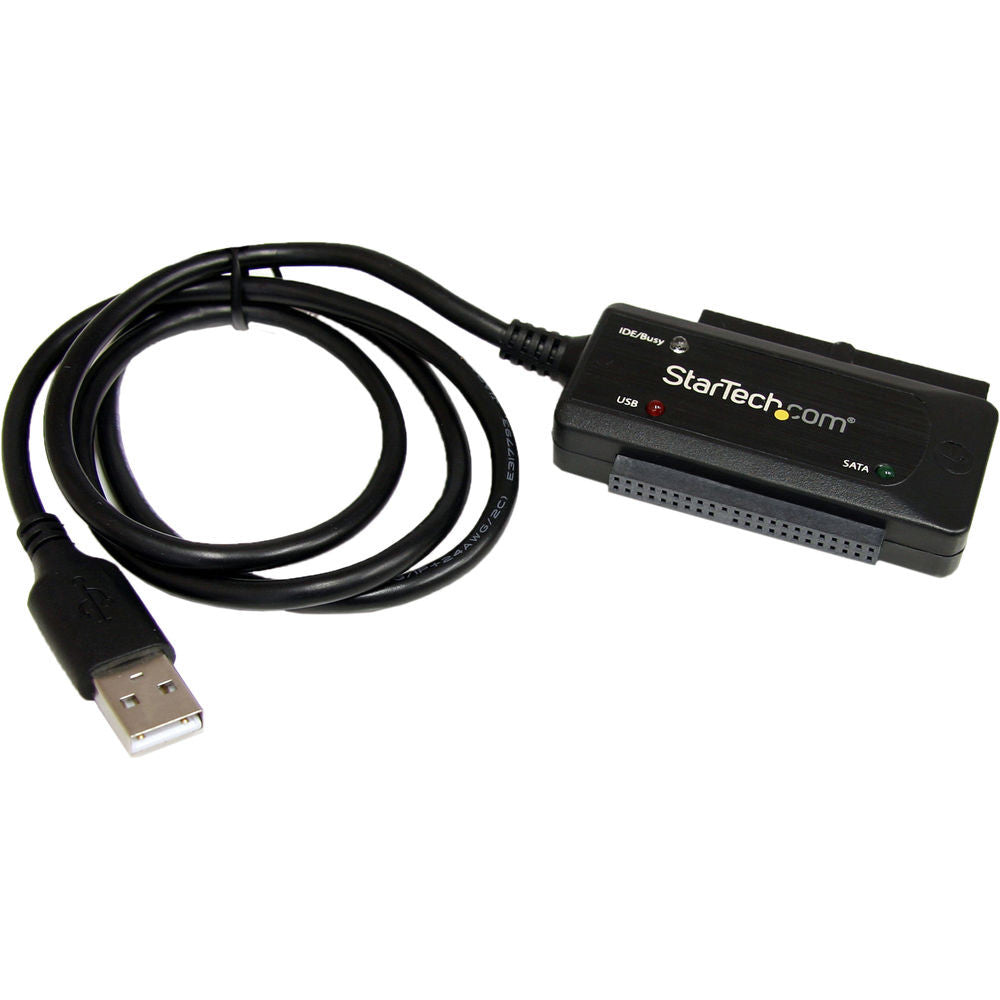

The black USB 2.0 to SATA IDE Adapter from StarTech connects any standard 2.5" (6.35cm) or 3.5" (8.89cm) SATA or IDE hard drive to a computer through USB 2.0. The adapter lets you connect a bare drive with no enclosure, saving time and hassle. It features LED indicators that allow you to easily monitor status and activity updates and is designed for durability and reliability.
- Supports both 2.5" (6.35cm) and 3.5" (8.89cm) SATA/IDE hard drives in a single unit
- LED indicators provide status and activity updates
- High speed USB 2.0 host interface, with support for transfer rates up to 480 Mbps
- Compact, portable form factor
Applications
- Service technicians who need to test or retrieve data from old hard drives
- Technicians who travel and deal with different types of hard drives
- Ideal for testing and quickly swapping drives
- Connect your 2.5" (6.35cm) or 3.5" (8.89cm) drives to almost any notebook or desktop
UPC: 065030824767
Hardware |
Drive Size | 2.5" (6.35 cm) and 3.5" (8.89 cm) |
Drive Type | SATA and IDE |
Connectors |
Drive Connectors | 1 x IDE (40-pin; EIDE/PATA) female 1 x IDE (44-pin; EIDE/PATA; 2.5" HDD) female 1 x LP4 (4-pin; molex large drive power) female 1 x SATA (7-pin; data) plug 1 x SATA power (15-pin) receptacle |
Host Connectors | 1 x USB A (4-pin) male |
Performance |
Maximum Data Transfer Rate | 480 Mbps |
Type and Rate | USB 2.0 - 480 Mbps |
Indicator |
LED Indicators | 1 x IDE detect/activity 1 x SATA detect/activity 1 x USB link |
Software |
OS Compatibility | Windows 2000/XP (32/64-bit)/Server 2003 (32/64-bit)/Vista (32/64-bit)/7 (32/64-bit)/Server 2008 R2, Linux and Mac OS 8.6 and up |
Physical Characteristics |
Enclosure Type | Plastic |
Dimensions (L x W x H) | 2.8 x 1.7 x 0.6" (70 x 43 x 15 mm) |
Weight | 1.9 oz (54 g) |
Packaging Info |
Package Weight | 1.45 lb |
Box Dimensions (LxWxH) | 8.4 x 5.9 x 2.0" |
Note: Backwards compatible with USB 1.1 standard but not recommended due to slow transfer rate
In the Box
StarTech USB 2.0 to SATA IDE Adapter (Black)
- SATA Cable
- AC Power Cord

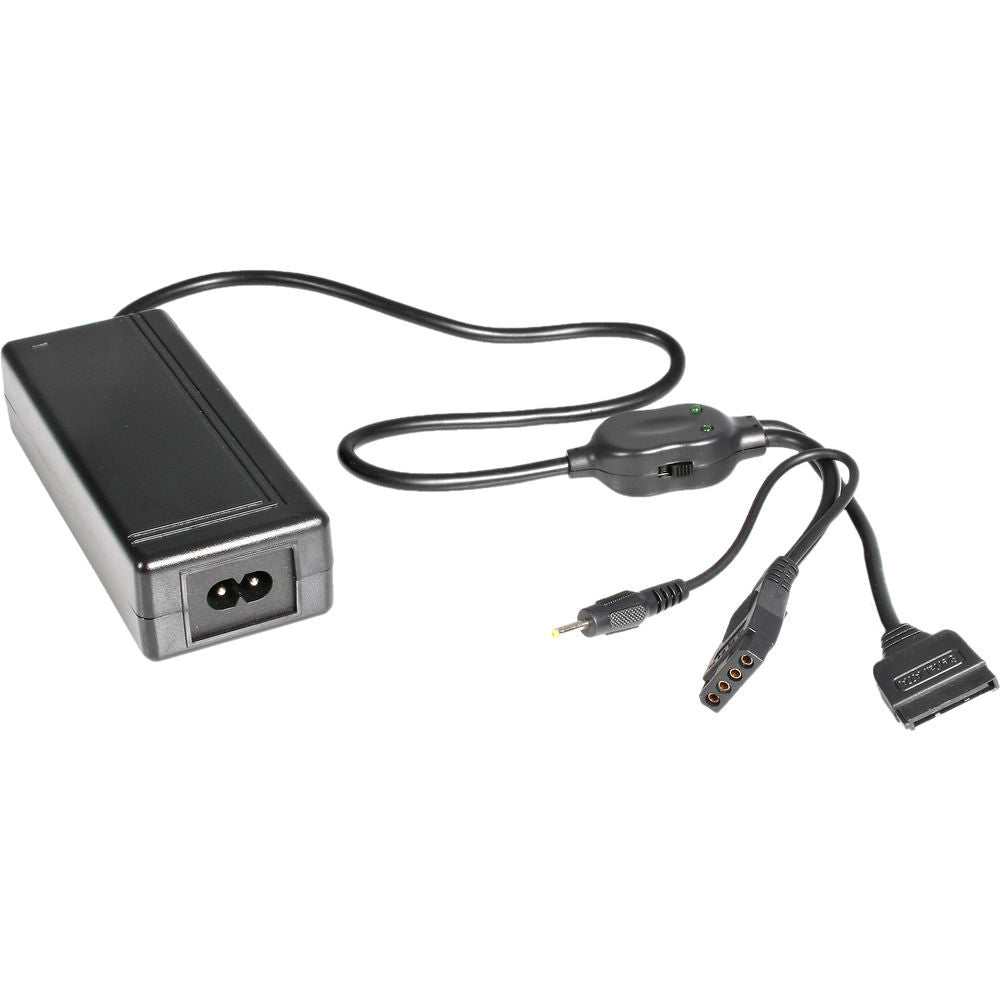

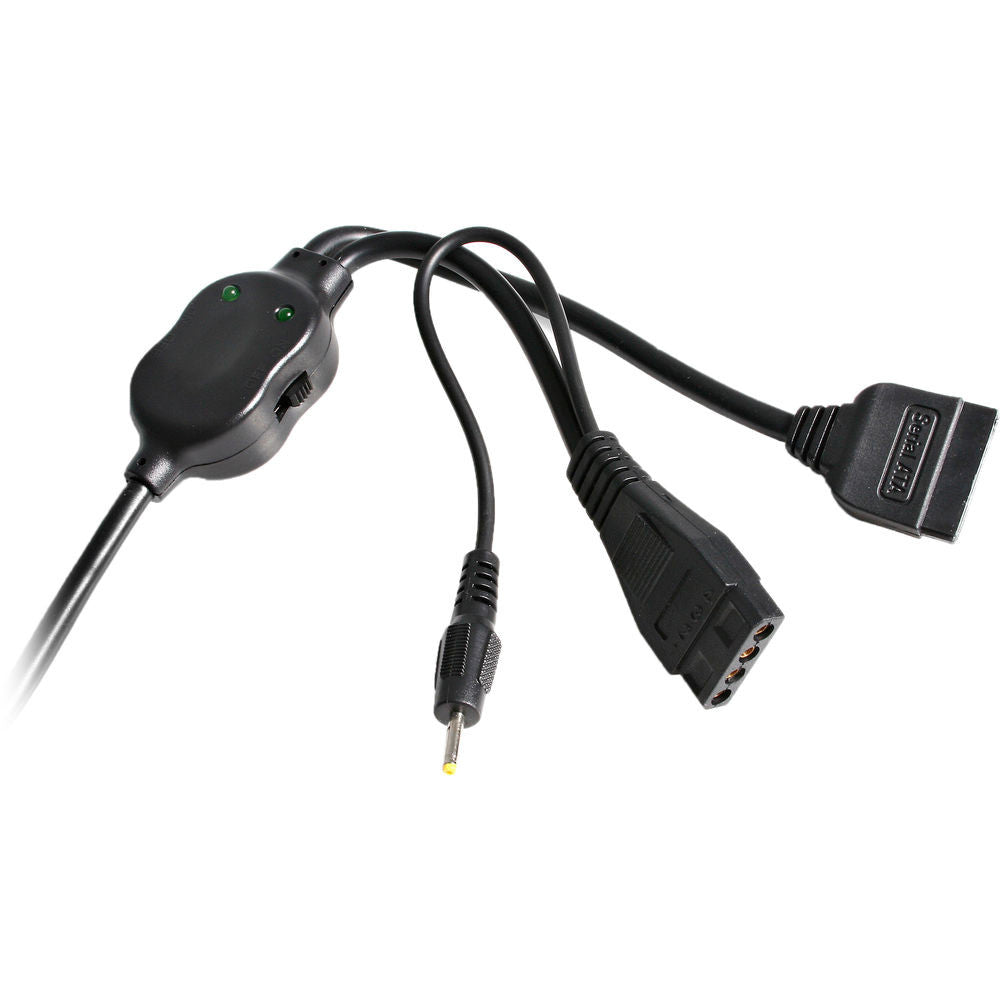

- Power Supply
- Driver CD
- 2-Year Warranty
