RED DIGITAL CINEMA V-RAPTOR XL Overview
- 1Description
- 2V-RAPTOR XL 8K VV: Advanced Multi-Format Capture
- 3Multi-Format 8KVV + 6K S35 Sensor
- 4Interchangeable Lens Mount/Autofocus Options
- 5Built-In Pro Interfaces
- 6Internal ND Filters
- 7Streamlined Form with Dual-Voltage Battery Support
- 8Advanced Cooling
- 9RED Control App
By Photo's
Mary Latvis
V-RAPTOR XL 8K VV: Advanced Multi-Format Capture
The V-mount

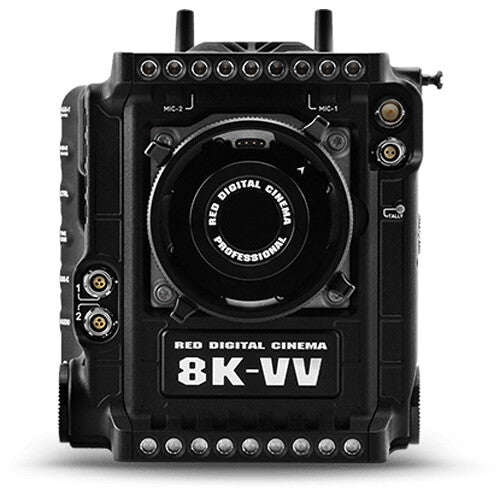

V-RAPTOR XL 8K VV Camera from
RED DIGITAL CINEMA offers up to 8K VV multiformat video capture, REDCODE raw and Apple ProRes recording, and 1080p streaming in a streamlined form featuring an array of interfaces suitable for high-end crew use. This follow-up to the V-RAPTOR incorporates internal ND filters and an interchangeable lens mount, and it includes an ARRI PL mount. Its industry-standard interface incorporates three 12G/6G/3G-SDI outputs, both 12 and 24V power outputs, timecode and genlock ports, and a V-mount battery plate.
Multi-Format 8KVV + 6K S35 Sensor
- This high-end, all-in-one solution offers both 8K VV and 6K S35 sensor selections, enabling creators to tailor their capture to the needs of each of their projects.
- A bevy of frame rates range up to 8K120 and 6K160, ii includes multiple anamorphic options, and it offers data rates up to 800 MB/s when using RED or other approved CFexpress cards.
Interchangeable Lens Mount/Autofocus Options
- Includes an ARRI PL lens mount which can be swapped for a separately available Canon EF mount, enabling you to make use of a large variety of lenses.
- Offers on-sensor enhanced phase-detect autofocus and in-camera AI processing for select lenses with face detection and object tracking coming in future updates
Built-In Pro Interfaces
- Designed for professional crew use with integrated auxiliary power and mounting points for attaching multiple high-end camera accessories.
- Built-in Ambient Lockit mode for wireless genlock and timecode syncing.
- Multiple video outputs, including 12G/6G/3G-SDI.
Internal ND Filters
- Motorized clear and 2 to 7-stop ND filters with 1/3, 1/4, and 1-stop increments provide precision exposure control.

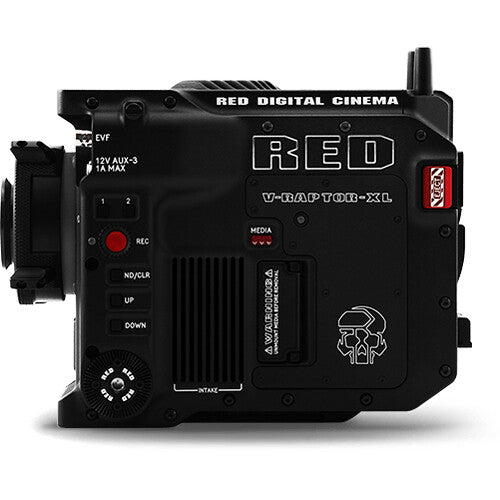

- The internal NDs are easily controlled via the side push buttons or wirelessly using the iOS/Android RED Control app.
Streamlined Form with Dual-Voltage Battery Support

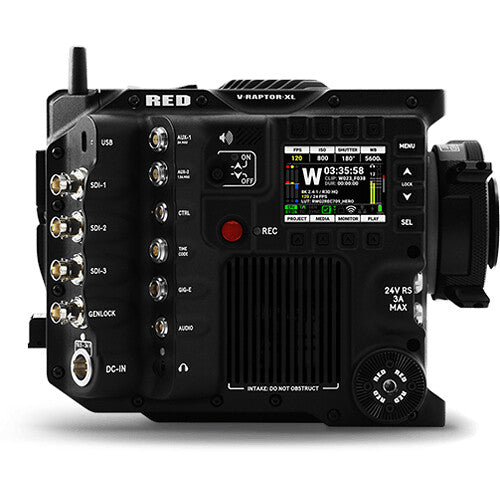

- The built-in interfaces and integrated OLED display lend the V-RAPTOR XL camera rig a streamlined, accessible form.

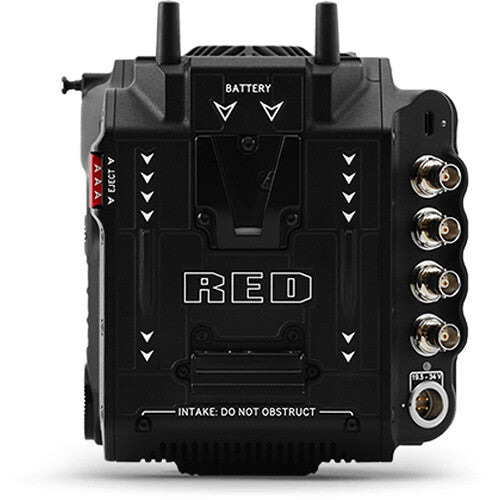

- An integrated V-mount battery plate supports 24 to 34V batteries with multiple auxiliary power outputs and standard 12 to 16V batteries.
Advanced Cooling
- The V-RAPTOR XL's advanced cooling system uses dedicated fans to separately reduce the temperature of auxiliary power components and camera components while a heat exchanger maintains a precise sensor temperature.
- Together, these cooling functions reduce noise while recording, create a more robust system, and produce less black shading.
RED Control App
- Use the iOS and Android-compatible RED control app for remote or tethered camera access.
- Access is available via Wi-Fi and the USB-C and Ethernet interfaces.
In the Box
- RED DIGITAL CINEMA V-RAPTOR XL 8K VV Cinema Camera (V-Mount)
- V-RAPTOR XL PL Mount
- V-RAPTOR XL PL Mount Shim Pack
- AC Power Adapter (270W)
- 3-Pin XLR to 4-Pin LEMO 2B Power Cable (10')
- RED Logo Sticker
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Recording Media (Not Included)
- Essential Cine Lenses (Not Included)
Firmware Updates
v1.5.1beta, May '23
Table of Contents
- Description
- V-RAPTOR XL 8K VV: Advanced Multi-Format Capture
- Multi-Format 8KVV + 6K S35 Sensor
- Interchangeable Lens Mount/Autofocus Options
- Built-In Pro Interfaces
- Internal ND Filters
- Streamlined Form with Dual-Voltage Battery Support
- Advanced Cooling
- RED Control App
RED DIGITAL CINEMA V-RAPTOR XL Specs
Imaging
| Lens Mount | ARRI PL |
| Sensor Resolution | Effective: 35.4 Megapixel (8192 x 4320) |
| Image Sensor | 40.96 x 21.6 mm (Vistavision) CMOS |
| Image Stabilization | None |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 3-Stop (1/8), 4-Stop (1/16), 5-Stop (1/32), 6-Stop (1/64), 7-Stop (1/128) ND Filters |
| Internal Filter Holder | No |
| Capture Type | Video Only |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| Advertised Dynamic Range | 17 Stops |
Video Capture
| Internal Recording Modes | REDCODE HQ 8192 x 4320 up to 59.94 fps 6144 x 3240 up to 96 fps 4096 x 2160 up to 240 fps 2048 x 1080 up to 480 fps REDCODE MQ 8192 x 4320 up to 59.94 fps 6144 x 3240 up to 160 fps 4096 x 2160 up to 240 fps 2048 x 1080 up to 480 fps REDCODE LQ 8192 x 4320 up to 120 fps 6144 x 3240 up to 160 fps 4096 x 2160 up to 240 fps 2048 x 1080 up to 480 fps REDCODE RAW 8192 x 4320 up to 120 fps 8192 x 3456 up to 150 fps 7168 x 3780 up to 140 fps 7168 x 3024 up to 175 fps 6144 x 3240 up to 160 fps 6144 x 2592 up to 200 fps 5120 x 2700 up to 192 fps 5120 x 2160 up to 240 fps 4096 x 2160 up to 240 fps 4096 x 1728 up to 300 fps 3072 x 1620 up to 320 fps 3072 x 1296 up to 400 fps 2048 x 1080 up to 480 fps 2048 x 864 up to 600 fps |
| External Recording Modes | None |
| Sensor Crop While Recording | 8K (8192 x 4320) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw 8K (8192 x 4320) in 1.25:1 / 1.3:1 / 1.5:1 / 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic 7K (7168 x 3780) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw 7K (7168 x 3780) in 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic 6K (6144 x 3240) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw 6K (6144 x 3240) in 1.25:1 / 1.3:1 / 1.5:1 When Recording in Raw / Anamorphic 5K (5120 x 2700) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw 4K (4096 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw 3K (3072 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw 2K (2048 x 1080) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | RED IPP2 |
| Built-In Microphone Type | Mono |
| Audio Recording | 2-Channel 24-Bit 48 kHz |
| IP Streaming | MJPEG 1920 x 1080 |
Interface
| Media/Memory Card Slot | Single Slot: CFexpress Type B (CFast 2.0) |
| Video I/O | 3 x BNC (12G-SDI) Output 1 x BNC (3G-SDI) Output 1 x Proprietary Output |
| Audio I/O | 1 x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1 x LEMO 4-Pin (19.5 to 34VDC) Input 2 x D-Tap (12VDC up to 3 A) Output 1 x LEMO 2-Pin (12VDC at 3 A) Output 1 x LEMO 2-Pin (12VDC at 1.5 A) Output 1 x LEMO 2-Pin (12VDC at 1 A) Output 2 x Fischer 3-Pin (12VDC up to 3 A) Output |
| Other I/O | 1 x BNC (Genlock) 1 x LEMO 5-Pin (Timecode) 1 x 9-Pin (Ethernet) Control/Data Input/Output 1 x USB-C |
| Wireless | 2.4 / 5 GHz Wi-Fi Video Output |
| Mobile App Compatible | Yes: Android & iOS App Name: RED Control *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| Global Positioning (GPS, GLONASS, etc.) | None |
Monitor
| Size | 2.4" |
| Display Type | Fixed LCD |
Viewfinder
| Type | Optional, Not Included |
Focus
| Focus Type | Auto and Manual Focus |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Storage Humidity | 0 to 85% |
General
| Battery Type | V-Mount |
| Tripod Mounting Thread | None |
| Material of Construction | Aluminum |
| Dimensions (W x H x D) | Not Specified by Manufacturer |
| Weight | 7.99 lb / 3.62 kg |
Packaging Info
| Package Weight | 15.14 lb |
| Box Dimensions (LxWxH) | 15.5 x 11.5 x 11" |
