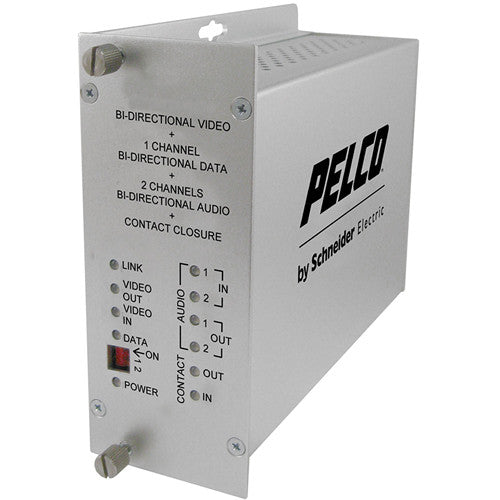

Pelco FTV10D1A2S1ST Fiber Transmitter

The Pelco FTV10D1A2S1ST Fiber Transmitter is a single mode version that provides simultaneous transmission of 1 bi-directional video channel, 1 bi-directional data channel, 2 bi-directional audio channels, and 1 bi-directional contact closure over 1 optical fiber in a 2-slot wide design.

The FTV10D1A2 transmitter provides transmission of 2 bi-directional 24-bit (96 kHz) audio signals with sample rate digital encoding for superior transmission of balanced line-level audio. The data selection offers a choice of RS-232, RS-422, and RS-485 (2-wire / 4-wire), Manchester, and Bi-Phase communication. The transmitter features a plug-and-play design that ensures ease of installation by requiring no electrical or optical adjustments.

Modular in design, FTV10D1A2 unit can be rack-mounted using the EURACK / USRACK chassis (sold separately), or stand-alone modules can be placed on a desktop or mounted to a wall (wall mount kit not required). For stand-alone and wall mount installations, external power is required for the FTV10D1 unit. The units can be powered with the recommended FEXTPS fiber external power supply (sold separately).

Note: This product requires a fiber installation with a minimum 30-dB connector return loss. 10-bit digitally encoded video for high-quality video transmission over a single fiber Single-channel bi-directional video with bidirectional data, audio, and contact closure 1 bi-directional data channel that supports RS-232, RS-422, RS-485 (2-wire / 4-wire), Manchester, bi-phase, and Coaxitron communication 2 bi-directional 24-bit (96 kHz) digitally encoded audio channels with 600?balanced line-level audio (up to +6dbm) and 20 to 18 kHz audio bandwidth 1 bi-directional contact closure Single mode support for distances up to 29.8mi (48km) Meets all requirements for RS-250C short-haul transmission Laser diode for transmission of optical signals Compatible with NTSC, PAL, and SECAM video standards Designed to meet NEMA TS-1/TS-2 and Caltrans traffic signal control equipment environmental standards Voltage-transient protection on all power and signal input / output lines LED status indicators for monitoring all critical operating parameters Certifications: UL/cUL Listed

Number of Channels	1
Video Input & Outputs	1.0 Vpp, 75 , NTSC, PAL, SECAM
Overload	>1.5 Vpp
Bandwidth	5 Hz to 10 MHz
Differential Gain	<2%
Differential Phase	<0.7°
Tilt	<1%
Signal-to-Noise Ratio	67 dB at maximum optical loss budget
Coaxial Cable Capability	Maximum (RG59): 300' (100 m) camera to fiber optic module to maintain 6 MHz bandwidth

Number of Channels	1
Data Communication	RS-232, RS-422, and RS-485 (2-wire/4-wire), Manchester, and Bi-Phase
Baud Rate	Maximum: 250 Kb/s
Operating Mode	Simplex or full-duplex
Bit Error Rate	<10 to 9 at maximum optical loss budget

Audio Channels	2 (balanced)
Input/Output Signal	Maximum 4.4 Vpp (+6 dBm)
Bandwidth	20 Hz to 18 kHz
Total Harmonic Distortion	0.02%
Signal-to-Noise Ratio	85 dB (typical)

Number of Channels	1
Interface	0.5 ms response time
Input	Dry
Output	SPST relay, 0.15 A contact rating, normally open

Wavelength	1310 / 1550 nm, multimode
Power	Surface Mount: 8 to 15 VDC at 4 W Rack Mount: Provided by rack
Number of Fibers	1
Indicators	Power

Connector	Optical: ST Power: Terminal block Video: BNC (gold-plated center pin) Data: Terminal block Audio: Terminal block Alarm: Terminal block Contact: Terminal block
Number of Rack Slots	1
Certifications & Ratings	CE, Class A FCC, Class A C-Tick Designed to meet NEMA TS 1/TS 2 and Caltrans traffic signal control equipment environmental standards

Compatible With	FRV10D1A2S1ST Receiver
Mode	Single Mode: 62.5/125 ?m
Connector Type	Fiber Optical: ST
Optical Power Budget	16 dB
Maximum Transmission Distance	29.8 mi (48 km)
MTBF	>100,000 hours
Operating Temperature	-40 to 167°F (-40 to 75°C)
Storage Temperature	-40 to 185°F (-40 to 85°C)
Relative Humidity	0 to 95%, non-condensing
Dimension (D x W x H)	6.1 × 5.3 × 2.2" (15.5 × 13.5 × 5.6 cm)
Weight	1.5 lb (0.5 kg)
