- Installs Low Voltage Component Cable
- 15A / 125V Duplex Receptacle
- SurgeBloc - Surge Suppression
- Low Profile Design
- Cable Routing Inside the Wall
- Eliminates Need for Cable Covers
- Design - Molded Mounting Wings
- Easy to Install

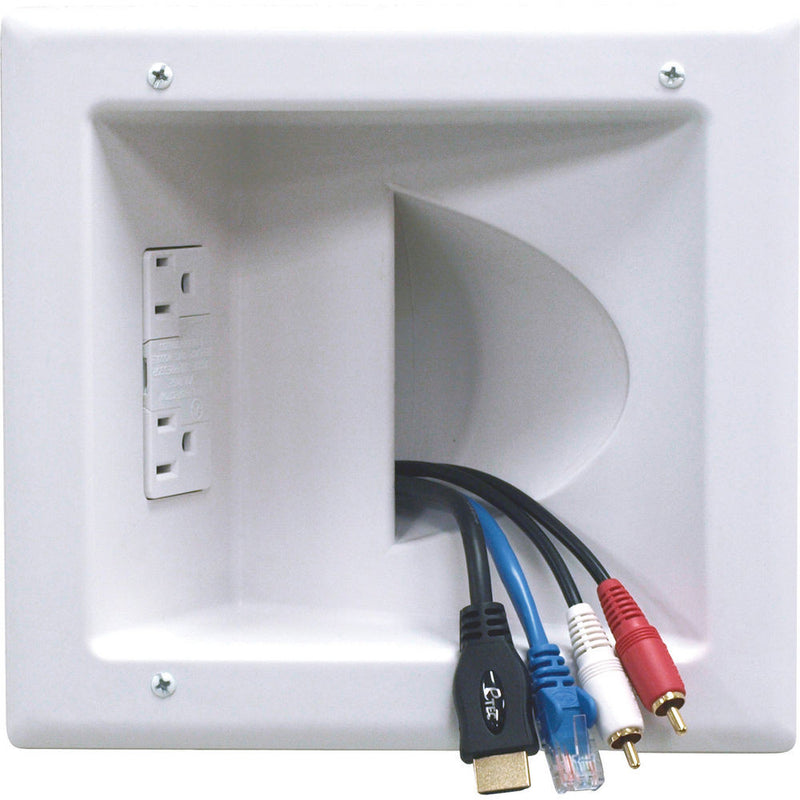

The Recessed Low Voltage Media Plate with Duplex Surge Suppressor from Peerless Industries provides a smart solution for routing low voltage component cables, such as HDMI or RCA cables, behind your flat-panel display, amplifier, or any other A/V device. Surge suppression is provided via the integrated Copper Wiring Devices SurgeBloc unit. A 15A/125V duplex receptacle is provided and enables you to discreetly power your devices from behind the flat panel display mount.
The plate's low profile design allows you to install it behind slim mounts and flat panels. All component cables are routed from inside the wall, giving your A/V equipment a clean look. The plate also incorporates surge suppression capabilities that protect your equipment from power surges due to lightning strikes, motor loads, as well as RFI (Radio Frequency Interference). A built-in alarm alerts you to surge suppression failure.
Owing to the slim design, there is no need for cable covers. With molded mounting wings that attach directly to your dry wall, you do not need additional low voltage mounting brackets. Installation is aided by the included installation template as well as a design that requires minimum tools for installation.
The Recessed Low Voltage Media Plate with Duplex Surge Suppressor is manufactured from ABS plastic and sports a white color.
- Provides a smart solution for routing low voltage component cables such as HDMI or RCA behind your flat panel display, amplifier, or any other audio / video device
- Provides surge protection via the integrated Copper Wiring Devices SurgeBloc unit
- Integrates a 15A / 125V duplex receptacle that allows you to discreetly power your devices from behind the flat panel display mount
- Allows installation behind the slimmest mounts and flat panels owing to a low profile design
- Routs all component cables from inside the wall, thus providing your audio / video equipment a clean look
- Incorporates surge suppression capabilities that protect your audio / video equipment from power surges due to lightning strikes, motor loads, as well as RFI (Radio Frequency Interference)
- Eliminates need for cable covers owing to a slim design
- Eliminates need for low voltage cable mounting brackets via molded mounting wings that directly attach to your dry wall
- Aids installation via included installation template
- Integrates an ABS plastic construction
- Sports a white color
UPC: 735029275886
| Copper Wiring Devices SurgeBloc | - Total Maximum Surge Dissipation � 340 Joules
- Maximun Surge Current � 12,000 Amps
- Peak Surge Suppression Voltage � 1,000 Volts
- Surge Protection � Hot/Neutral, Hot/Ground, Neutral/Ground
- Clamping Response Time � 1 Nanosecond
|
| Finish | ABS Plastic |
| Color | White |
| Dimensions | 8.10 x 7.58 x 3.68" (206 x 193 x 93 mm) |
| Weight | 1 lb (0.45kg) |
| Packaging Info |
| Package Weight | 1.8 lb |
| Box Dimensions (LxWxH) | 13.0 x 10.0 x 4.0" |
In the Box
Peerless-AV Recessed Low Voltage Media Plate with Duplex Surge Suppressor
- Mounting Plate
- Mounting Template
- Limited 5 Year Warranty
