Description
Panasonic DC-BS1H L-Mount Overview
- 1Description
- 2Sensor and Processing Engine
- 3V-Log
- 4Resolution
- 5Recording and Output
- 6Ethernet Compatible
- 7Supports Genlock and Timecode
- 8Bluetooth and Wi-Fi
- 9Functions

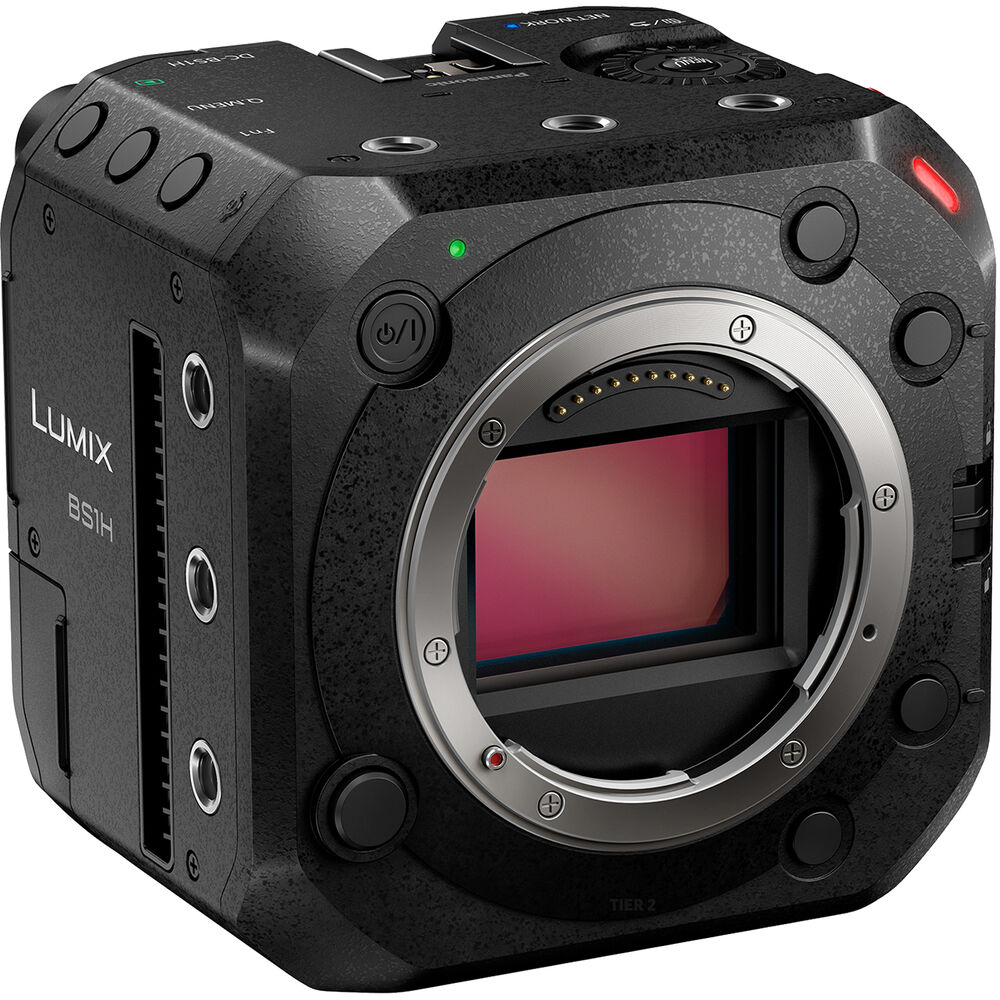

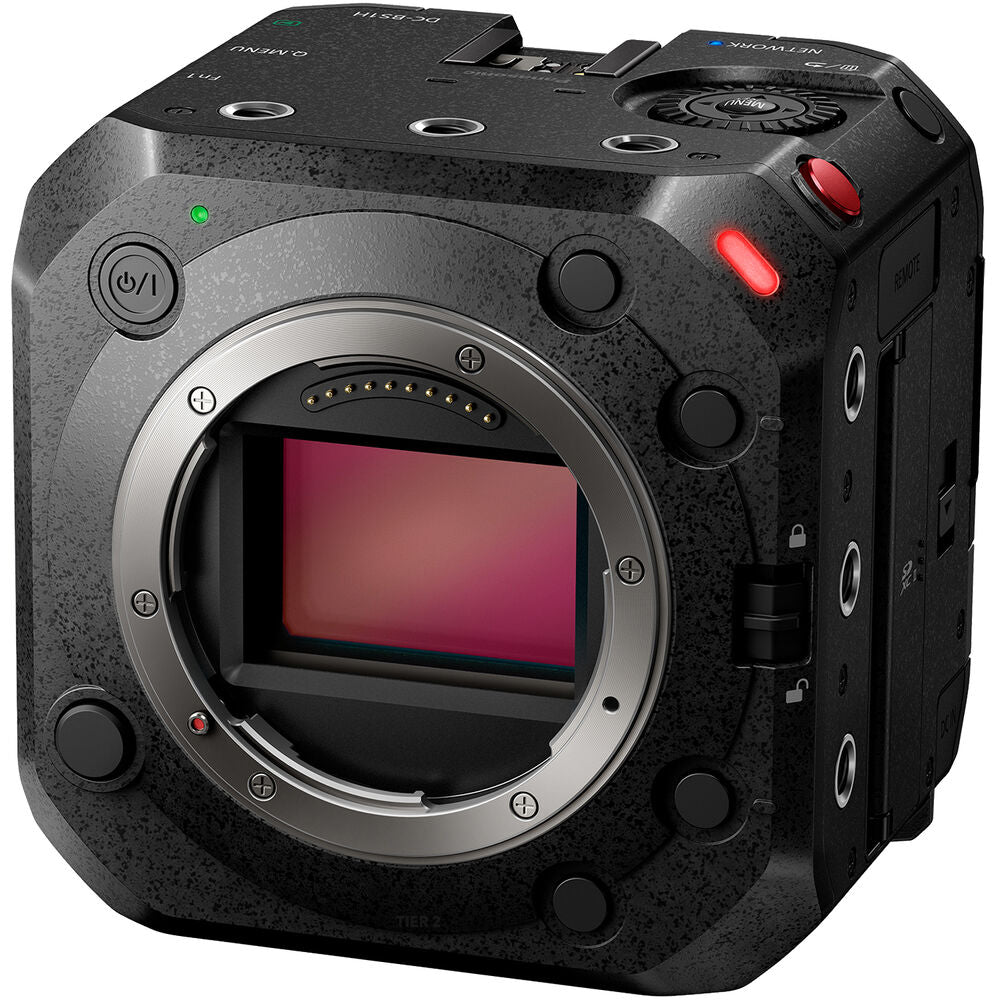

Compact and suitable for cine drones, remote setups, and expandable for cine work as well as multi-camera broadcast work, the Panasonic Lumix BS1H Box Cinema Camera is a modular digital cinema camera with a small form-factor that bellies its full-frame sensor. It features a 24.2MP sensor, a Leica L lens mount, and a wide 14+-stop dynamic range to accommodate extreme lighting changes when recording in V-Log. It records video with resolutions up to 5.9K as well as C4K (4096 x 2160) and UHD4K, and it incorporates VariCam Look workflows.
The camera features dual-native ISO using its Venus Engine, anamorphic support, advanced AF (autofocus), numerous remote and power options, and supports HLG (Hybrid Log-Gamma) color for vivid imagery to aid professional color grading. There are many features packed into this tiny camera that make it the go-to production camera in any mobile and multi-camera production environment.
The BS1H provides multiple ways to record your footage to high data rate files in the ALL-Intra, LongGOP, MOV, and MP4 recording formats with H.264 and H.265/HEVC codecs. The camera supports unlimited recording time and allows you to record 10-bit 4:2:2 video using the camera's dual SD card slots. It can output up to 4K via the HDMI 2.0 output, or you can output up to 1080p resolution via SDI. The camera allows you to output via HDMI and SDI simultaneously, so you can use one signal for monitoring and the other for recording. It also supports recording at variable frame rates for high-quality, slow-motion video. Custom 3D LUTs can be uploaded into the camera, using the SD card slots.

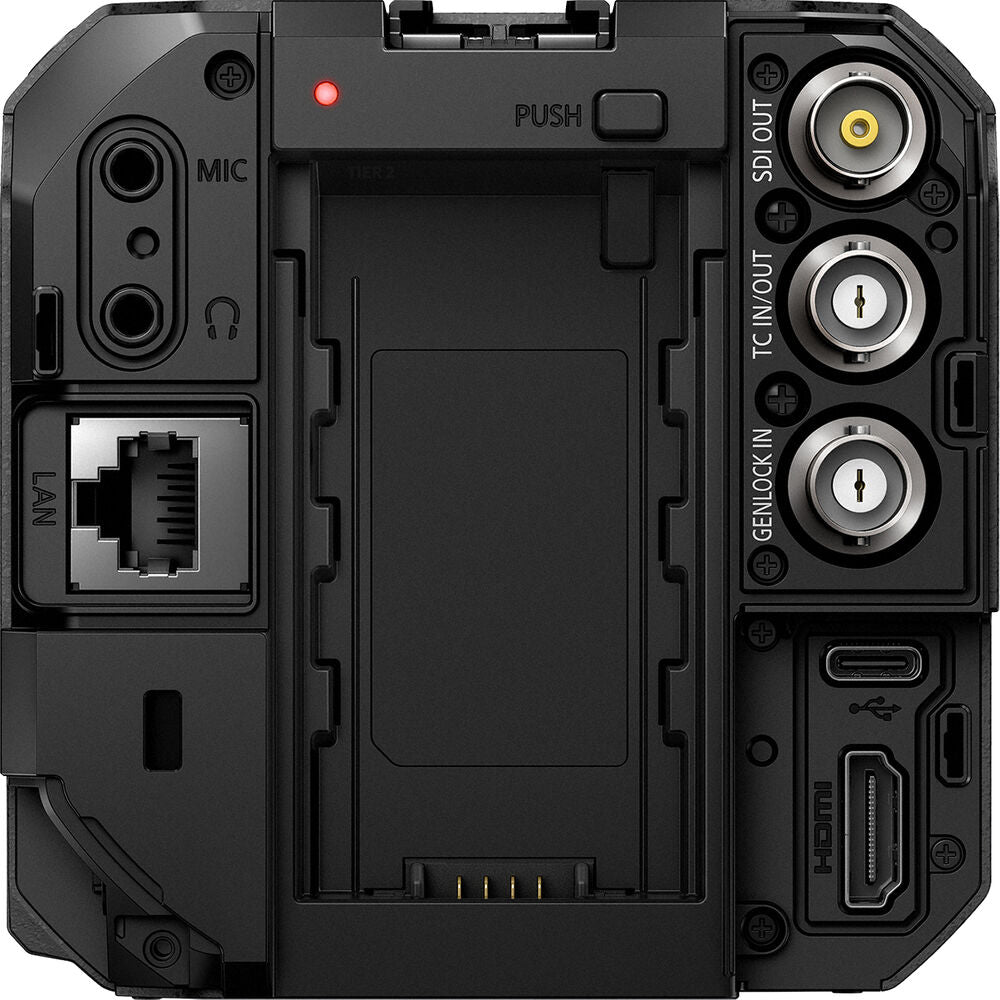

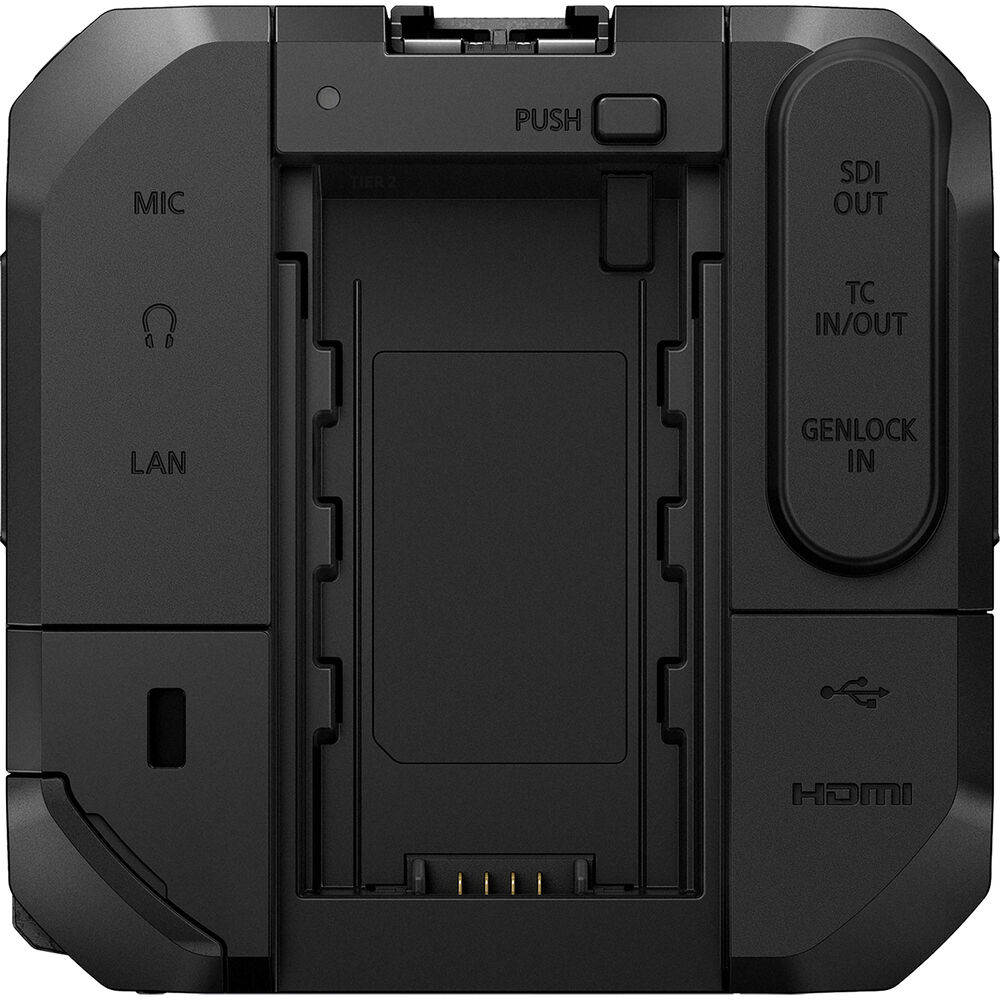

The BS1H is also an ideal camera for multi-camera environments, not only because it's highly mobile, but it includes timecode and genlock BNC ports, so you can sync it with other cameras to make syncing in postproduction easy. Its RJ45 Gigabit LAN port allows you to sync with other networked BS1H cameras, manage the camera settings and functions, and even perform direct IP streaming with a future firmware update. Wi-Fi and Bluetooth functionality are also integrated for monitoring, configuration, and control via a smartphone or tablet, using the LUMIX Sync app. Another function integrated into the BS1H is a USB 3.1 Gen 1 Type-C input to control the camera with the LUMIX Tether app, which allows you to capture still images and control up to 12 BS1H cameras. Audio features include high-grade 48 kHz/24-bit LPCM format, an integrated stereo microphone, a 3.5mm mic/line-level input, and a 3.5mm headphone output. The optional DMW-XLR1 XLR adapter can be utilized, using the camera's integrated hot shoe, allowing you to record with professional microphones.
Its compact body measures less than 4" square and weighs only 1.3 lb, so it can be used on gimbals or drones for high-quality, stabilized footage. Its internal fan keeps the camera cool during long shoots, and its aluminum and magnesium housing provides protection and adds to the cooling factor. It also features 9 x accessory mounting threads for mounting onto a plate, cage, or tripod mount. There are four user-programmable function buttons around the housing as well as tally lights on the front and rear. You can power the BS1H using the included power adapter, with a separately available high-capacity VBR-type battery using its integrated mount, or by using PoE+ (Power-over-Ethernet) via the LAN port with compatible PoE equipment.
Sensor and Processing Engine
V-Log
Resolution
Recording and Output
- The camera records internally at 4:2:2 10-Bit/8-bit as well as 4:2:0 10-bit/8-bit to dual UHS II SD card slots that support cards with speed ratings up to V90
- The camera outputs Blackmagic RAW or ProRes RAW via the HDMI port for external monitoring and/or recording
- You can simultaneously output RAW over HDMI and video over SDI
- You can record internally, while simultaneously output FHD over SDI and up to 4K over HDMI
- Using the LUMIX Tether app version 1.1 or higher or LUMIX sync, you can record internally, output over both HDMI and SDI, and output via wired LAN or Wi-Fi
Ethernet Compatible
Supports Genlock and Timecode
Bluetooth and Wi-Fi
Functions
In the Box
- Panasonic Lumix BS1H Box Cinema Camera
- AC Power Adapter
- AC Cable
- Cable Lock Band
- Body Cap
- Hot Shoe Cover
- Audio Terminal Cover
- DC In Terminal Cover
- BNC Terminal Cover
- HDMI Terminal Cover
- Remote Terminal Cover
- Limited 1-Year Warranty, Extendable to 3-Years with Online Registration
- Limited 1-Year Warranty, Extendable to 3-Years with Online Registration
Not in the Box
- Essential Recording Media (Not Included)
- Essential Cine Lenses (Not Included)
- Description
- Sensor and Processing Engine
- V-Log
- Resolution
- Recording and Output
- Ethernet Compatible
- Supports Genlock and Timecode
- Bluetooth and Wi-Fi
- Functions
Panasonic DC-BS1H L-Mount Specs
| Lens Mount | Leica L |
| Lens Communication | Yes |
| Sensor Resolution | Effective: 24.2 Megapixel |
| Sensor Type | 35.6 x 23.8 mm (Full-Frame) CMOS |
| Sensor Crop While Recording | 6K (5952 x 3968) in 3:2 5K (5888 x 3312) in 16:9 5K (5376 x 3584) in 3:2 4K (4096 x 2160) in 17:9 4K (3840 x 2160) in 16:9 1080p (1920 x 1080) in 16:9 |
| Built-In ND Filter | None |
| ISO Sensitivity | 100 to 51,200 (Native) 80 to 204,800 (Expanded) |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/16000 to 1/2 sec |
| Advertised Dynamic Range | 14 Stops |
| White Balance | 2500 to 10,000K |
| Recording Modes | H.265/H.265 Long GOP/MOV 4:2:2 10-Bit: 4096 x 2160p at 23.98/25/29.97 fps (100 to 400 Mb/s) 3840 x 2160p at 23.98/25/29.97 fps (100 to 400 Mb/s) 3328 x 2496p at 23.98/24/25/29.97 fps (150 to 400 Mb/s) 1920 x 1080p at 23.98/29.97/59.94 fps (100 to 200 Mb/s) 1920 x 1080i at 50/59.94 fps (50 to 100 MB/s) H.265/H.265 Long GOP/MOV 4:2:0 10-Bit: 5952 x 3968p at 23.98/24/25 fps (200 Mb/s) 5376 x 3584p at 25/29.97 fps (200 Mb/s) 5888 x 3312p at 23.98/25/29.97 fps (200 Mb/s) 4096 x 2160p at 23.98/24/29.97/48/50/59.94 fps (200 Mb/s) H.265/H.265 Long GOP/MOV 4:2:0 10-Bit: 1920 x 1080p at 100/119.88 fps (150 Mb/s) 1920 x 1080p at 47.95/48 fps (100 Mb/s) |
| Variable Frame Rates | DCI 4K: 2 to 60 fps 1080p: 2 to 179.82 fps |
| Gamma Curve | Panasonic V-Gamut, Panasonic V-Log |
| Audio Recording | MOV: 24-Bit 48 kHz LPCM Audio MOV: 24-Bit 96 kHz LPCM Audio MP4: 24-Bit 48 kHz LPCM Audio MP4: 24-Bit 96 kHz LPCM Audio |
| Still Image Support | None |
| Video Output | 4:2:2 10-Bit via HDMI: 4096 x 2160p at 24/25/30/50/60 fps 3840 x 2160p at 24/25/30/50/60 fps 3240 x 2160p at 24/25/30/50/60 fps 2880 x 2160p at 24/25/30/50/60 fps 1920 x 1080p at 24/25/30/50/60 fps 4:2:2 8-Bit via HDMI: 4096 x 2160p at 24/25/30/50/60 fps 3840 x 2160p at 24/25/30/50/60 fps 3240 x 2160p at 24/25/30/50/60 fps 2880 x 2160p at 24/25/30/50/60 fps 1920 x 2160p at 24/25/30/50/60 fps 4:2:2 10-Bit via SDI/BNC: 1920 x 1080p at 24/25/30/50/60 fps 1920 x 1012p at 24/25/30/50/60 fps 1620 x 1080p at 24/25/30/50/60 fps 1440 x 1080p at 24/25/30/50/60 fps 4:2:2 8-Bit via SDI/BNC: 1920 x 1080p at 24/25/30/50/60 fps 1920 x 1012p at 24/25/30/50/60 fps 1620 x 1080p at 24/25/30/50/60 fps 1440 x 1080p at 24/25/30/50/60 fps |
| Raw Output | HDMI In Full Frame Mode: 5888 x 3312 12-Bit at 23.98/25/29.97 fps HDMI In Super35 Mode: 4128 x 2176 12-Bit at 23.98/25/29.97/50/59.94 fps 3536 x 2656 12-Bit 23.98/25/29.97/50 fps |
| IP Streaming | RTP, RTSP: 1280 x 2160 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p (4.0 to 50.00 Mb/s) |
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended] |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI (HDMI 2.0) Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input on Camera Body 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body |
| Built-In Microphone Type | Stereo |
| Other I/O | 1 x USB Type-C (Camera Interface, USB 3.2 / 3.1 Gen 1) Data/Control/Video Input 1 x BNC (Timecode) Data Input/Output 1 x BNC (Genlock) Data Input/Output 1 x RJ45 (LAN) Control/Monitor/Video Input/Output 1 x 2.5 mm Sub-Mini (LANC) Control Input |
| Wireless | 2.4 GHz Wi-Fi 4 (802.11n), Wi-Fi (802.11b/g), Bluetooth Video Output, Control |
| Type | Optional, Not Included |
| Battery Type | Panasonic AG-VBR Series |
| Power I/O | 1 x Weipu SF610/S2 (12 VDC) Input |
| PoE Support | PoE+ 802.3at |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Operating Humidity | 10 to 80% |
| Tripod Mounting Thread | 2 x 3/8"-16 Female (Bottom) |
| Material of Construction | Aluminum |
| Accessory Mount | 9 x 3/8"-16 Female 1 x Hot Shoe Mount |
| Dimensions (W x H x D) | 3.7 x 3.7 x 3.1" / 9.3 x 9.3 x 7.8 cm (Without Protrusions) |
| Weight | 1.3 lb / 585 g |
| Package Weight | 2.985 lb |
| Box Dimensions (LxWxH) | 8.2 x 6.9 x 6.4" |
Panasonic DC-BS1H L-Mount Reviews
So close to being great
I've only had the camera for a couple weeks, used on one project so far, and starting to form an educated opinion. Love the size, weight and shape of this box camera. SDI out AND full size HDMI port are God sent on such a tiny body! Picture quality is fantastic and should cut nicely with its bigger sister the EVA1. Also, if you already own an EVA1 you can use the same batteries which is super convenient. It seems like a no brainer as a great camera for gimbal, car rigs or any other hard to reach places. Should also be great for interviews and other applications. But, there are a couple drawbacks. First, the rolling shutter. It is very pronounced with fast pans, so if you rig the camera for action packed hand held work it will be very noticeable. You can minimize it by using the cropped sensor mode. Second, the menu and buttons. A little confusing and doesn't seem terribly intuitive (even though I'm familiar with it from the S5). The blu
