Description
- Support for IR Source Control
- IR Control between AV Source and Display
- Connects to Active Balun Transmitter
- Supports NEC/RC5/RC6 Code
- Grunding/RCA/Zenith/Sony 12-bit Code

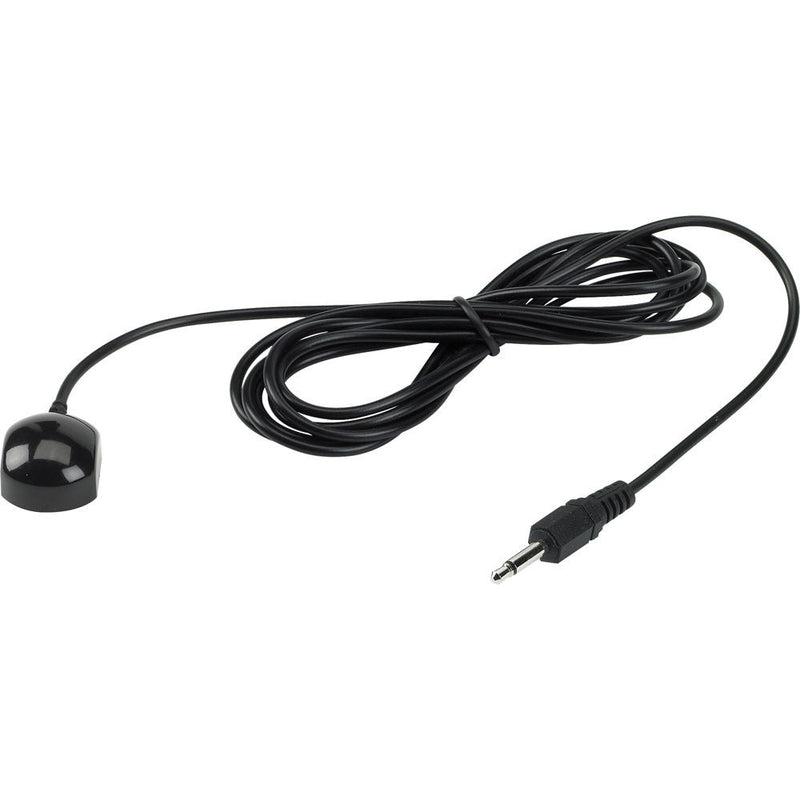

The MuxLab 500998 IR Emitter is designed to provide support for IR source control between an AV source and display. It is connected to an active balun transmitter, and when used in conjunction with an IR receiver, supports NEC code, RC5 code, RC6 code, Grunding code, RCA Code, Zenith code, and Sony 12-bit code IR data formats.
- Designed to provide support for IR source control between an AV source and display
- Connected to an active balun transmitter
- Used in conjunction with an IR receiver
- Supports NEC code, RC5 code, RC6 code, Grunding code, RCA Code, Zenith code, and Sony 12-bit code IR data formats
UPC: 627699009987
| Environment | Infra-red (IR) control |
| Devices | TV Sets, STB, DVD, DVR, PVR, satellite receivers |
| Compatible With | 500145, 500405, and 500406 P/Ns |
| Transmission | Transparent to the user |
| IR Data Format Supported | NEC code, RC5 code, RC6 code, Grundig code, RCA Code, Zenith code and Sony 12-bit code |
| Carrier Frequency | 38 kHz |
| IR Wavelength | 940nm |
| Connector | 3.5mm (mono) plug |
| Temperature | Operating: 32 to 104º F (0 to 40º C) Storage: 14 to 158º F (-10 to 70º C) Humidity: Up to 95% non-condensing |
| Enclosure | Dark purple epoxy resin |
| Dimensions | 0.79 x 0.95 x 0.51" (20 x 24 x 13 mm) with 71" (1.8m) cable |
| Weight | 0.64oz (18g) |
| Regulatory | RoHS |
| Packaging Info | |
|---|---|
| Package Weight | 0.06 lb |
| Box Dimensions (LxWxH) | 9.0 x 6.0 x 1.0" |
In the Box
MuxLab 500998 IR Emitter
- 2-year Warranty
