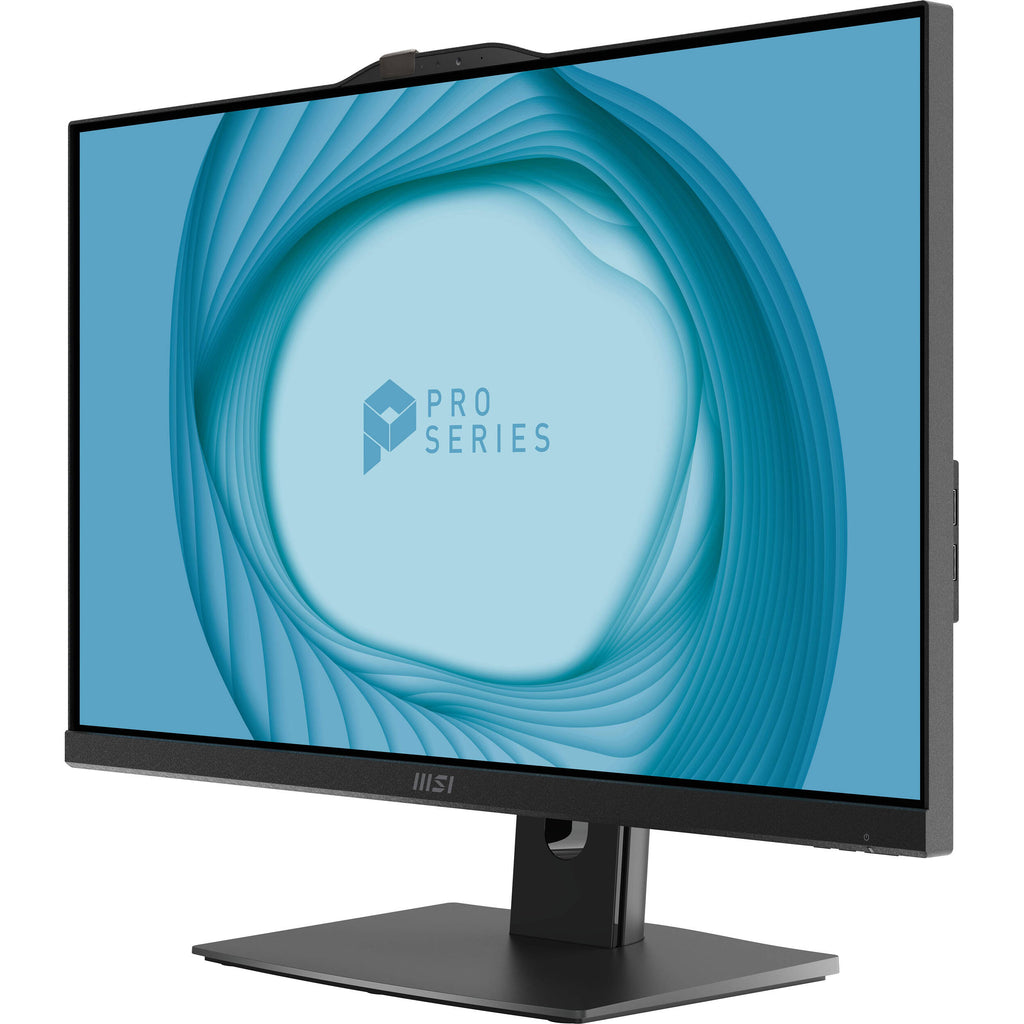

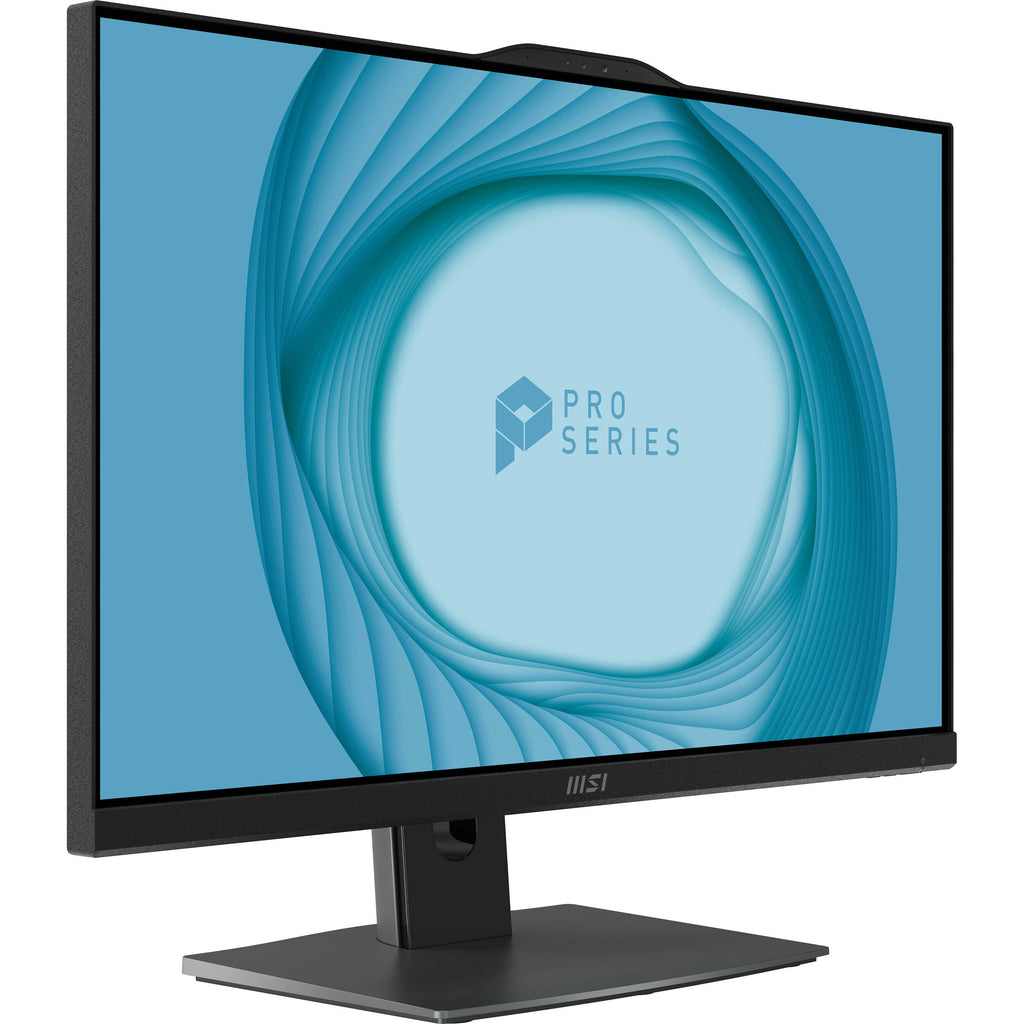

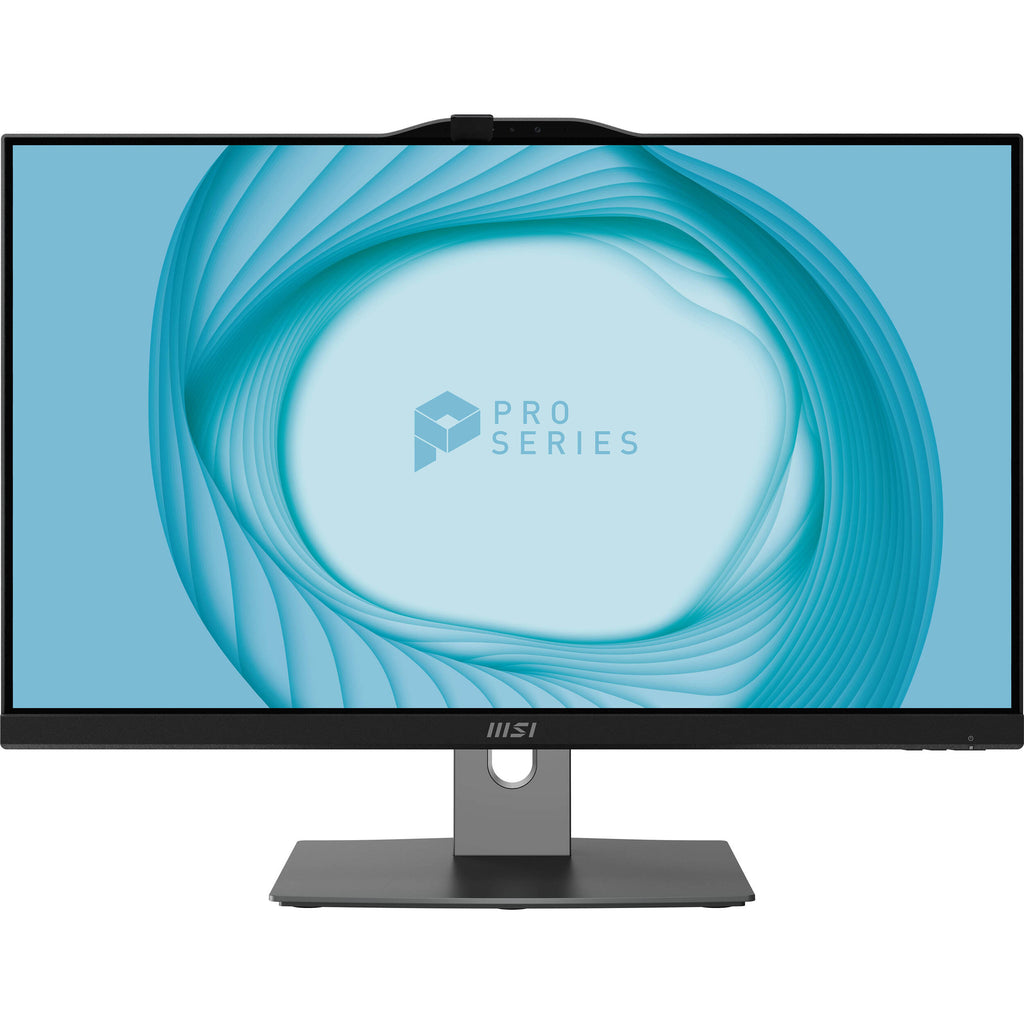

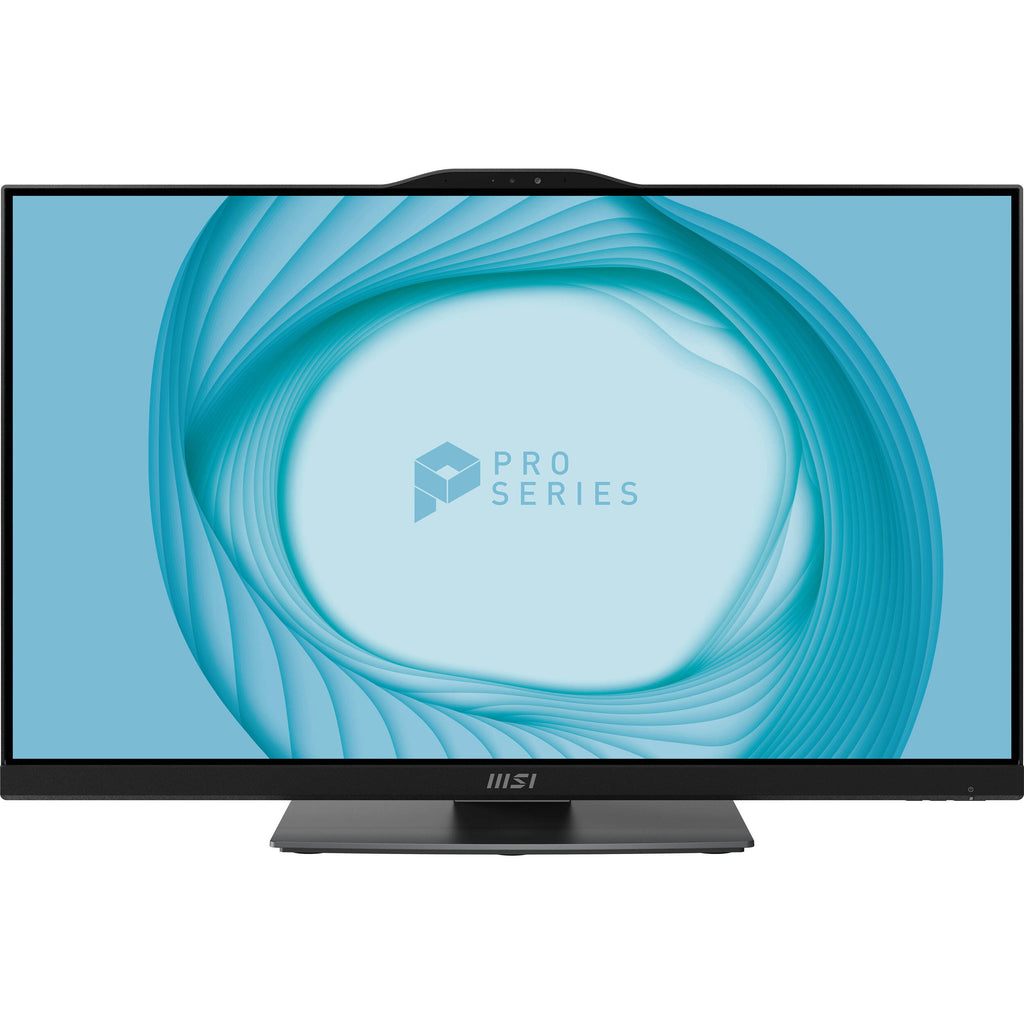

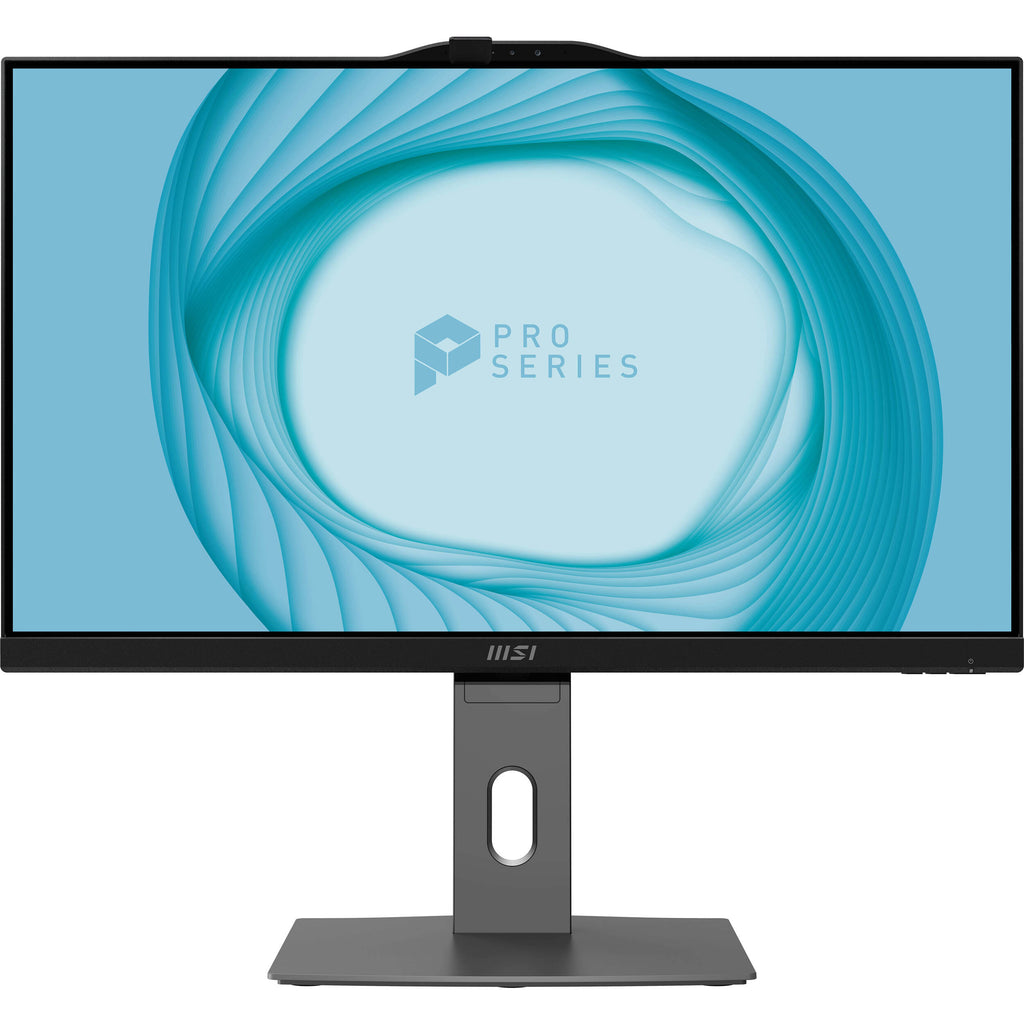

MSI PRO AP243TP Overview
Designed for business professionals looking to streamline their productivity, the MSI 23.8" PRO AP243TP 12M Multi-Touch All-in-One Desktop Computer provides a solid foundation allowing you to draft documents, design graphics, and even enjoy some of your favorite streaming media.
Equipped with a 12th Gen Intel Core i7 processor, you can leverage Intel's hybrid processor design that gives you Performance and Efficiency core frequencies up to 4.9 and 3.6 GHz, respectively. With 16GB of DDR4 RAM and a 500GB M.2 PCIe NVMe SSD, you have enough storage space to save your most essential files, documents, and even family photos. The 23.8" FHD In-Plane Switching (IPS) display backed by integrated Intel UHD Graphics boasts a resolution of 1920 x 1080, giving you a clear and smooth picture. Connect various peripherals such as the wireless keyboard and mouse receiver with two USB-A 2.0 ports. Two USB-A 3.2 Gen 1 and one USB-A Gen 3.2 Gen 2 port boast data transfer speeds up to 5 and 10 Gb/s, respectively, offering support for resource demanding peripherals such as storage drives, adapters, and more. A single USB-C 3.2 Gen 2 port is also available, supporting a wide range of devices that feature the reversible design. Bluetooth technology allows you to use wireless devices such as headphones for true untethered freedom. Connect to your network with wired and wireless options thanks to the Gigabit Ethernet LAN port and Wi-Fi 6 (802.11ax) capabilities, enabling you to access cloud storage, send emails, and even enjoy your favorite streaming media.
Talk to your friends, family, and coworkers with the integrated webcam and mic array that provides others with a clear picture and audio. For private listening, a 3.5mm audio jack is available and compatible with a wide range of wired headsets. The webcam is also compatible with Windows Hello sign-in feature, getting you into your system even quicker. The webcam cover also blocks the lens, giving you privacy when you want it.
Integrated system security and privacy features from tobii Aware safeguards your information from prying eyes. Privacy Screen, Auto-Lock, and Peeker Detection all distort or lock the screen when you are away from your workstation. Dim Screen saves power by dimming the display while you walk away and brightens it when you return. Windows Snap enhancements allows you to snap your selected window between screens based on your attention.
The Pro includes DisplayPort and HDMI video out ports, allowing it to send video signals to two optional monitors to enhance productivity.
Trusted Platform Module (TPM) adds a layer of enhanced security to your system by prevent bootups in the event of detected unauthorized access. It also safeguards passwords and sensitive data using encryption keys for advanced security.
Immerse yourself in lossless music and premium sound quality with DTS Audio Processing. Experience and listen to natural sounding audio, music, videos, and more.
Designed with Silent Pro Cooling technology, the Pro ensures a quiet operation to prevent distracting sounds from interfering.

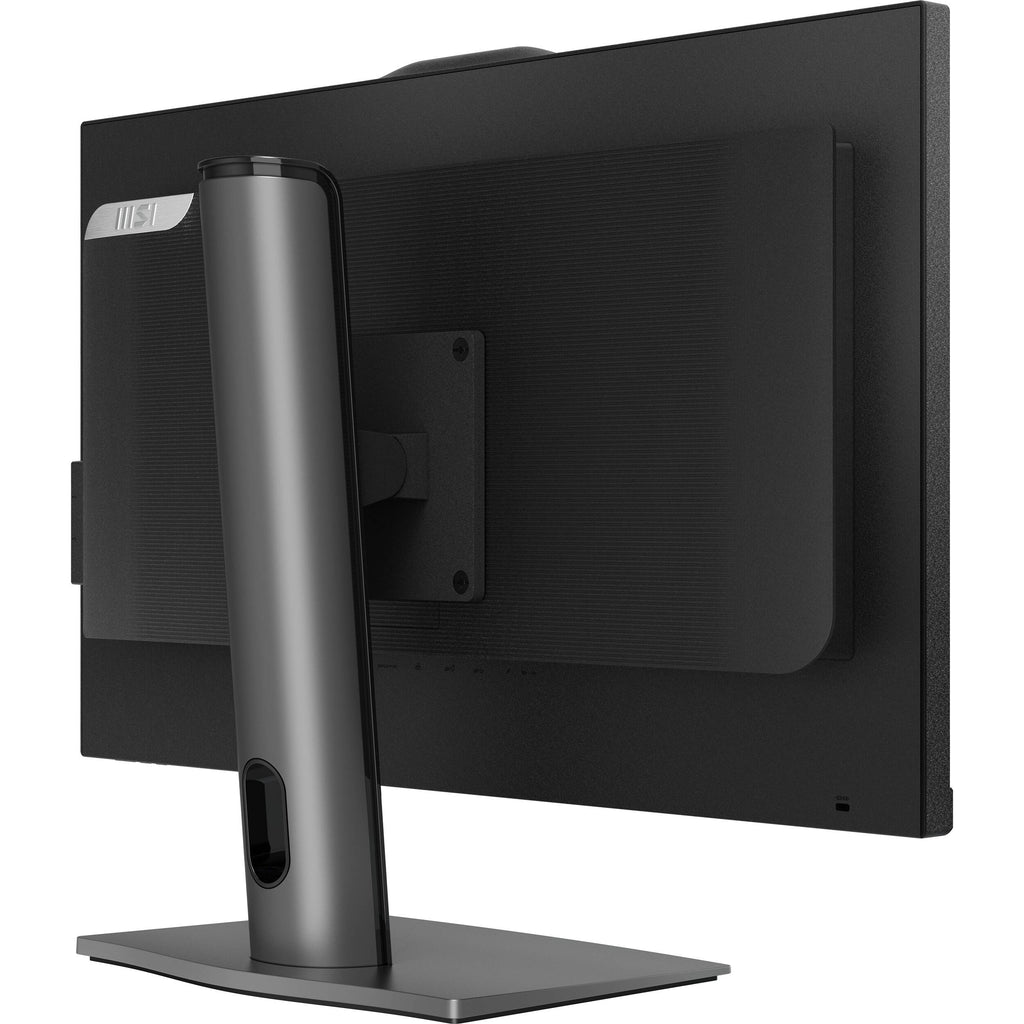

Optimize your viewing position with the adjustable stand that supports height and tilt adjustments.
Anti-Flicker technology reduces eye strain and fatigue, allowing you to work without causing potential damage to your eyes.
Windows 11 has been completely redesigned from its predecessor to emphasize productivity, creativity, and ease of use. The customizable Start Menu is now at the center of the taskbar and utilizes the cloud, allowing you to quickly find and access recent files, regardless of what platform or device was previously used to view them. The streamlined Start Menu design also lets you pin apps and recent files in addition to powering down the system.
Making Productivity a Snap
Multitask with speed and efficiency with the ability to snap apps side by side. Snap Layouts and Snap Groups help to keep your windows organized using different layouts that are designed to fully optimize your screen space, no matter its size and resolution. Windows 11 also remembers their positions, so you can resume from where you left off when selecting Snap Groups from the task bar, allowing you to switch between both individual applications and entire projects. Snap Layouts are also automatically restored when docking laptops with external monitors.
Microsoft Teams Integration
Stay connected with friends, family, coworkers, and clients with Microsoft Teams Chat integrated onto the Windows 11 taskbar. With a touch, you can connect to your contacts via text, voice, and video, regardless of whether they're using Windows, Android, or iOS devices. You can also communicate with those who don't have the Teams app installed using two-way SMS messaging.
The Adaptive Input feature automatically optimizes the Windows 11 interface to however you prefer to interact with your device, whether it's using a mouse, keyboard, touch, voice, or handwriting.
Windows 11 is designed to deliver smooth, immersive gaming experiences with DirectX 12 Ultimate providing realistic graphics at high frame rates while Auto HDR automatically adjusts your game's lighting and contrast for high dynamic range. DirectStorage technology streamlines data access to better take advantage of high-speed devices such as NVMe solid-state drives and directly from graphics cards without dragging down the CPU, which minimizes load times while helping to reduce artifacts such as texture popping. Topping it all off is Xbox Game Pass integration, which provides you with access to a massive library of games with a membership subscription.
Redesigned Microsoft Store
The Microsoft Store is rebuilt from the ground up for a streamlined experience when looking for content such as apps, games, movies, and shows. Apps downloaded from the Store have been tested for security and family safety. Android apps will also be available on the Microsoft Store through the Amazon Appstore and can be used directly on your PC from the taskbar or Start Menu.
In the Box
- MSI 23.8" PRO AP243TP 12M Multi-Touch All-in-One Desktop Computer
- Wireless Keyboard
- Wireless Mouse
- USB Receiver
- Adjustable Stand
- AC Adapter & Cable
- Limited 3-Year Manufacturer Warranty
MSI PRO AP243TP Specs
Operating System |
Windows 11 Home |
Performance
Processor |
Intel Core i7-12700 (12th Gen) |
CPU |
2.1 to 4.9 GHz Performance 8-Core 1.6 to 3.6 GHz Efficiency Quad-Core |
L3 Cache |
25 MB |
Graphics Type |
Integrated |
GPU |
Intel UHD Graphics 770 |
Memory Type |
DDR4 |
Total Installed Memory |
16 GB |
Memory Configuration |
2 x 8 GB (User-Replaceable) |
Maximum Memory Capacity |
64 GB |
Memory Slot Type |
288-Pin DIMM |
Memory Slots |
2 (0 Available) |
Buffered Memory |
No |
ECC Memory |
No |
Display
Panel Type |
IPS-Type LCD |
Size |
23.8" |
Aspect Ratio |
16:9 |
Resolution |
1920 x 1080 |
Touchscreen |
Yes |
Finish |
Anti-Glare / Matte |
Refresh Rate |
60 Hz |
Storage and Expansion
Total Installed Capacity |
500 GB |
Solid State Storage |
1 x 500 GB M.2 NVMe PCIe |
Optical Drive |
None |
I/O
Ports |
2 x USB-A 2.0 2 x USB-A 3.0 / 3.1/3.2 Gen 1 1 x USB-A 3.1/3.2 Gen 2 |
USB-C |
1 x USB 3.1/3.2 Gen 2 |
Display |
1 x HDMI Input 1 x DisplayPort Output |
Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output 1 x 1/8" / 3.5 mm Microphone Input |
Built-In Speakers |
2 x 2.5 W |
Built-In Microphones |
Yes |
Media/Memory Card Slot |
None |
Communications
Ethernet |
1 x RJ45 (Gigabit) |
Wi-Fi |
Wi-Fi 6 (802.11ax) with MU-MIMO Support |
Bluetooth |
Yes |
NFC |
No |
Webcam |
User-Facing: 2 MP (1080p) |
Keyboard & Mouse
Keyboard |
Wireless Full-Size Keyboard |
Pointing Device |
Wireless Mouse |
General
Mounting-Hole Pattern |
100 x 100 mm |
Dimensions |
21.34 x 16.79 x 8.97" / 54.2 x 42.65 x 22.78 cm |
Weight |
10.21 lb / 4.63 kg |
