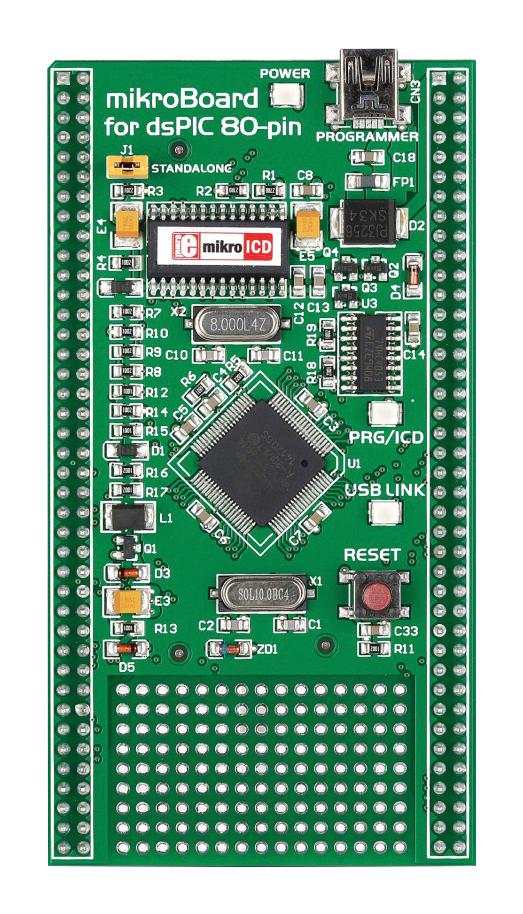

MIKROE-705 is a mikroBoard for dsPIC with dsPIC30F6014A. The mikroBoard is miniature development tool which includes microcontroller, programmer, small proto board and two 2x40 female headers for connection with UNI-DS6 development system. Main purpose of the mikroBoard is usage as MCU card for UNI-DS6 development system. For connection with the UNIDS6 mikroBoard use two 2x40 female headers. Integrated part of mikroBoard is programmer which is used for MCU programming. To connect on-board programmer with a PC mikroBoard use USB cable.
- dsPIC/PIC24 (16-bit) architecture
- On-board programming
- USB powered
Product details
| Silicon Manufacturer |
Microchip |
| Core Architecture |
dsPIC |
| Core Sub-Architecture |
dsPIC30 |
| Silicon Core Number |
DSPIC30F6014A |
| Silicon Family Name |
dsPIC30F |
| For Use With |
16-Bit dsPIC/PIC24/UNI-DS6 Development Boards |
| Kit Contents |
MCU Card DSPIC30F6014A |
| Product Range |
- |
Other details
| Brand |
MIKROELEKTRONIKA |
| Part Number |
MIKROE-705 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
