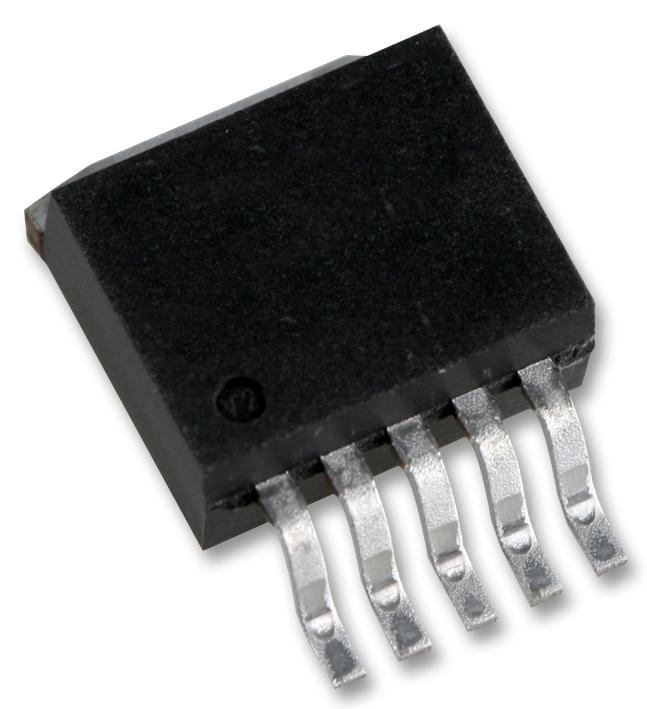

MICROCHIP MIC29302WU-TR LDO Voltage Regulator, Adjustable, 2.25V to 26V input, 370 mV drop., 1.25V to 25V/3A out, TO-263-5

The MIC29302WU TR is a high-current, high-accuracy, low-dropout Voltage Regulator. Using Micrel's proprietary Super βeta PNP® process with a PNP pass element, these regulators feature 350mV to 425mV (full load) typical dropout voltages and very low ground current. Designed for high-current loads, these devices also find applications in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. The 29300 is fully protected against over current faults, reversed input polarity, reversed lead insertion, over-temperature operation and positive and negative transient voltage spikes. Five-pin fixed voltage versions feature logic-level on/off control and an error flag which signals whenever the output falls out of regulation. Flagged states include low input voltage (dropout), output current limit, over-temperature shutdown and extremely high voltage spikes on the input.

• High current capability
• Low ground current
• Accurate 1% guaranteed tolerance
• Extremely fast transient response
• Reverse-battery and load dump protection
• Zero-current shutdown mode (5-pin versions)
• Error flag signals output out-of-regulation (5-pin versions)
• Fixed voltage and adjustable versions

Applications

Power Management, Computers & Computer Peripherals, Automotive
