Description
Kinefinity MAVO LF MKII Overview
- 1Description
- 2MAVO mark2 6K LF: Cinematic Large-Format Performance
- 3CMOS Image Sensor
- 4Comprehensive Lens Options
- 5Advanced Processing
- 6Lightweight, Integrated Body
- 7Frame Rate and Resolution Options
- 8Full-Frame Anamorphic
- 9Accessory Options
- 10Flexible Recording Media
By Photo's
Mary Latvis
MAVO mark2 6K LF: Cinematic Large-Format Performance
Combining a high-performance processor with the same full-frame 3:2 CMOS image sensor found in the MAVO Edge 6K, the
MAVO mark2 6K LF Digital Cinema Camera from
Kinefinity offers high 6K frame rates up to 96 fps, detailed highlights, organic images, and outstanding low-light performance with dual native 800/5120 ISOs. When used with a separately available, adaptable KineMOUNT, the MAVO mark2 LF is compatible with both EF, PL, and LPL mounts and new active PL and Sony E-mount adapters.
CMOS Image Sensor
- Combines a 3:2 full-frame CMOS image sensor and advanced processing.
- Captures organic, cine-style images with increased highlight details and low noise.
- High frame rate options include up to 6K 96 fps for creating beautiful slow-motion sequences.
- Kine LOG3 gamma recording preserves the complete dynamic range captured by the sensor.
Comprehensive Lens Options
- The MAVO mark2 LF offers the broadest range of lens compatibility, working with almost any lens.
- Compatible with cine-style, EF-mount, and electronic Sony E-mount lenses and more using adapters.
- The separately available, durable KineMOUNT can be quickly adapted for use with EF, PL, and LPL adapters.
- Use the MAVO mark2 LF with the new active Pl and Sony E-mounts to add electronic control when using compatible lenses.
- The separately available active lens mounts support focus, iris, zoom, and image stabilization functions.
- The active Sony E-mount supports lens metadata display and transfer as does the active PL mount (Cooke/i technology).
Advanced Processing
- High-performance computing provides advanced color processing and better highlight performance.
- Greater storage bandwidth enables Apple ProRes 4444/XQ clips to be recorded to KineMAG Nano SSDs.
- Upload custom 3D LUTs or use the Rec.709 neutral in-camera LUT.
Lightweight, Integrated Body
- The compact MAVO 6K LF body weighs just over 3 lb, suiting it for handheld and gimbal use.
- Interfaces include two proprietary video outputs, one HD video output, and a control port.
- The MAVO mark2 LF offers multichannel audio recording, an RS-232 port, and an RS power/trigger port.

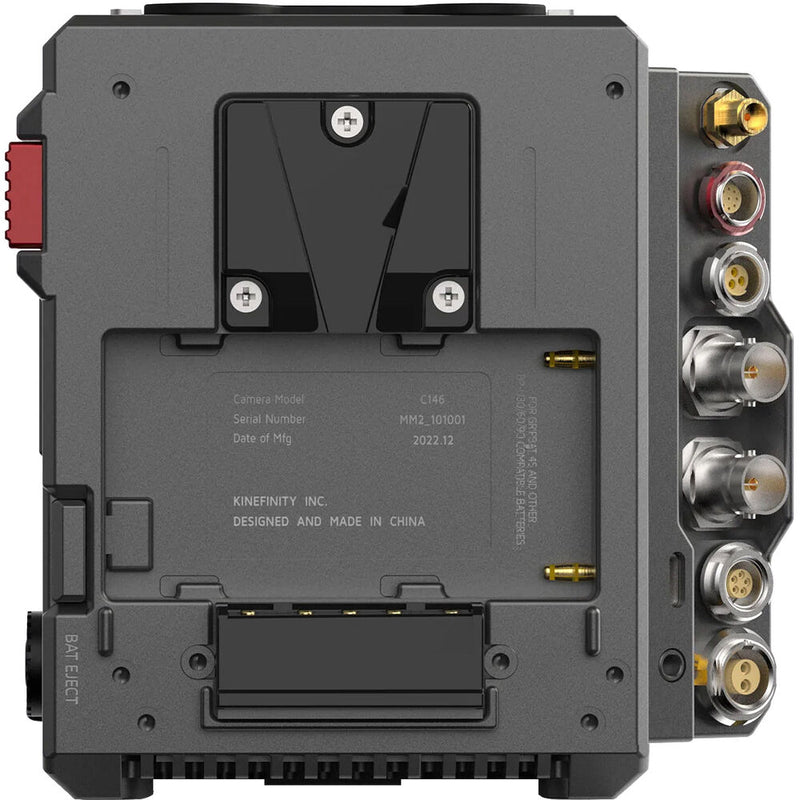

- A hybrid battery plate supports both 14.8V V-mount and smaller BP-U batteries.
Frame Rate and Resolution Options
- The MAVO mark2 LF offers Apple ProRes recording options ranging from 422LT to 4444XQ.
- Full frame rate and resolution options are available at rates up to 6K in 4444XQ.
- These ProRes codecs speed up your workflow, saving significant time in post-production.
- Set the Raw cDNG compression ratio to 3:1, 5:1, or 7:1 for DaVinci Resolve compatibility.
Full-Frame Anamorphic
- The MAVO mark2 LF provides a large, full-frame canvas ideal for anamorphic images.
- Offers both 4:3 5376 x 3984 or 6:5 4864 x 3984 anamorphic modes.
- Images are de-squeezed in the camera to a 65mm format when using full-frame anamorphic lenses.
Accessory Options
- The MAVO mark2 LF is compatible with Kinefinity TERRA accessories.
- An OLED viewfinder, 5 or 7" monitor, and SideGrip are available separately.
- Use with the separately available KineBACK-W to add dual 3G-SDI, dual XLR audio, timecode, sync, and additional interfaces.
Flexible Recording Media
- Record using the proprietary 1TB or 2TB KineMAGs with read-only and RAID 5 safety features.
- Use the KineMAG Nano Body to record to third-party NVMe M.2 2280 SSDs.
In the Box
- Kinefinity MAVO mark2 6K LF Large-Format Digital Cinema Camera (No Lens Mount)
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Lens Adapters (Not Included)
Table of Contents
- Description
- MAVO mark2 6K LF: Cinematic Large-Format Performance
- CMOS Image Sensor
- Comprehensive Lens Options
- Advanced Processing
- Lightweight, Integrated Body
- Frame Rate and Resolution Options
- Full-Frame Anamorphic
- Accessory Options
- Flexible Recording Media
Kinefinity MAVO LF MKII Specs
Imaging
| Lens Mount | None |
| Sensor Resolution | Effective: 25 Megapixel (6144 x 4016) |
| Image Sensor | 24 x 16 mm (Full-Frame) CMOS |
| Image Stabilization | None |
| Built-In ND Filter | None |
| Capture Type | Video Only |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| ISO Sensitivity | 800 to 3200 (Extended: 800 to 5120) |
| Shutter Angle | 0.7 to 358° |
| Advertised Dynamic Range | 14 Stops |
Video Capture
| Internal Recording Modes | RawProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT/ProRes 4444/ProRes 4444XQ 10/12-Bit 6144 x 4016 from 0.2 to 60.00 fps 6144 x 3240 from 0.2 to 75 fps 6144 x 2516 from 0.2 to 96 fps 5760 x 3240 from 0.2 to 75 fps 5120 x 2700 from 0.2 to 90 fps 5120 x 2160 from 0.2 to 112 fps 5760 x 3840 from 0.2 to 60.00 fps 5120 x 3840 from 0.2 to 60.00 fps 4864 x 3840 from 0.2 to 60.00 fps ProRes/ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT/ProRes 4444/ProRes 4444XQ 10/12-Bit 3840 x 2460 from 0.2 to 60.00 fps 3840 x 2160 from 0.2 to 75 fps 3840 x 1600 from 0.2 to 96 fps 3456 x 2460 from 0.2 to 60.00 fps 3072 x 2460 from 0.2 to 60.00 fps |
| External Recording Modes | None |
| Sensor Crop Modes | Four Thirds 4096 x 3072 4096 x 2160 4096 x 1720 3840 x 2160 3840 x 1600 2048 x 1080 2048 x 860 1920 x 1080 1920 x 800 Super16 2048 x 1080 2048 x 860 1920 x 1080 1920 x 800 |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | KineLOG3, Rec709 |
| Built-In Microphone Type | Mono |
| Audio Recording | 2-Channel 24-Bit 48 kHz LPCM Audio |
| IP Streaming | None |
Interface
| Media/Memory Card Slot | Single Slot: KineMAG Nano SSD |
| Video I/O | 2 x Proprietary Output 1 x BNC Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Power I/O | 1 x LEMO 2-Pin (11 to 19VDC up to 3 A) Input |
| Other I/O | 1 x LEMO 4-Pin Control |
| Wireless | 5 GHz Wi-Fi Video Output, Control |
| Mobile App Compatible | Yes: Android & iOS App Name: Kinefinety App Functionality: Adjust Settings, Remote Control, View Live Feed *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Global Positioning (GPS, GLONASS, etc.) | None |
| Focus Type | Auto and Manual Focus |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
General
| Battery Type | V-Mount |
| Power Consumption | 23 W |
| Tripod Mounting Thread | 1 x 1/4"-20 Female 2 x 3/8"-16 Female |
| Accessory Mount | 4 x 1/4"-20 Female |
| Material of Construction | Aluminum |
| Dimensions (W x H x D) | 4.9 x 4.2 x 4.2" / 124 x 107 x 106 mm |
| Weight | 3.02 lb / 1.37 kg |
Packaging Info
| Package Weight | 4.67 lb |
| Box Dimensions (LxWxH) | 10.6 x 7.8 x 6.5" |
