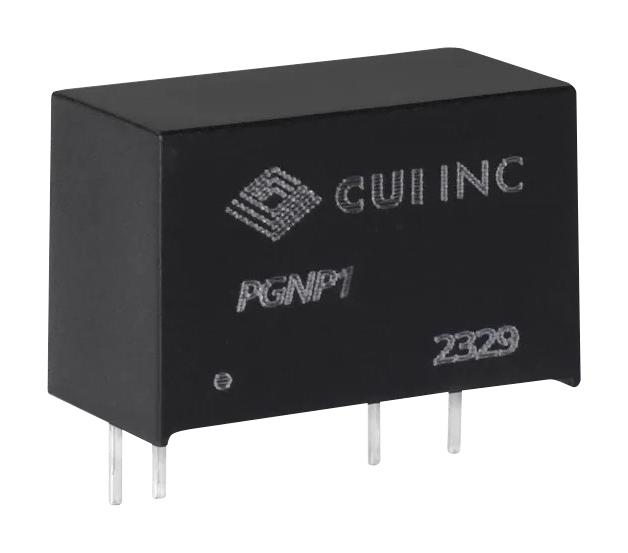

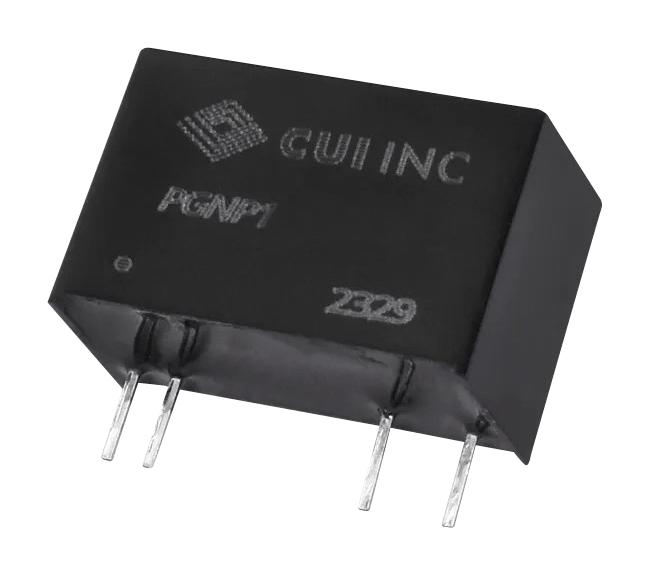

PGNP1-S12-D5-S is a PGNP1-S series of DC to DC converter that offers 1W of power, a 1:1 input range, and a wide operating temperature range of -40 to +105°C. Housed in a compact SIP package, this family of 1W isolated module is EN 60601-1 and UL 60601-1 certified, making it an ideal solution for medical instrumentation, consumer electronics, EV charging, and industrial electronics applications.
- Unregulated dual output
- 10.8V to 13.2V input voltage range, ±5VDC output voltage
- ±100mA maximum output current, 79% efficiency
- 6000VDC isolation
- Designed to meet EN 62368-1
- Leakage current is less than 2µA
- Continuous output short circuit protection
- Reinforced insulation, black flame-retardant and heat-resistant plastic (UL94V-0) case
- 200KHz switching frequency at nominal input, full load
- Dimension is 19.50mm x 9.80mm x 12.50mm
Product details
Power Supply Applications:
ITE & Medical
|
Input Ratio:
1:1
|
Output Power Max:
1W
|
No. of Outputs:
2 Output
|
Output Voltage - Output 1:
5V
|
Output Current - Output 1:
100mA
|
Output Voltage - Output 2:
-5V
|
Output Current - Output 2:
-100mA
|
Output Regulation:
Unregulated
|
Isolation Voltage:
6kV
|
DC / DC Converter Type:
SIP
|
Input Voltage DC Nom:
12V
|
DC / DC Converter Output Type:
Fixed
|
Width:
9.8mm
|
Height:
12.5mm
|
Depth:
19.5mm
|
Input Voltage DC Min:
10.8V
|
Input Voltage DC Max:
13.2V
|
Product Range:
PGNP1-S Series
|
Other details
Brand |
CUI |
Part Number |
PGNP1-S12-D5-S |
Quantity |
Each |
Technical Data Sheet EN |
|
