- Up to 400' Unobstructed Operating Range
- Balanced XLR Mixed Output
- Balanced XLR Discrete Output
- 1/4" Output for Amp or Mixer
- Recessed Compact Dipole Antenna
- Bodypack Transmitters with On/Off/Mute
- +10 Hours Battery Life
- Battery Life Indicator on Transmitter
- Includes Guitar Cable and Headworn Mic

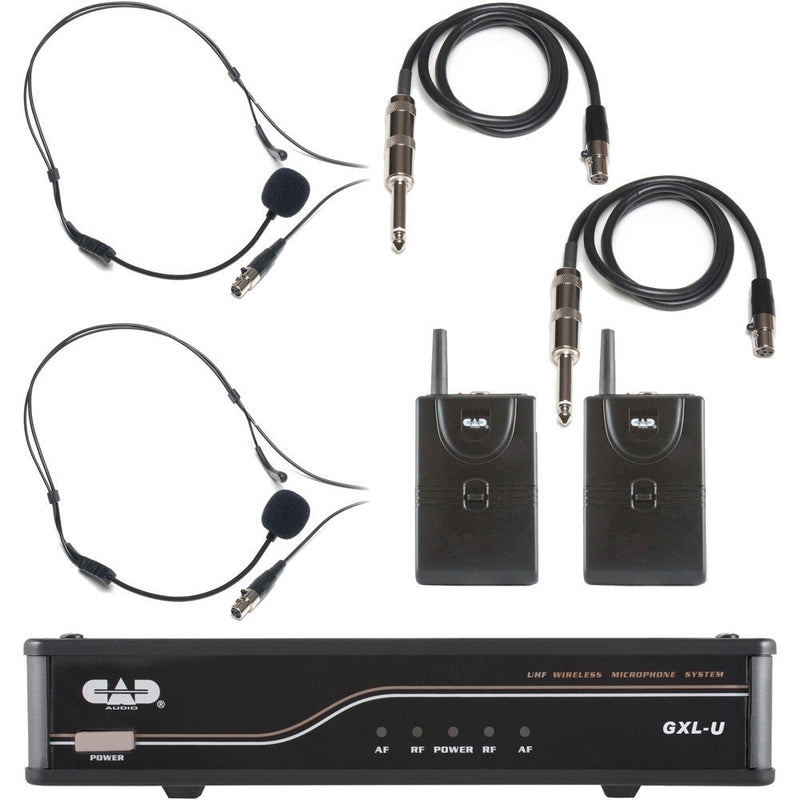

The CAD UHF Dual Channel 2 Bodypack Wireless Microphone and Guitar System (K) is intended for live sound reinforcement. The system consists of two wireless bodypack transmitters and a two-channel UHF receiver station. The bodypack transmitters feature on, off, and mute functions to conserve battery life. Both operate on two AA batteries and will last for more than 10 hours before requiring recharge or replacement. The bodypack system includes a WXGTR guitar cable and a WXHW headworn condenser microphone for a variety of wireless applications.
The dual-channel receiver features a power button and LED indicators for power, radio signal, and audio signal. The back of the device includes a DC power jack, volume controls for channels A and B, balanced XLR connectors for channels A and B, and an unbalanced 1/4" connector for channel B. The top of the device features a recessed compact dipole antenna for improved reception of the UHF spectrum.
UPC: 631922106541
| Receiver |
| Maximum Output Level | 6 dBV |
| Output Impedance | 800 ? |
| Frequency Response | 20 to 20,000 Hz |
| Frequency Band | UHF |
| Transmission Channels | K: 543.1 MHz / 554.5 MHz |
| RF Sensitivity | -105 dBm |
| Working Range | Up to 400' (122 m) |
| Output Connectors | 2 x balanced XLR-Male
1 x unbalanced 1/4" |
| Dimensions (W x D x H) | 15 x 11 x 3.0" (38 x 28 x 7.6 cm) |
| Weight | 3.0 lb (1.4 kg) |
| Bodypack Transmitter |
| Frequency Response | 40 to 20,000 Hz |
| Dynamic Range | >105 dBA |
| Maximum Input Level | Microphone Input: -6 dBV
Instrument Input: +10 dBV |
| Transmitter | RF Output: 10 mW |
| Modulation | FM |
| Power Requirements | 2 x AA alkaline or rechargeable batteries |
| Battery Life | >10 hours (alkaline) |
| Dimensions | Not specified by the manufacturer |
| Weight | Not specified by the manufacturer |
| Packaging Info |
| Package Weight | 2.85 lb |
| Box Dimensions (LxWxH) | 15.3 x 11.1 x 3.1" |
In the Box
CAD UHF Dual Channel 2 Bodypack Wireless Microphone and Guitar System (K)
