- 9.9 Gbps Digital Video Transmission

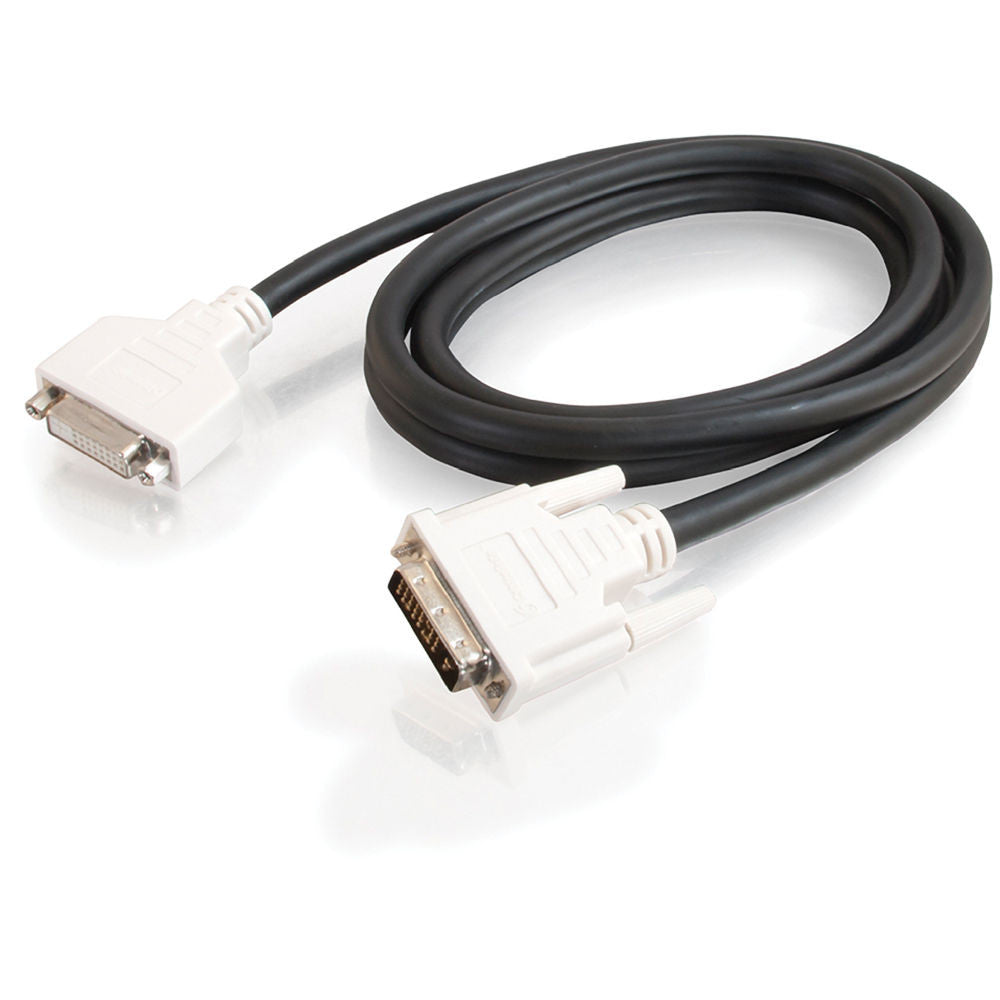

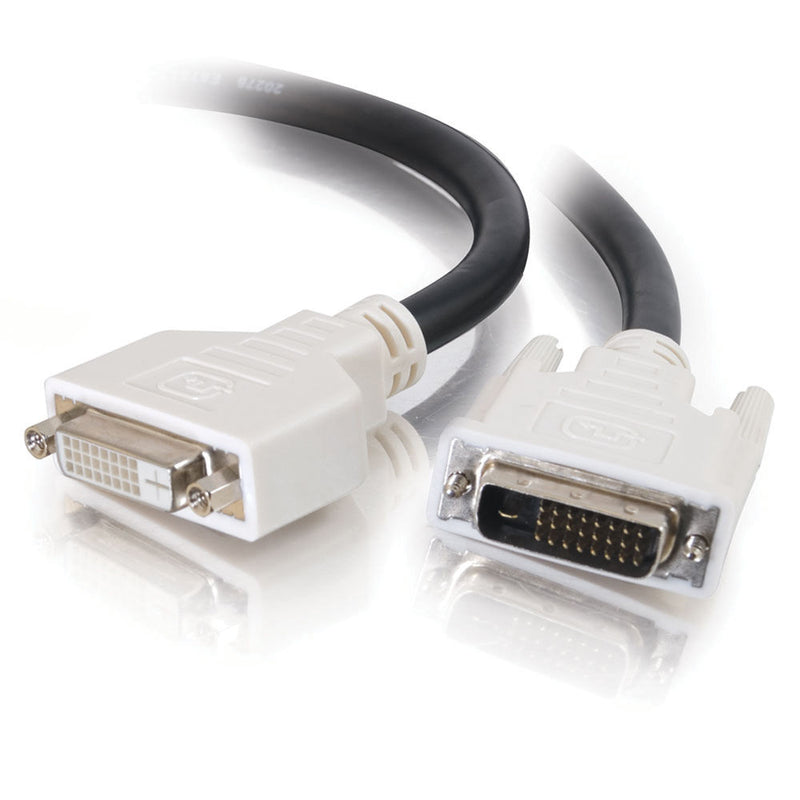

The 3.28' (1m) DVI-D Male-Female Dual Link Digital Video Extension Cable from C2G is fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). The DVI-D dual link configuration provides enough bandwidth for resolutions up to 2048 x 1536p and allows high-speed digital video transmission up to 9.9 Gbps. 28 AWG copper conductors are individually insulated in foam-polypropylene to minimize crosstalk, ensuring high-speed, error-free transmission.
Tri-shielded undermold with dual foil shield and braid shield protects against unwanted EMI/RFI interference. Gold-plated contacts provide full conductivity with no data loss. The PC and Mac compatible cable supports hot-plugging of DVI display devices.
- 3.28' (1m) length
- Bandwidth resolutions up to 2048 x 1536p
- 9.9 Gbps digital video transmission

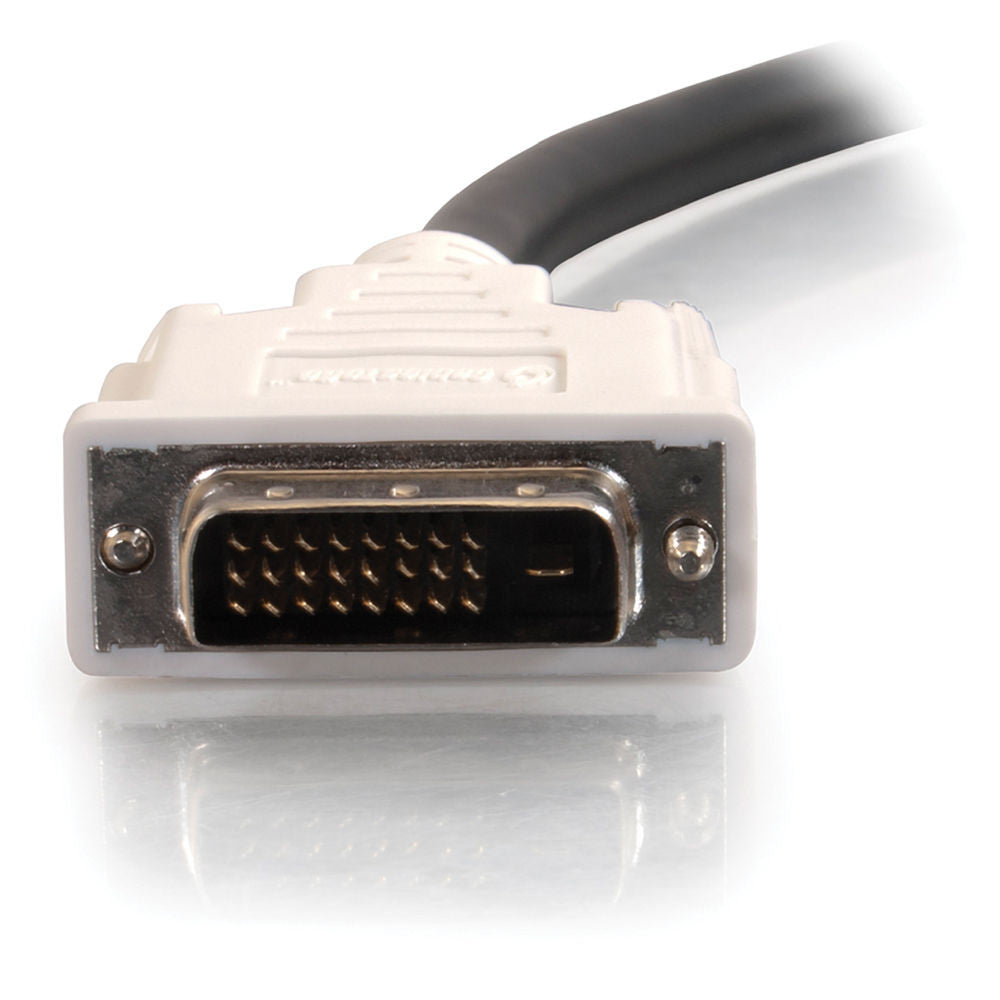

|Connector 1 ||DVI-D dual link male |

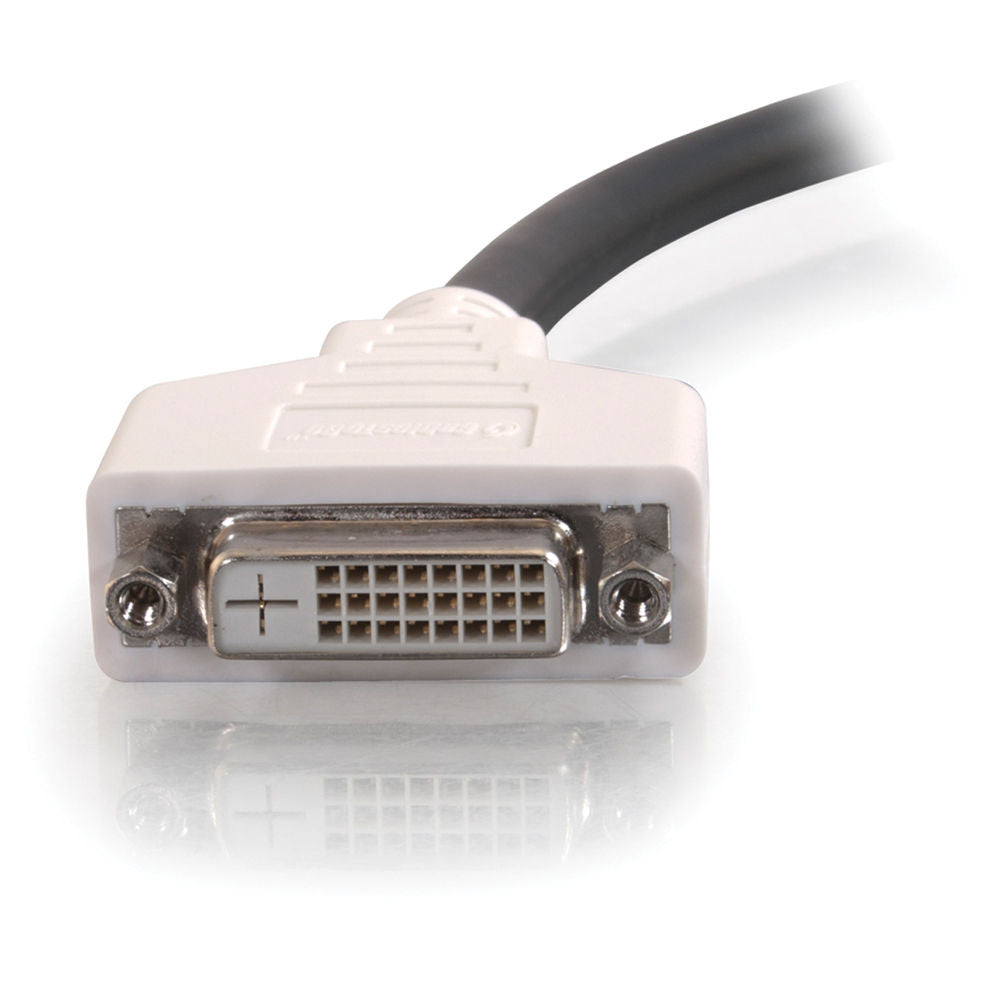

|Connector 2 ||DVI-D dual link female |
|Bandwidth ||2048 x 1536p |
|Transmission ||Digital Video: 9.9 Gbps |
|Length ||3.28' (1 m) |
|Weight ||0.39 lb (0.17 kg) |
| Packaging Info |
|Package Weight ||0.35 lb |
|Box Dimensions (LxWxH) ||11.0 x 5.8 x 1.9" |
In the Box
C2G 3.28' (1m) DVI-D Male-Female Dual Link Digital Video Extension Cable
