Description
Product Overview

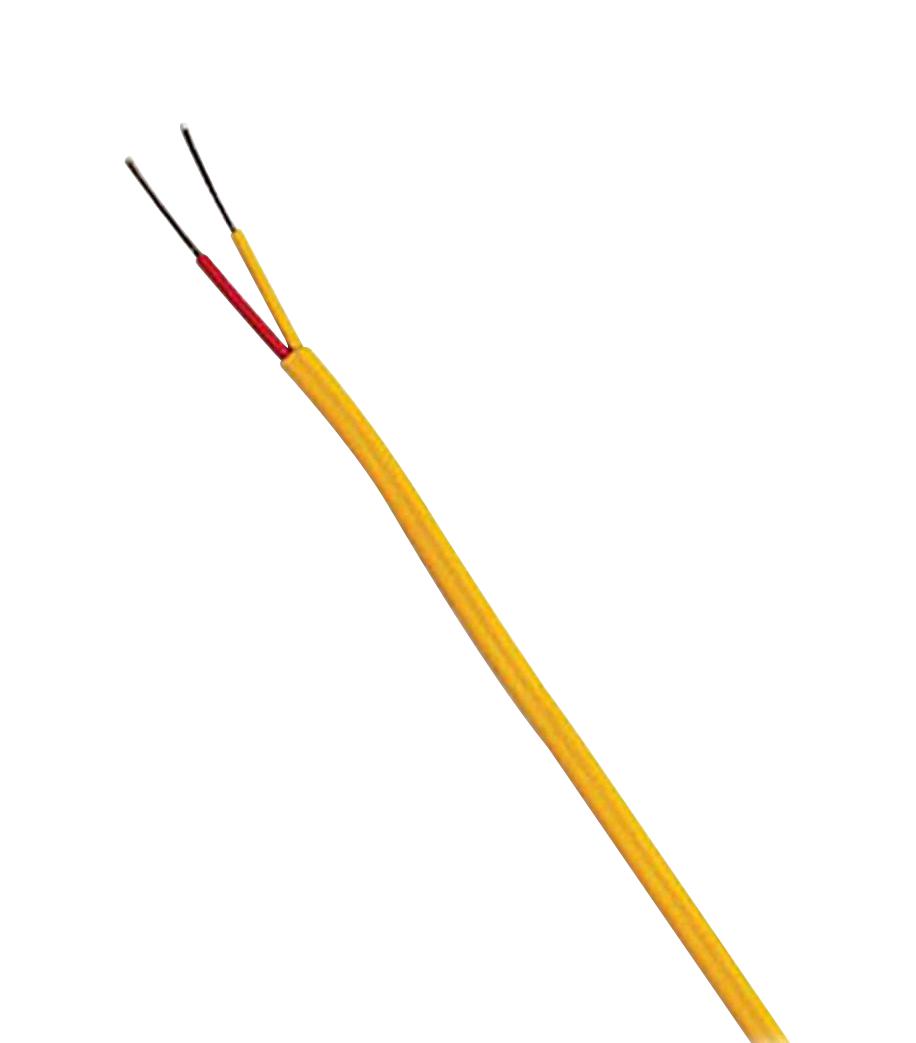

EXPP-K-20S-TWSH-UL-1000 is a UL listed twisted shielded extension grade thermocouple wire. It is ideal for systems sensitive to induced voltages and electrical noise. The wire conductor is insulated with color-coded PVC, then twisted with a tin/copper drain wire. Next, an aluminized polyester tape is wrapped around the wires, followed by a final layer of PVC coating. The wire is UL listed for power limited tray cable (PLTC) applications.
- UL listed Type PLTC, 300V; listed under UL subject 13, file E153789
- Extruded PVC single conductor and duplex insulation
- ANSI colour coded
- Aluminized polyester shield with drain wire reduces electrical noise
- Resistant to moisture, abrasion, chemicals and UV light
- 20S AWG, 0.97mm bare conductor diameter
- Overall nominal insulation thickness is 0.89mm
- Nominal overall size is 5.7mm
Product details
Other details
| Brand | OMEGA |
| Part Number | EXPP-K-20S-TWSH-UL-1000 |
| Quantity | 1000 Foot |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 185050.22 |
| 3-5 | ₹ 183161.96 |
| 5-10 | ₹ 179385.42 |
| 10+ | ₹ 175608.89 |
Bulk discount will be automatically applied during checkout based on quantity.
