INFINEON NBT2000A8K0T4KITV1TOBO1 Evaluation Kit, NBT2000, 13.56MHz, NFC I2C Bridge Tag NBT2000A8K0T4KIT, SP006048607

NBT2000A8K0T4KITV1TOBO1 is a NFC I2C bridge tag evaluation kit including PSoC� host MCU board. The OPTIGA� Authenticate NBT Development Kit is ideal for quick and simple evaluation of OPTIGA� Authenticate NBT using the reference use cases available through GitHub. It also simplifies the development of custom applications using PSoC� host MCUs based on the reference applications. After detaching the adapter board, the shield may also be used separately for evaluation and application development using MCU boards other than PSoC�.

• Bundled pre-tuned Class 6 antenna, antenna matching guide and build, load, execute use cases
• Easy adaptable reference use cases, ready for embedded applications, fully supported NFC Type 4 tag
• Preloaded chip-unique certificates, configure via NFC & I2C interfaces
• Global Platform T=1' I2C protocol
• Accelerated application development, PSoC� prototyping board included
• Class 5 & Class 6 PCB antenna, highly customizable shield design
• Easy integration with different MCU, reference applications on GitHub
• Applications for PSoC� platform and host libraries in C, Java and Swift

Contents

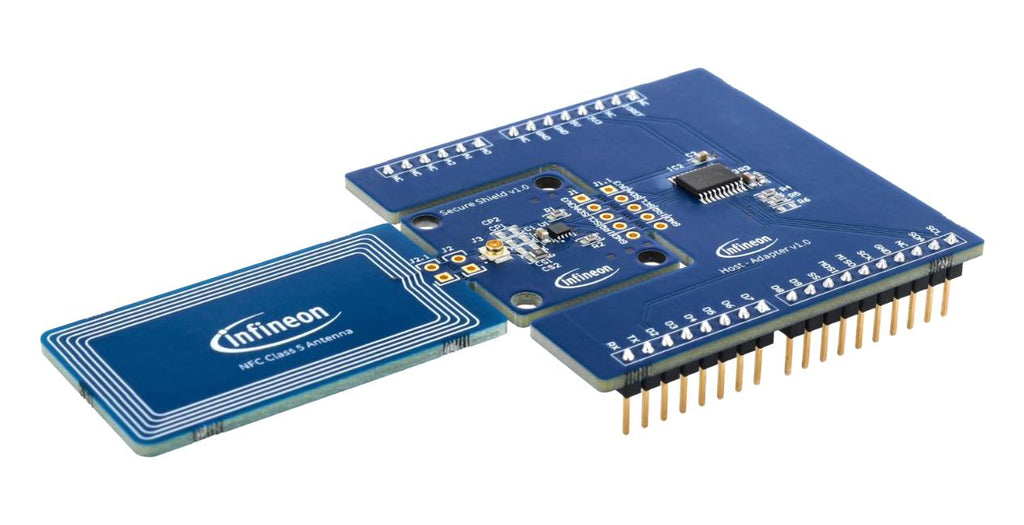

OPTIGA� Authenticate NBT shield, Host MCU board adapter (for CY8CPROTO-062S2, connected to the OPTIGA� Authenticate NBT Shield per default), PSoC� 62S2 Wi-Fi BT prototyping kit (CY8CPROTO-062S2-43439), Additional accessories (Class 6 shield antenna, Cables: UMCC antenna cable, five-pin jumper cable and micro USB cable).
