Description
Product Overview

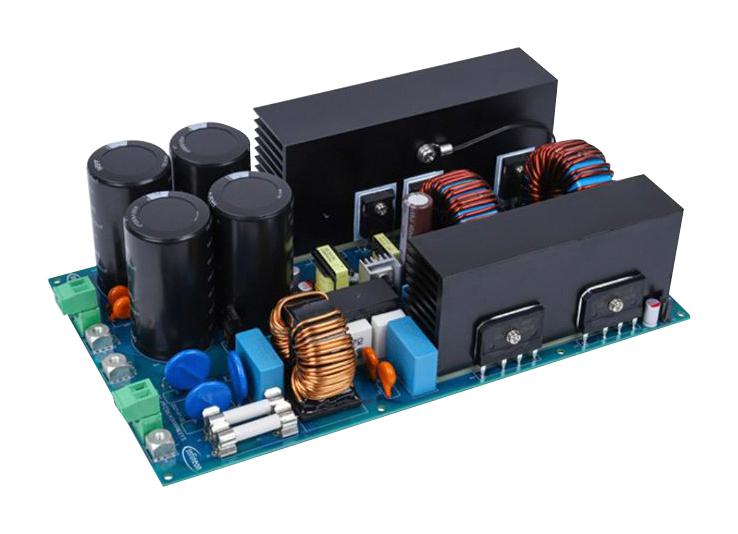

EVALPFC5KIKWWR6SYSTOBO1 is an evaluation board for 650 V TRENCHSTOP� 5 WR6 IGBT for Aircon & EV charger applications. Evaluation board for TRENCHSTOP� 5 WR6 IGBT with the new TO-247-3 high creepage and clearance package (IKWH40N65WR6), Gate driver IC (1ED44175) and Rapid 1 diode (IDW60C65D1). The evaluation board is a fast switching, analogue-controlled two-channel interleaved 5KW PFC converter. Typical applications include commercial HVAC, residential air conditioning: Smart (IoT) and efficient cooling.
- Interleaving operation
- Adjustable switching frequency
- Continuous conduction mode
- Average current control
- Cycle-by-cycle peak current limiting
- Thermal shutdown feature for power semiconductors
- Achieve twice the fsw and half the ripple current effect than standard boost PFC
- Smaller EMI filter, high efficiency up to 97.8% can be achieved
- Lower inductor current ripple than single PFC operation
- Zero inductor current ripple at 50% duty cycle
Product details
Other details
| Brand | INFINEON |
| Part Number | EVALPFC5KIKWWR6SYSTOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
