ANALOG DEVICES EVAL-ADBMS2950-BASIC Evaluation Board, ADBMS2950B, Battery Pack Monitor, isoSPI DuraClik Cable

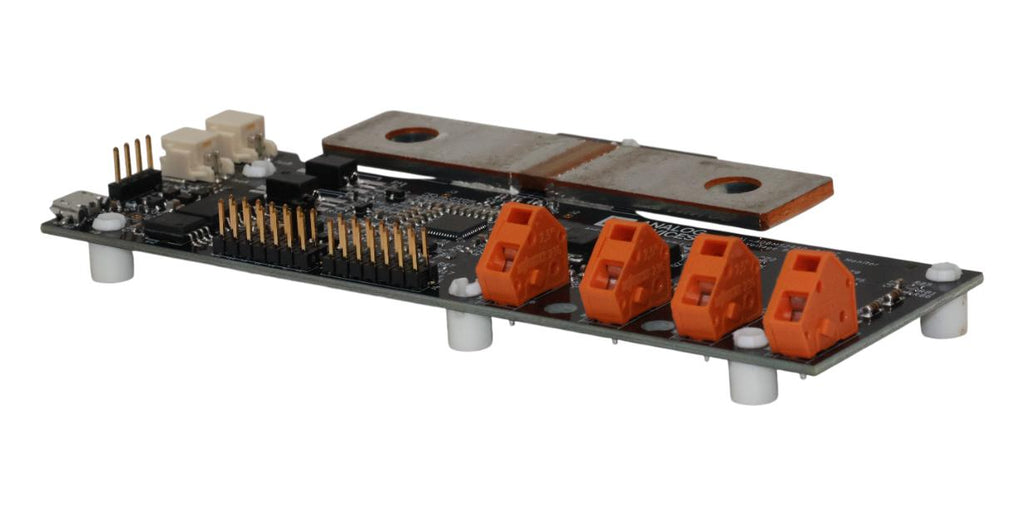

EVAL-ADBMS2950-BASIC is an evaluation board for the ADBMS2950B battery pack monitor. This a bidirectional current monitor with 12 buffered high-impedance voltage sense inputs, linked through a 2-wire isolated serial interface (isoSPI). The demo circuit also features reversible isoSPI, which enables a redundant communication path. The EVAL-ADBMS2950B can communicate to a PC over isoSPI by attaching a EVAL-ADBMS6822 dual-controller isoSPI add-on board to the expansion headers of a EVAL-SDP-CK1Z, and then connecting the EVAL-SDP-CK1Z to a host PC through USB. The EVAL-ADBMS2950B evaluation board can be operated on the same isoSPI daisy chain with other ADBMS2950B, and ADBMS6830B devices. Suitable for mobile robot systems, E-scooter/E-bikes/Light electric vehicle, power tools, portable-energy storage system, backup-battery system monitoring and grid energy storage applications.

• Fully-featured evaluation board for the ADBMS2950B
• Bidirectional high-accuracy current measurement with on board shunt
• Increased input-range overcurrent measurement and alert: battery stack measurements
• Battery stack voltage monitoring and isolation measurement
• Precharge monitoring, fuse monitoring, charger monitoring and link voltage monitoring
• Two isoSPI ports for daisy chain and reversible isoSPI support
• isoSPI connections can be done through simple DuraClick� connectors
