| ₹ 281103.65 includes GST and import duties. | |
| B2B customers can avail ₹ 42868.31 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

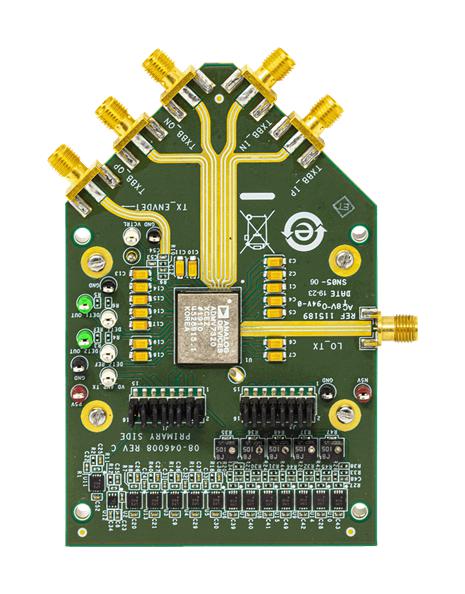

ADMV7320-EVALZ is an evaluation board to evaluate the ADMV7320 81GHz to 86GHz, E-Band upconverter SiP. The ADMV7320-EVALZ evaluation board incorporates the ADMV7320 with low dropout (LDO) regulators, potentiometers and a waveguide back plate to allow quick and easy evaluation of the ADMV7320. The LDO regulators allow the ADMV7320 to be powered on by ±5VDC supplies. Potentiometers allow gates tuning for various gain range. The ADMV7320 is a fully integrated system in package (SiP) inphase/quadrature (I/Q) upconverter that operates from 81GHz to 86GHz.
- Simple power-up with on-board LDO regulators
- Gain tuning and devices bias adjustment with potentiometers
- Option to bypass LDO regulators with connector jumpers
Contents
ADMV7320-EVALZ evaluation board, Connector jumpers.
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | ADMV7320-EVALZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 275481.58 |
| 3-5 | ₹ 272670.54 |
| 5-10 | ₹ 267048.47 |
| 10+ | ₹ 261426.39 |
Bulk discount will be automatically applied during checkout based on quantity.
