Description
Product Overview

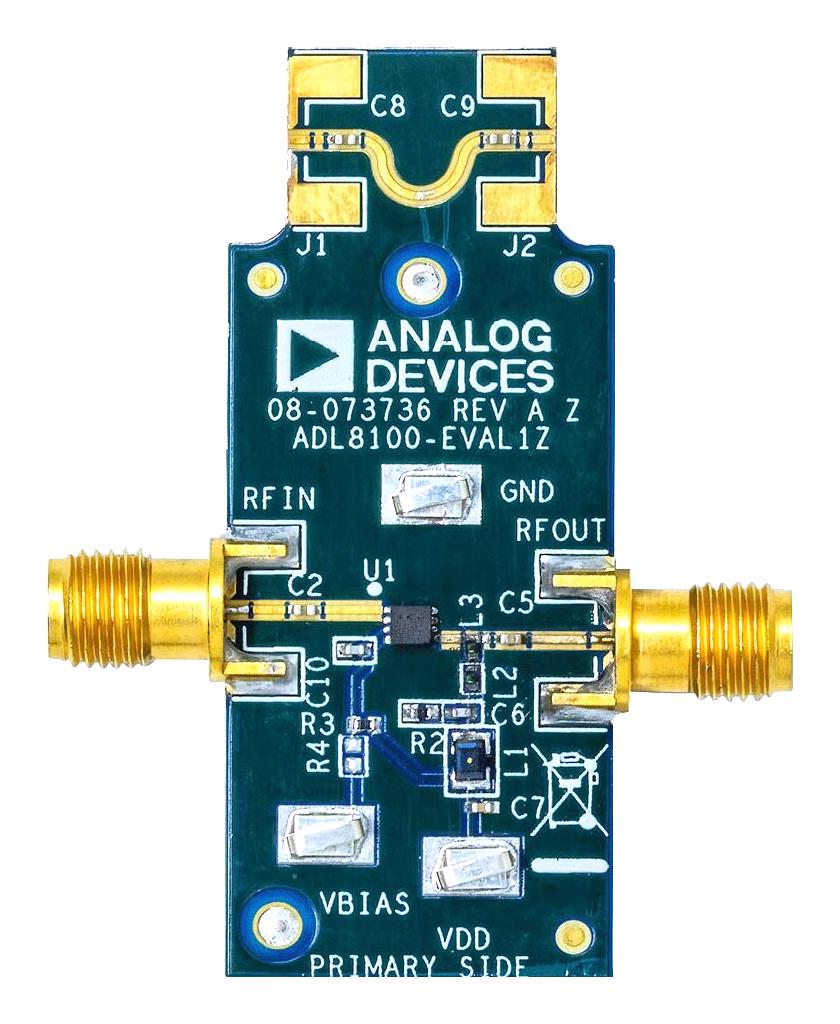

ADL8100-EVAL1Z is an ADL8100 evaluation board with Bias Tee (ADL8100ACPZN-EVAL1Z). This is a 2-layer printed circuit boards (PCB) fabricated from 10mil thick, Rogers 4350B, copper clad, mounted to an aluminium heat spreader. The heat spreader assists in providing thermal relief to the device as well as mechanical support to the PCB. Mounting holes on the heat spreader allow attachment to larger heat sinks for improved thermal management.
- 2-layer Rogers 4350B evaluation boards with heat spreaders
- End launch, 2.9mm RF connectors
- Through calibration path (depopulated connectors)
- Populated with components suitable for use over the entire -40°C to +85°C temperature range
- Power voltages and ground path are accessed through SMT test points
- Has an on-board SMT bias tee
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | ADL8100-EVAL1Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 99056.74 |
| 3-5 | ₹ 98045.96 |
| 5-10 | ₹ 96024.39 |
| 10+ | ₹ 94002.83 |
Bulk discount will be automatically applied during checkout based on quantity.
