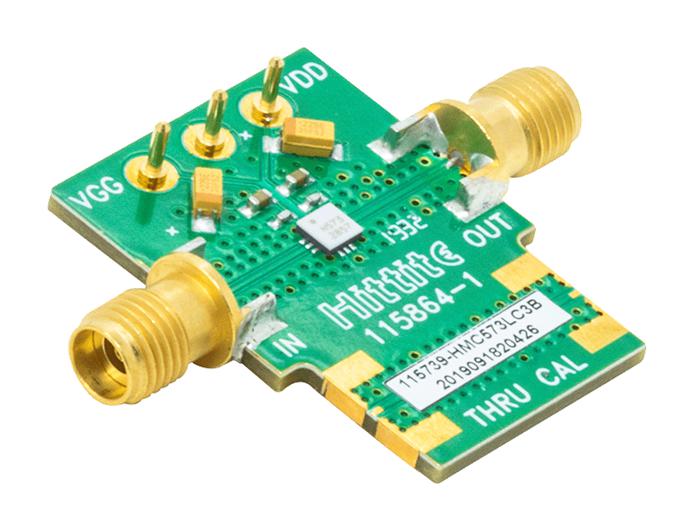

ANALOG DEVICES 115739-HMC573LC3B Evaluation Board, HMC573LC3B, 8GHz to 22GHz, GaAs, PHEMT, Active Frequency Multiplier

115739-HMC573LC3B is an evaluation board for HMC573LC3B SMT GaAs MMIC x2 active frequency multiplier. The HMC573LC3B is a x2 active broadband frequency multiplier utilizing GaAs PHEMT technology in a SMT package. When driven by a +5dBm signal, the multiplier provides +12dBm typical output power from 8 to 22GHz. The Fo and 3Fo isolations are >20dBc and >25dBc respectively at 16GHz. The HMC573LC3B is ideal for use in LO multiplier chains for Pt-to-Pt & VSAT Radios yielding reduced parts count vs. traditional approaches. The low additive SSB Phase Noise of -134dBc/Hz at 100KHz offset helps maintain good system noise performance. The HMC573LC3B is suitable for clock generation applications SONET OC-192 & SDH STM-64 point-to-point & VSAT radios, test instrumentation and military & space.

• Low input power drive range from 0 to +6dBm
• Single supply of +5V at 92mA
