Description
Product Overview

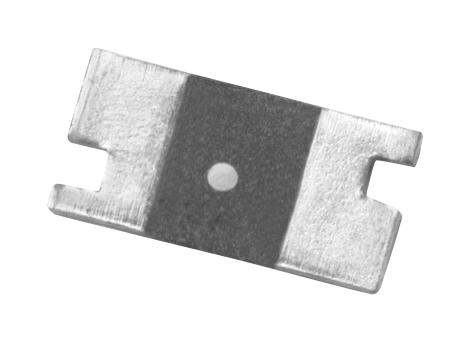

The CSM series surface-mount high precision current sensing metal strip Power Resistor with Bulk Metal® technology. It offers proprietary processing techniques produce low TCR, tight tolerance and improve stability.
- Solderable terminations
- Lead-free, tin/lead alloy terminal finishes available
- 1 to 3W Power rating
- 1 to 200m? Resistance range
- Load life stability to ±0.2% (70°C, 2000hrs at rated power)
- ±0.1% Short time overload
- 3µV/°C Thermal EMF (DC offset error, significant for low values)
- Up to 54A maximum current
- <lt/>5nH Low inductance
- Excellent frequency response to 50MHz
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Other details
| Brand | VPG FOIL RESISTORS |
| Part Number | Y14870R10000B9R |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
