Description
Product Overview

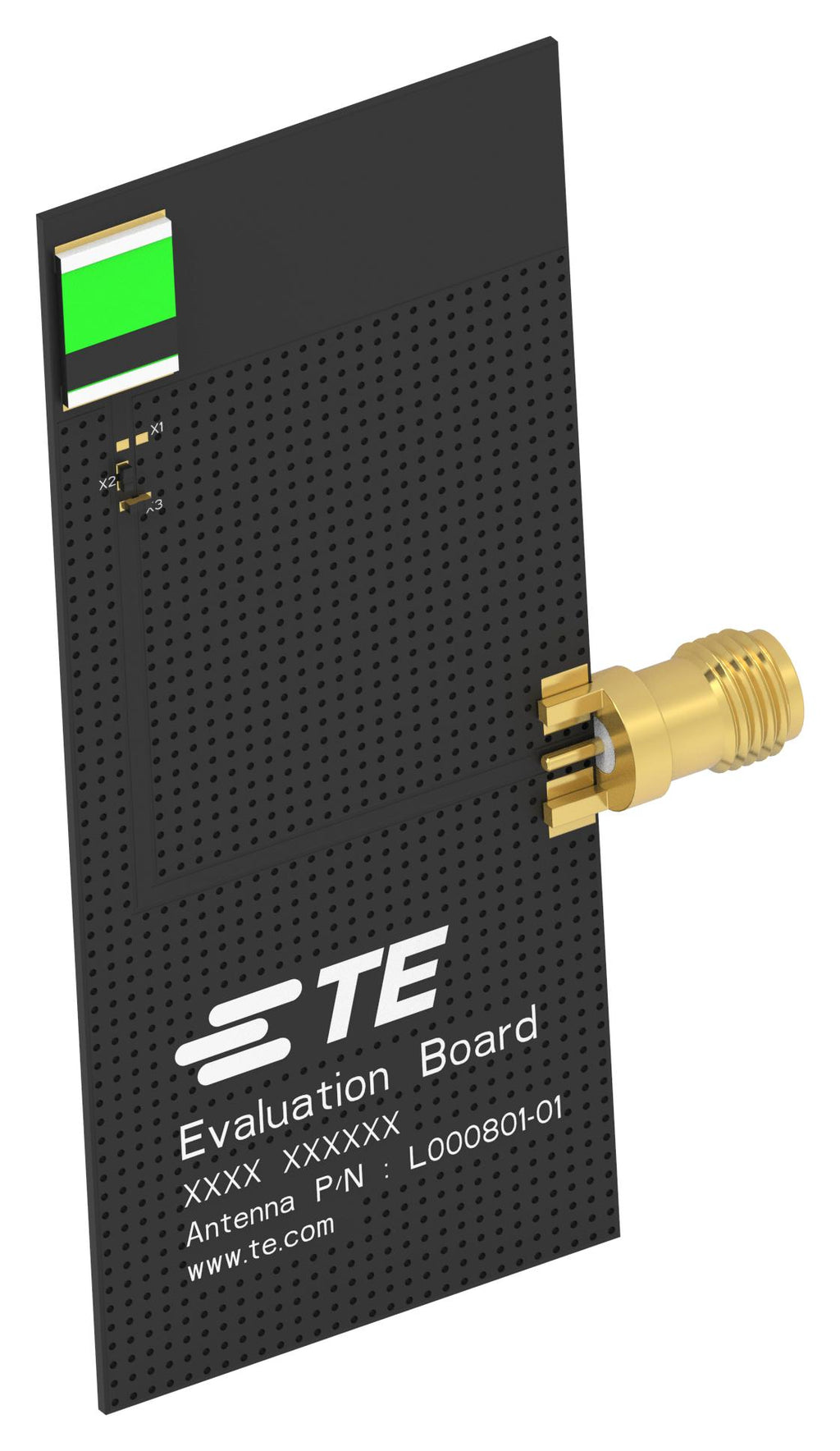

L000801-80 is a UWB ceramic chip antenna with EVB assembly.
- SMA antenna termination, single port configuration
- Wide band type, internal/embedded mounting location?
- Passive antenna operation, <3:1 VSWR (max), 50 ohm impedance
- 3 < 6dBi peak gain, 1.8dB maximum gain
- 3500 � 8500MHz frequency band
- Printed circuit board mounting type, linear polarization
- Product width?: 64mm, product length?: 28mm, product height?: 1.28mm
- Omnidirectional antenna
- Operating temperature range from -40 to +125°C
- 10Watt cw power handling
Product details
Other details
| Brand | TE CONNECTIVITY |
| Part Number | L000801-80 |
| Quantity | Each |
| Technical Data Sheet EN |  |
