Description
Product Overview

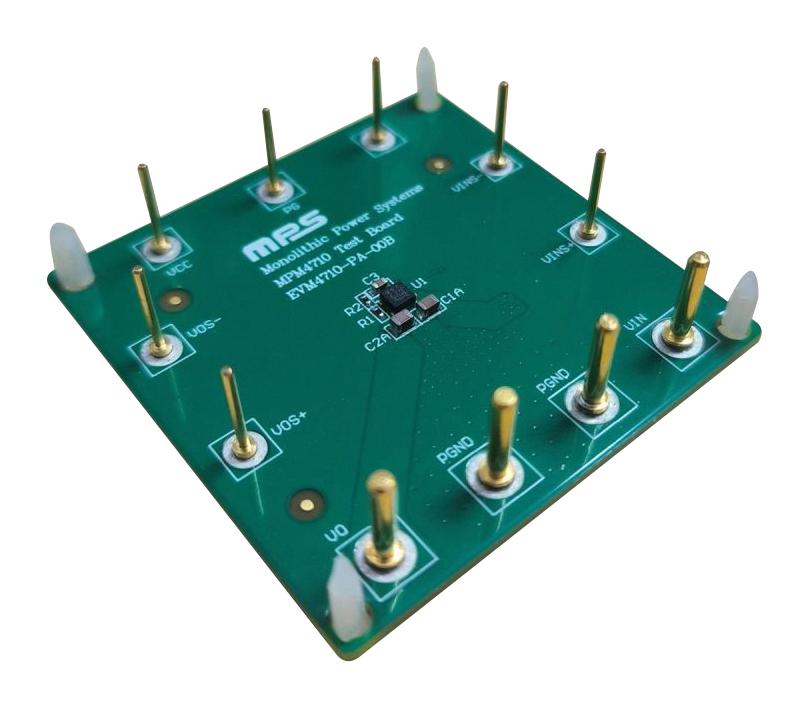

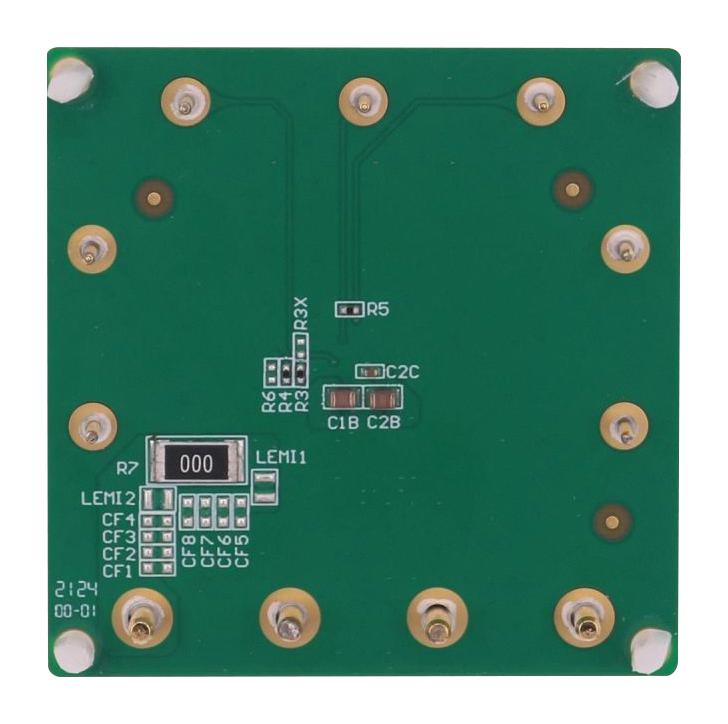

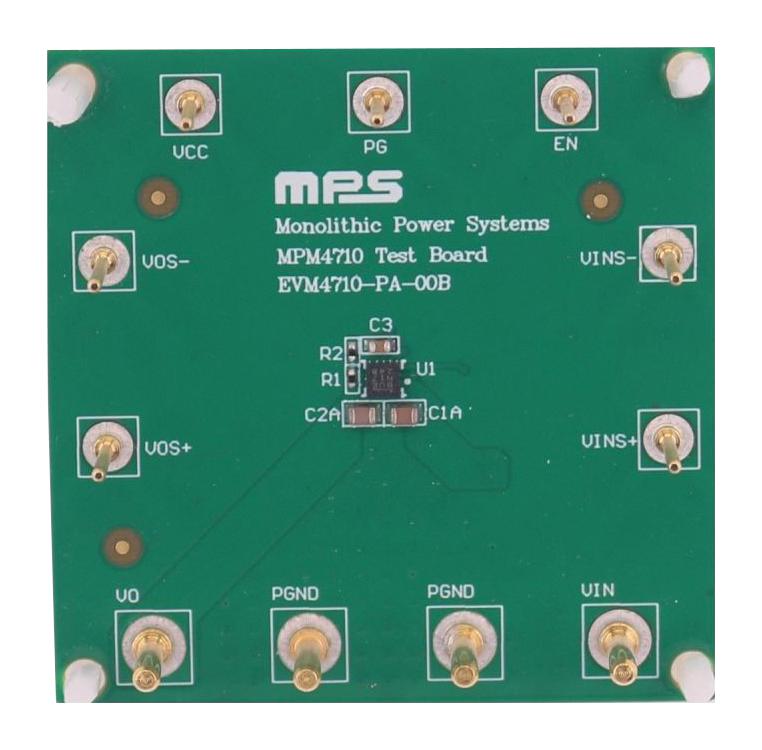

EVM4710-PA-00B is an evaluation board designed to demonstrate the capabilities of the MPM4710, a high-efficiency, buck-boost power module with an integrated inductor. The fixed 2MHz switching frequency (fSW) enables the use of small external components, and the internal compensation and soft start (SS) minimize the external component count. The MPM4710 uses current mode control with a fixed pulse-width modulation (PWM) frequency for optimal stability and transient response.
- 1.8V to 5.5V input voltage (VIN) range at start-up through VIN
- 1.2V to 5.5V input voltage (VIN) range at steady state
- 1A maximum output current (IOUT) at VIN = 2.5V to 5.5V
- 91.4% typical efficiency at VIN = 3.3V, VOUT = 3.3V, IOUT = 1A
- 2MHz switching frequency (fSW) at Vin=5V
Notes
MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Product details
Other details
| Brand | MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number | EVM4710-PA-00B |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3407.96 |
| 3-5 | ₹ 3373.18 |
| 5-10 | ₹ 3303.63 |
| 10+ | ₹ 3234.08 |
Bulk discount will be automatically applied during checkout based on quantity.
