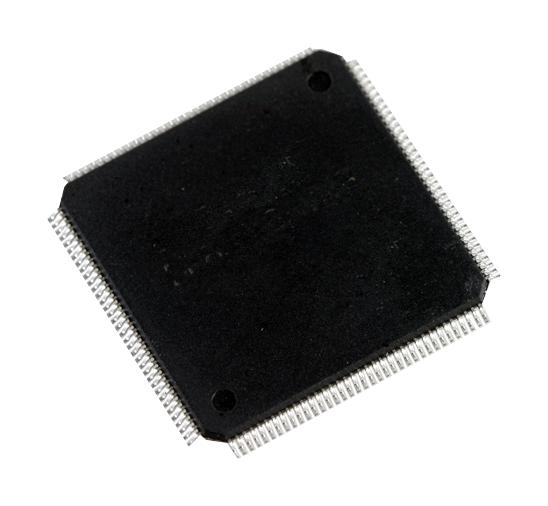

MICROCHIP PIC32MZ2048ECH144-I/PL 32 Bit Microcontroller, PIC32 Family PIC32MZEC Series Microcontrollers, PIC32, 32 bit, 200 MHz

PIC32MZ embedded connectivity (EC) family 32bit microcontroller. Supported by C/C++ compiler with native DSP/fractional support, MPLAB® harmony integrated software framework, TCP/IP, USB, Graphics, and mTouch� middleware, MFi, Android� and Bluetooth® audio frameworks, RTOS Kernels: Express Logic ThreadX, FreeRTOS�, OPENRTOS®, Micriµm® µC/OS�, and SEGGER embOS® software and tools support.

• 200MHz (up to 330 DMIPS) microAptiv� core, 2048KB program memory
• Programmable PLLs and oscillator clock sources, FSCM, WDT, DMT clock management
• Low-power modes (Sleep and Idle), integrated power-on reset and brown-out reset power management
• 50MHz EBI, 50MHz SQI and 10bit ADC module, temperature sensor with ±2°C accuracy
• High-speed (HS) communication interfaces (with dedicated DMA)
• Security features: peripheral and memory region access control
• DMA: eight channels with automatic data size detection and CRC
• Supports nine 16bit or up to four 32bit timers/counters, 9 OC, 9 IC modules and RTCC module
• In-circuit and in-application programming and non-intrusive hardware-based instruction trace
• Industrial temperature range from -40°C to +85°C
