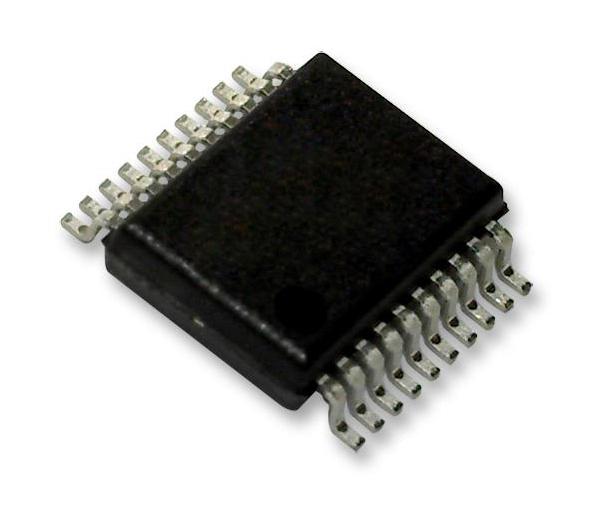

ANALOG DEVICES MAX3160EAP+ TXRX, RS232/422/485, 10MBPS, SSOP-20

MAX3160EAP+ is a RS-485 multiprotocol transceiver. Slew-rate limiting minimizes EMI and reduces reflections caused by improperly terminated cables, allowing error-free data transmission up to 250Kbps. Typical applications include point-of-sales equipment peripherals, industrial controls networking, RS-232 to RS-485, and interface converters.

• Integrated protection increases robustness, transmitter and receiver protected against wiring faults
• True fail-safe receiver prevents false transition on receiver input short or open
• Short-circuit protection over the entire common mode voltage range
• Thermal protection from excessive power dissipation
• Slew rate limiting minimizes EM and reduces cable reflections
• Integrated charge-pump circuitry saves board space
• VCC standby current is 1.2mA typ at no load, RS485/active-low RS232=GND
• VCC shutdown current is 1µA typ at active-low SHDN=GND, receiver inputs open or grounded
• 20 SSOP package
• Temperature rating range from -40°C to +85°C
