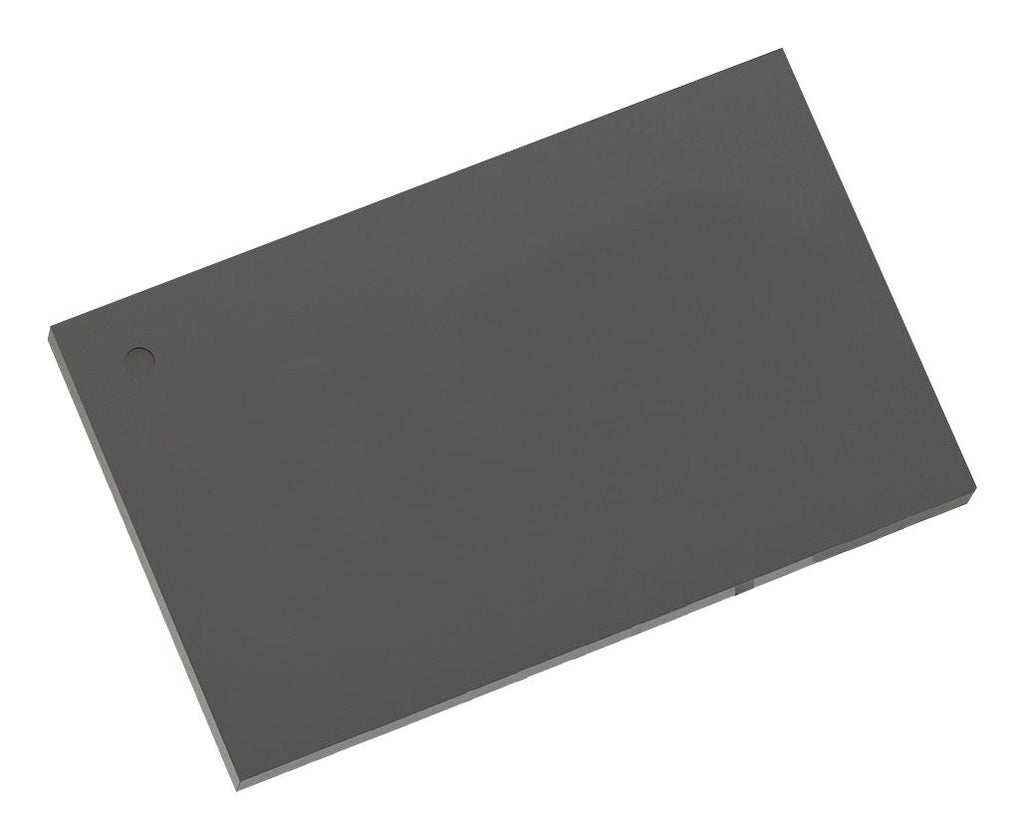

- Synchronous step-down switch-mode converter in 14 pin QFN package
- 40µA quiescent current
- 90mohm/30mohm high side/low side RDS(ON) for internal power MOSFETs
- Power good indicator
- Programmable soft-start time
- Selectable forced PWM or auto PFM/PWM mode
- Programmable switching frequency
- Short circuit protection with hiccup mode
- Full protection include short circuit/overcurrent/undervoltage protection and thermal shutdown
- Constant on-time control provides fast transient response, easy loop design, tight output regulation
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP2316GD-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
