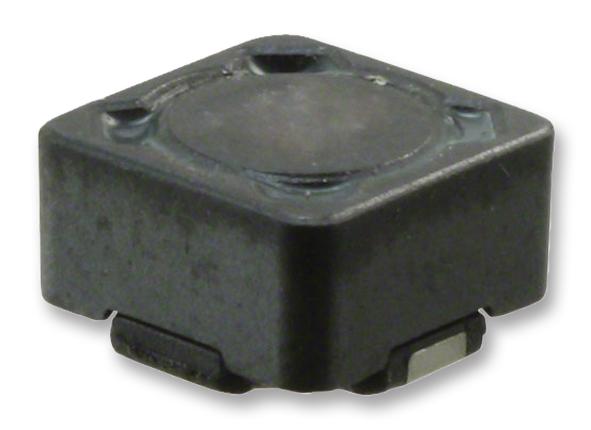

This is a 744777001 Power Inductor (SMD) , 1 µH, 6.84 A, Shielded, 10.2 A, WE-PD Series, 7.3mm x 7.3mm x 4.5mm product from WURTH ELEKTRONIK with the model number 744777001
Product details
| Inductance |
1µH |
| RMS Current (Irms) |
6.84A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
10.2A |
| Product Range |
WE-PD Series |
| Power Inductor Case |
7.3mm x 7.3mm x 4.5mm |
| DC Resistance Max |
0.01ohm |
| Inductance Tolerance |
-20% to +40% |
Other details
| Brand |
WURTH ELEKTRONIK |
| Part Number |
744777001 |
| Quantity |
Each (Supplied on Cut Tape) |
| Product Change Notice EN |
 |
| Drawing EN |
|
