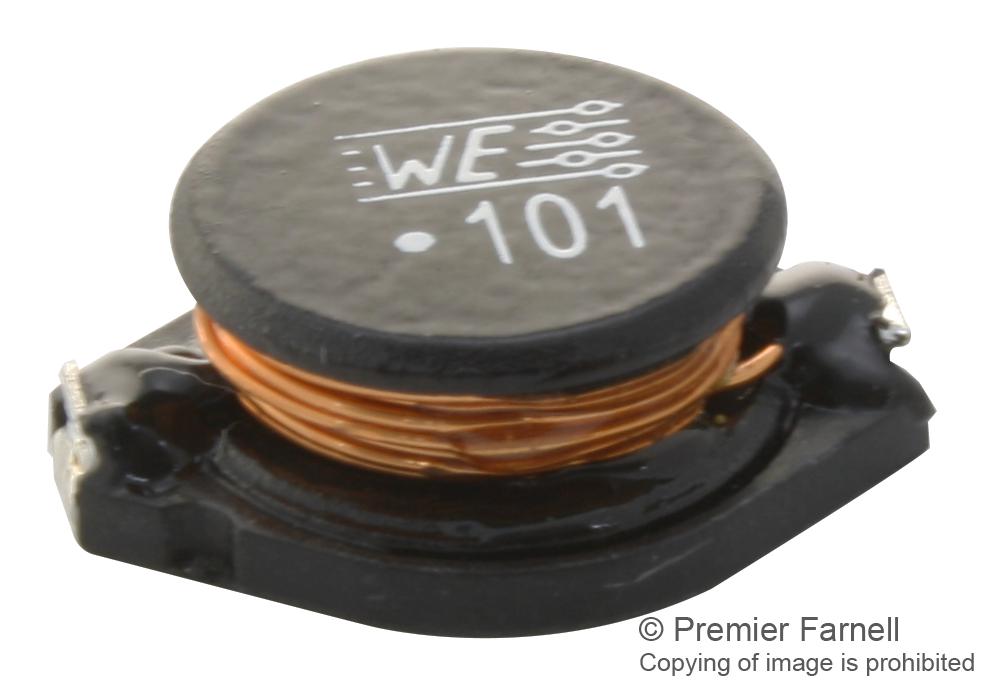

This is a Power Inductor (SMD), 100 µH, 1.8 A, 3.4 A, WE-PD4 Series, 18.54mm x 15.24mm x 7.11mm, Unshielded product from WURTH ELEKTRONIK with the model number 7445820
Product details
| Inductance |
100µH |
| RMS Current (Irms) |
1.8A |
| Saturation Current (Isat) |
3.4A |
| Product Range |
WE-PD4 Series |
| Power Inductor Case |
18.54mm x 15.24mm x 7.11mm |
| Inductor Construction |
Unshielded |
| DC Resistance Max |
0.19ohm |
| Inductance Tolerance |
± 20% |
| Packaging |
Cut Tape |
Other details
| Brand |
WURTH ELEKTRONIK |
| Part Number |
7445820 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
