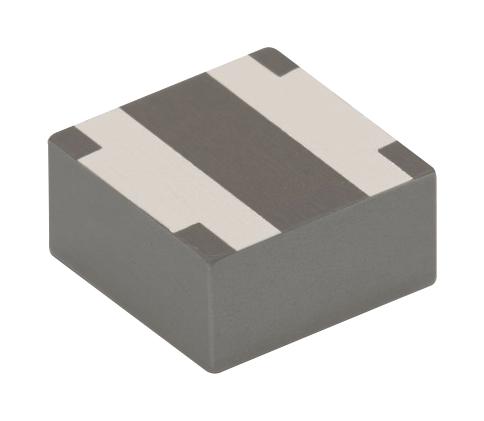

This is a Power Inductor (SMD), 10 µH, 2.7 A, Shielded, 4.6 A, WE-MAPI Series, 4.1mm x 4.1mm x 3.1mm product from WURTH ELEKTRONIK with the model number 74438357100
Product details
| Inductance |
10µH |
| RMS Current (Irms) |
2.7A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
4.6A |
| Product Range |
WE-MAPI Series |
| Power Inductor Case |
4.1mm x 4.1mm x 3.1mm |
| DC Resistance Max |
0.11ohm |
| Inductance Tolerance |
± 20% |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
WURTH ELEKTRONIK |
| Part Number |
74438357100 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
