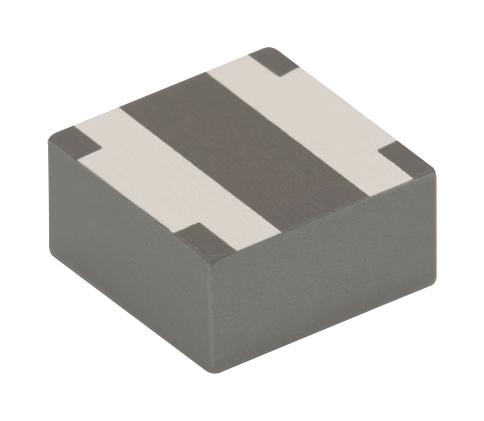

This is a Power Inductor (SMD), 1.5 µH, 6.2 A, Shielded, 8.5 A, WE-MAPI Series, 4.1mm x 4.1mm x 3.1mm product from WURTH ELEKTRONIK with the model number 74438357015
Product details
| Inductance |
1.5µH |
| RMS Current (Irms) |
6.2A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
8.5A |
| Product Range |
WE-MAPI Series |
| Power Inductor Case |
4.1mm x 4.1mm x 3.1mm |
| DC Resistance Max |
0.02ohm |
| Inductance Tolerance |
± 20% |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
WURTH ELEKTRONIK |
| Part Number |
74438357015 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
