Wurth Electronics WE-LHMI series is a SMD power inductor with high saturation current and compact design with high performance and space saving design. The WE-LHMI is distinguished by high nominal and saturation currents. A special iron powder mixture prevents the saturation of the core across the entire operating range. It also provides magnetic shielding, which reduces the leakage field to a minimum and even eliminates acoustic noise. Areas of application for the WE-LHMI series include DC/DC converters in high-current power supplies to power FPGAs, POL converters, motherboards, graphics cards and battery-operated equipment.
- Compact design
- Magnetically shielded
- High current capability
- Handles high transient current spikes
- No acoustic noise and low leakage field
- Frequency range up to 5MHz
- Operating temperature: -40?C to +125?C
Product details
| Inductance |
2.2?H |
| RMS Current (Irms) |
10A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
28A |
| Product Range |
WE-LHMI Series |
| Power Inductor Case |
11mm x 10mm x 3.8mm |
| DC Resistance Max |
0.007ohm |
| Inductance Tolerance |
? 20% |
Other details
| Brand |
WURTH ELEKTRONIK |
| Part Number |
74437368022 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
| CAD CadSoft_EAGLE EN |
|

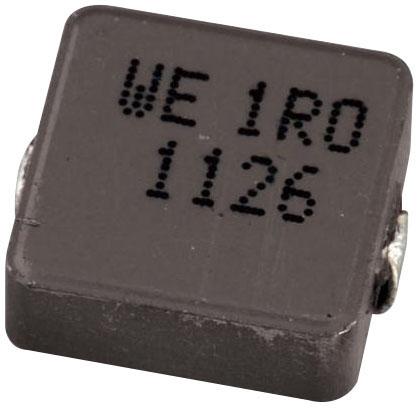

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
